Front Differential Bearing Race and Carrier Thrust Washer Removal

Front Differential Bearing Race and Carrier Thrust Washer Removal

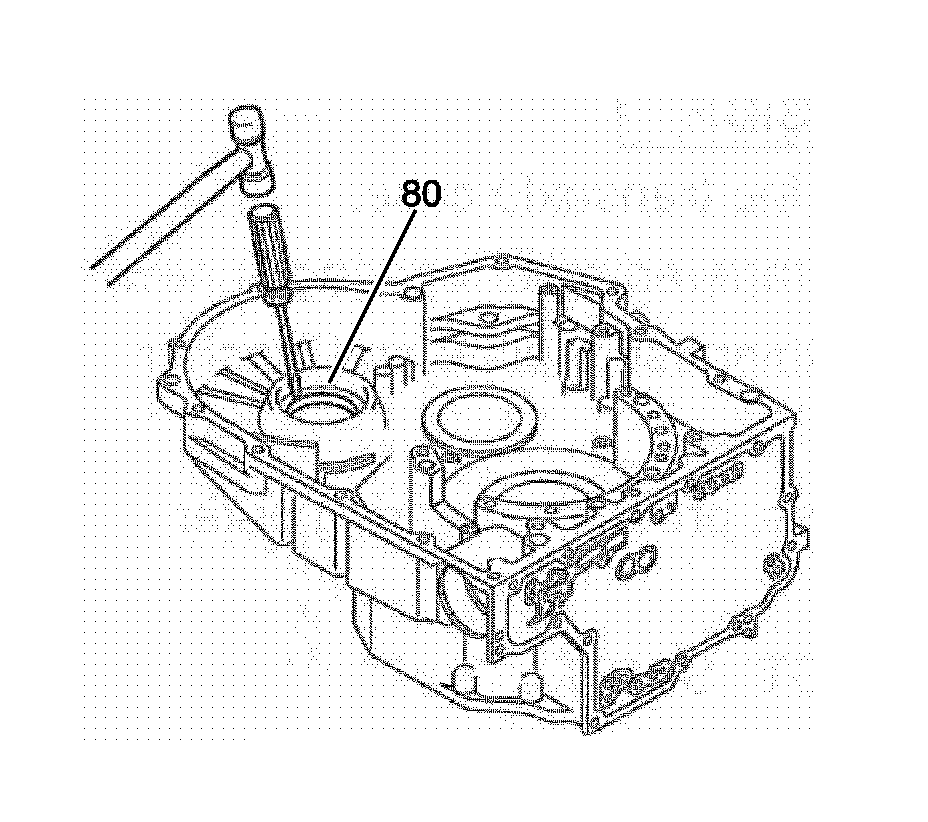

1. Using a hammer and screwdriver, remove the front wheel drive shaft oil seal (80).

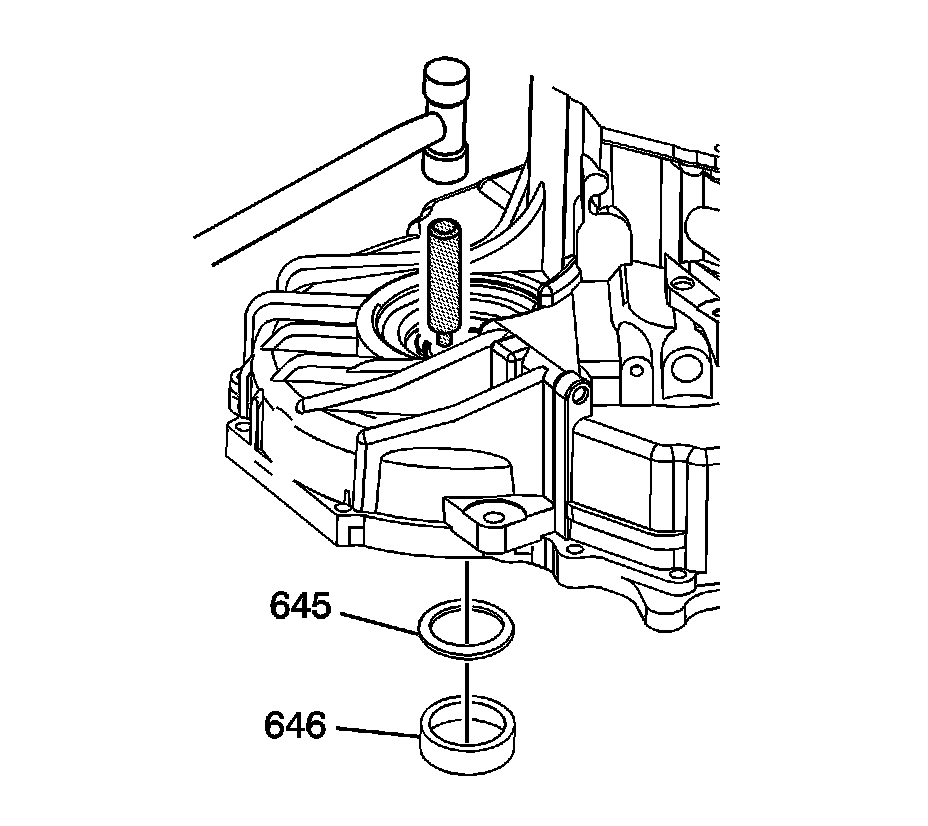

2. Using a brass drift pin, remove the front differential bearing race (646) and front differential carrier bearing shim (645).
