Front Differential Bearing Race and Carrier Thrust Washer Installation

Front Differential Bearing Race and Carrier Thrust Washer Installation

Special Tools
* DT 46415 - Driver
* EN 46342 - Driver Handle

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

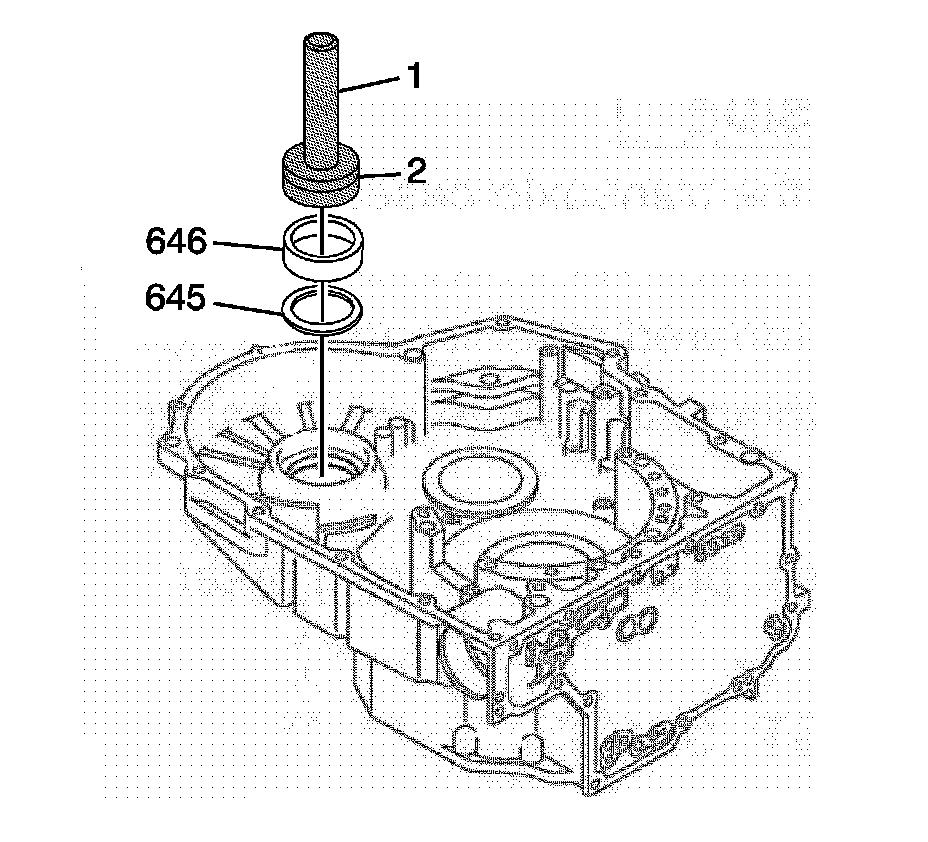

1. Install the front differential carrier bearing shim (645).
2. Using DT 46415 - driver (2) and EN 46342 - driver handle (1) install the front differential bearing race (646).
