Lube Apply Tube Installation




Lube Apply Tube Installation





Note: Be careful not to bend or damage the tube.

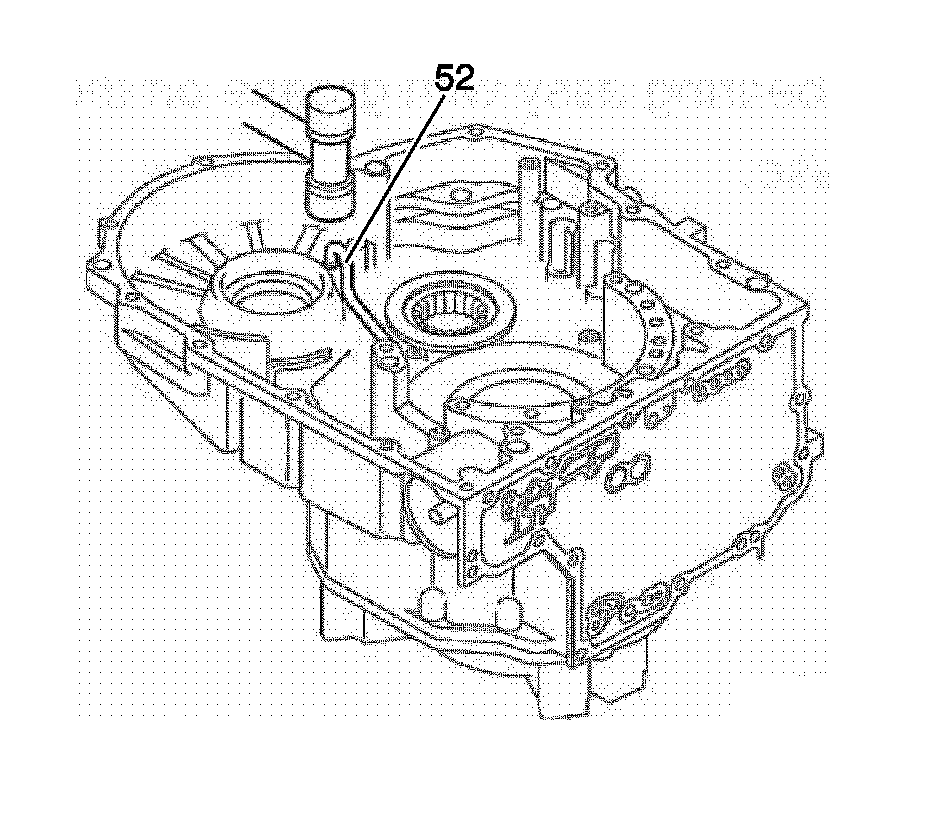

1. Using a plastic hammer, tap the apply tube (52) in the case.





Caution: Refer to Fastener Caution (Fastener Caution).

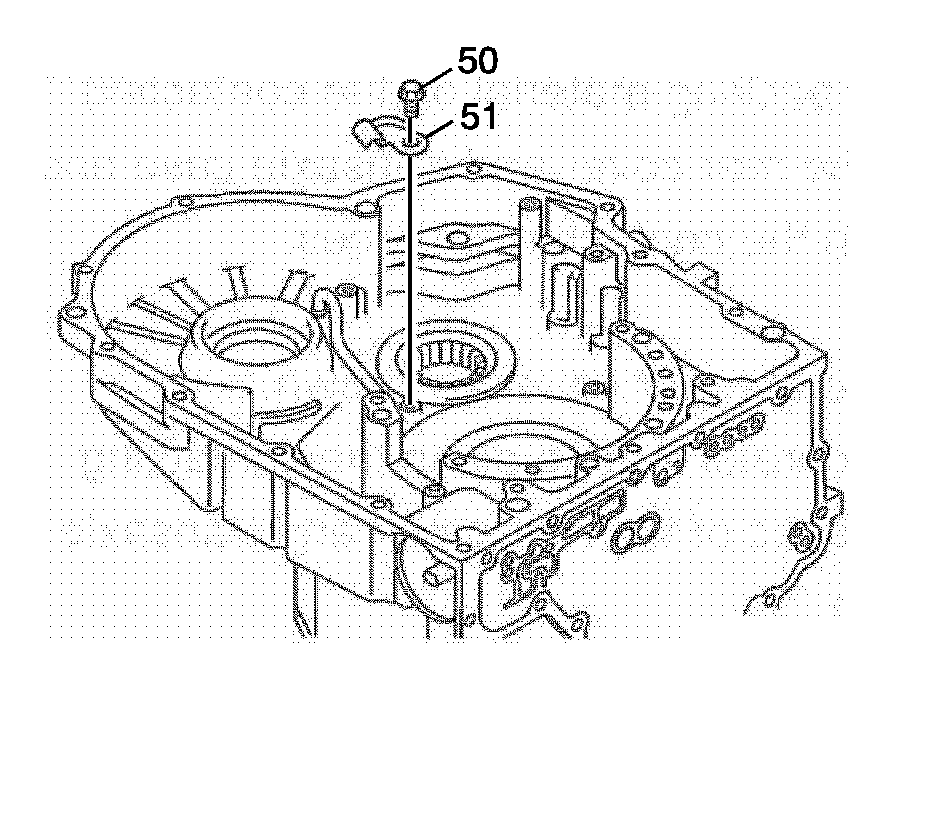

2. Install the apply tube retainer (51) and 1 apply tube retainer bolt (50). Tighten bolt to 5.4 Nm (48 lb in).
