Front Differential Transfer Drive Gear Cleaning and Inspection

Front Differential Transfer Drive Gear Cleaning and Inspection

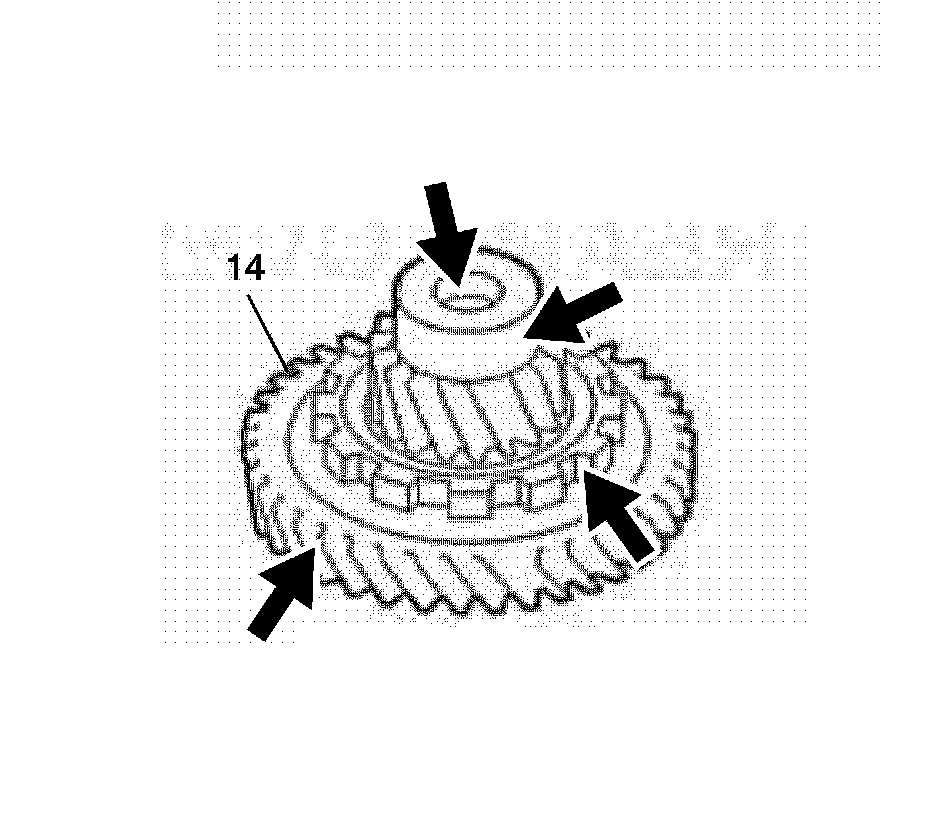

1. Clean the front differential transfer drive gear assembly (14) in solvent and air dry.
2. Inspect the gears for the following:

* Chipped teeth
* Metal debris embedded in the teeth
* Excessive wear
* Abnormal wear pattern

3. If any of the above conditions are found replace the front differential transfer drive gear assembly. This assembly is serviced only as a complete assembly.
