Front Differential Transfer Drive Gear Assembly Installation

Front Differential Transfer Drive Gear Assembly Installation

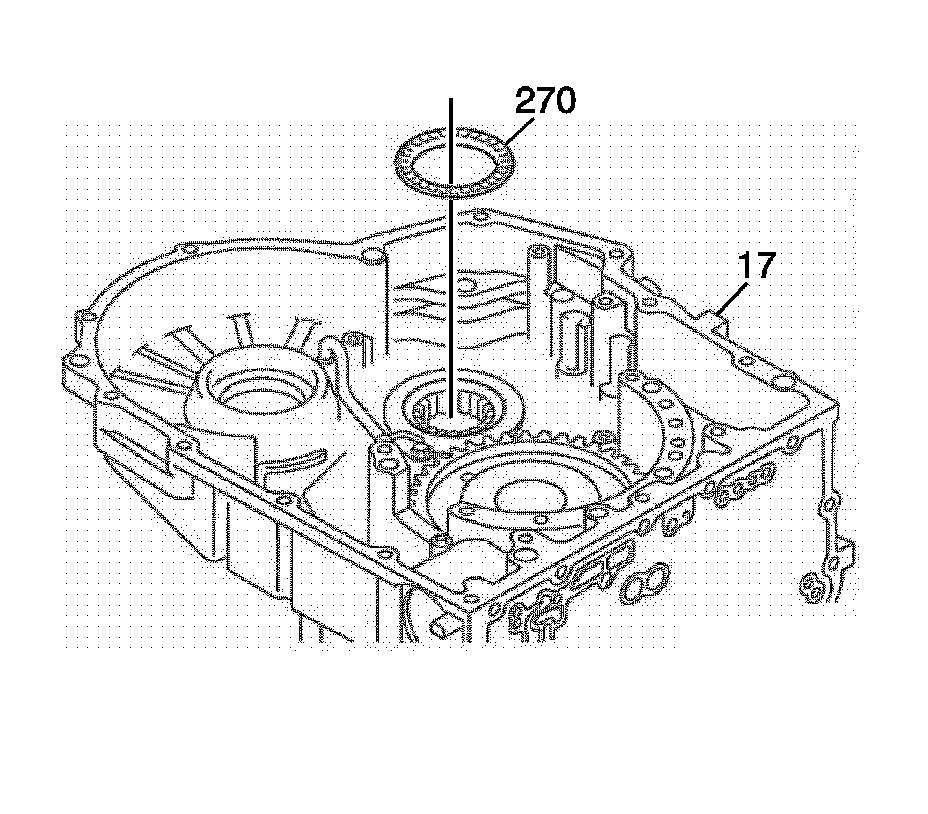

1. Install the front differential transfer drive gear rear thrust bearing assembly (270) to the transmission case assembly (17).

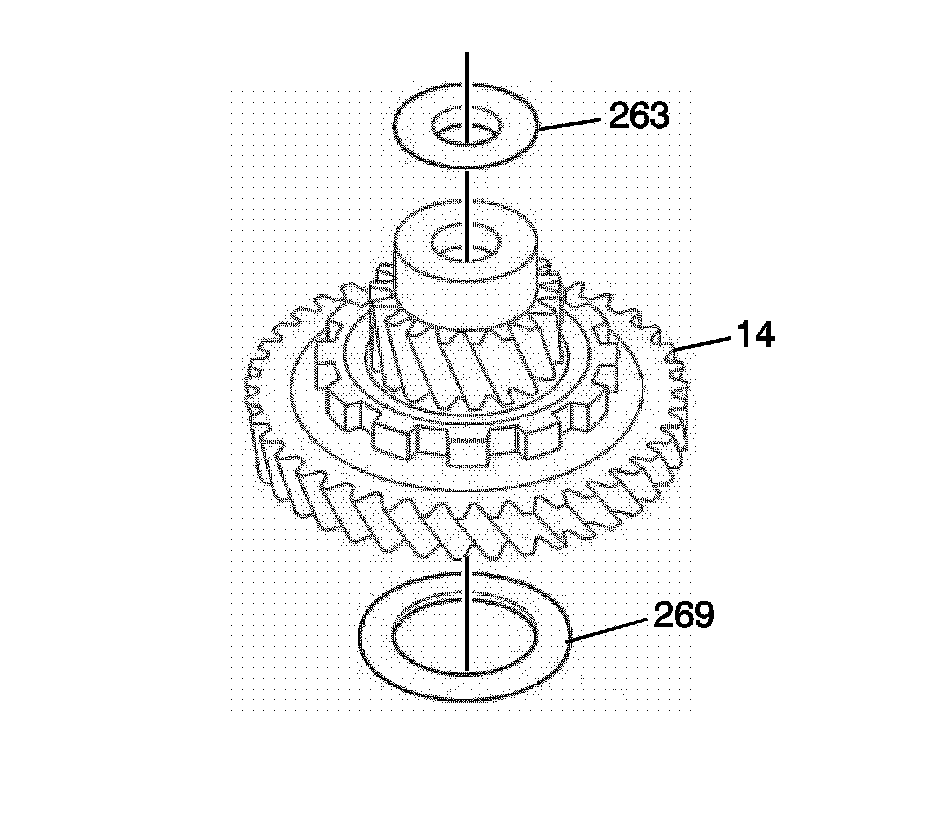

2. Install the front differential transfer drive gear front and rear thrust bearing races (263, 269) with grease on the front and rear side of the front differential transfer drive gear assembly (14).

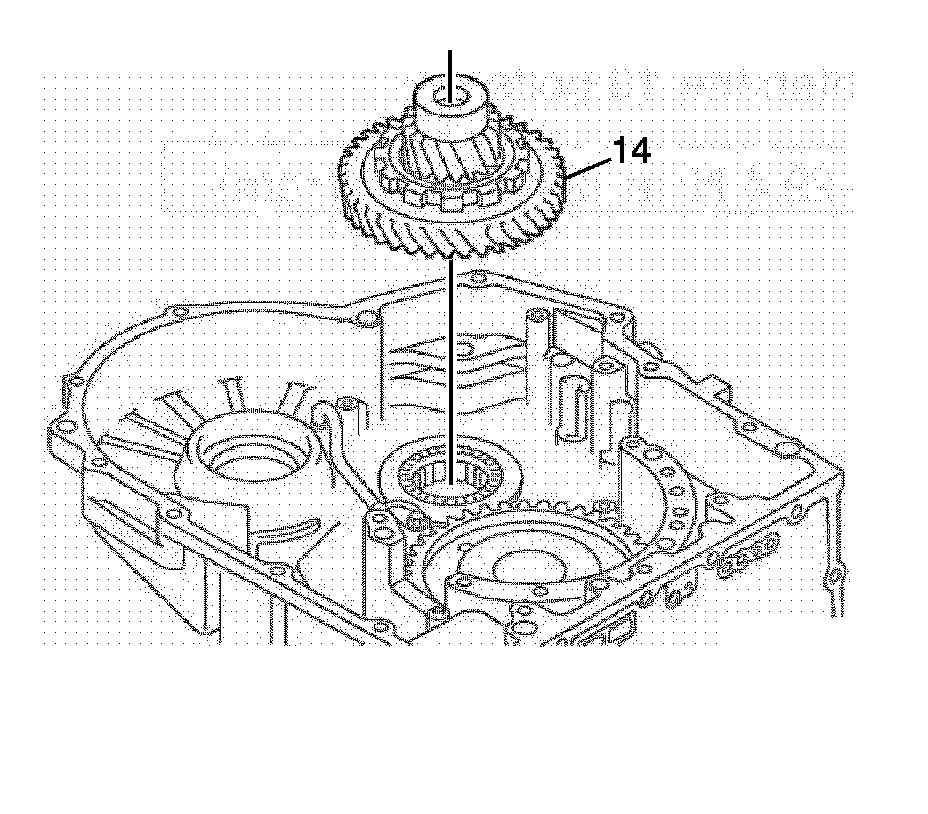

3. Install the front differential transfer drive gear assembly (14).
