Control Valve Body Disassemble - Rear Number 2

Control Valve Body Disassemble - Rear Number 2

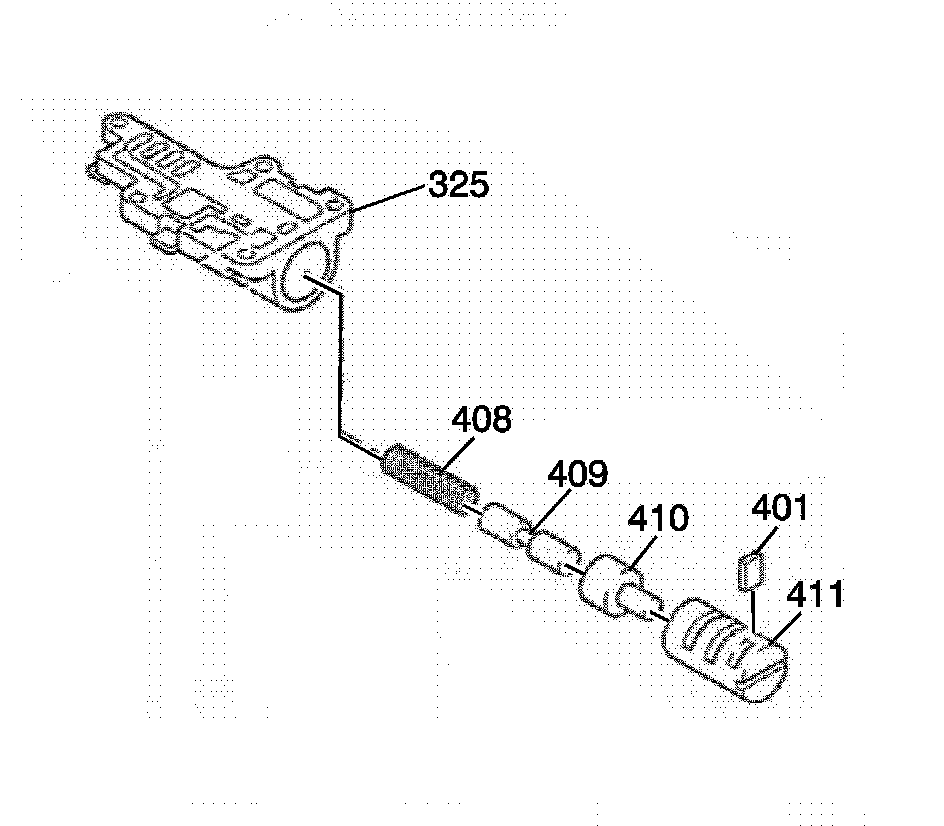

1. Remove the sleeve/bore plug retainer (401) and the solenoid modulator valve bore plug (411) from the No.2 rear control valve body assembly (325).
2. Remove the lock up control valve plunger (410).
3. Remove the lock up control valve (409).
4. Remove the lock up control valve (408).
