2-4 Band Servo Piston Disassemble

2-4 Band Servo Piston Disassemble

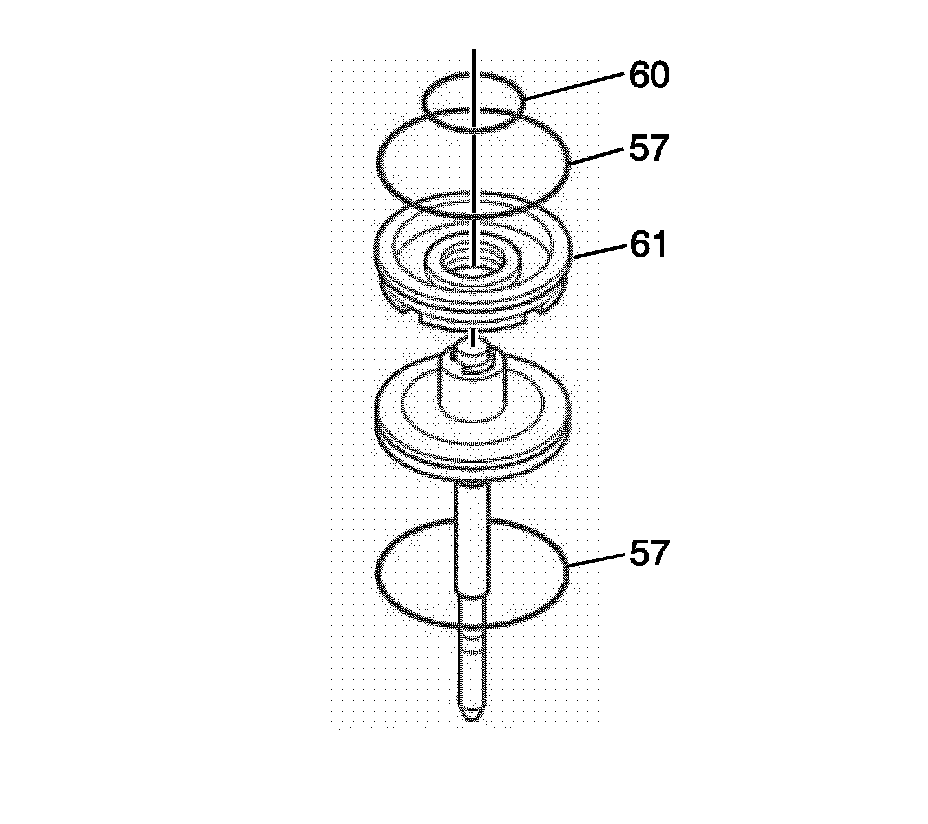

1. Remove the 2nd and 4th gear band servo piston cover (61), the 2 2nd and 4th gear band servo piston and cover O-ring seals (57) and the 2nd and 4th gear band servo piston inner seal (60).




2. Remove the 2nd and 4th gear band servo piston pin retainer (59).
3. Remove the 2nd and 4th gear band servo piston (58) from the 2nd and 4th gear band servo piston pin-selective (56).
