Front Suspension

Front Lower Control Arm Bushing Replacement - Front

Special Tools

KM-508-A /KM-508-A-2/KM-508-A-3 Control Arm Bushing Remover/Installer

Removal Procedure

Important: In general, both damping bushings must be replaced in lower control arm.


1. Remove the lower control arm. Refer to Lower Control Arm Replacement (Service and Repair).

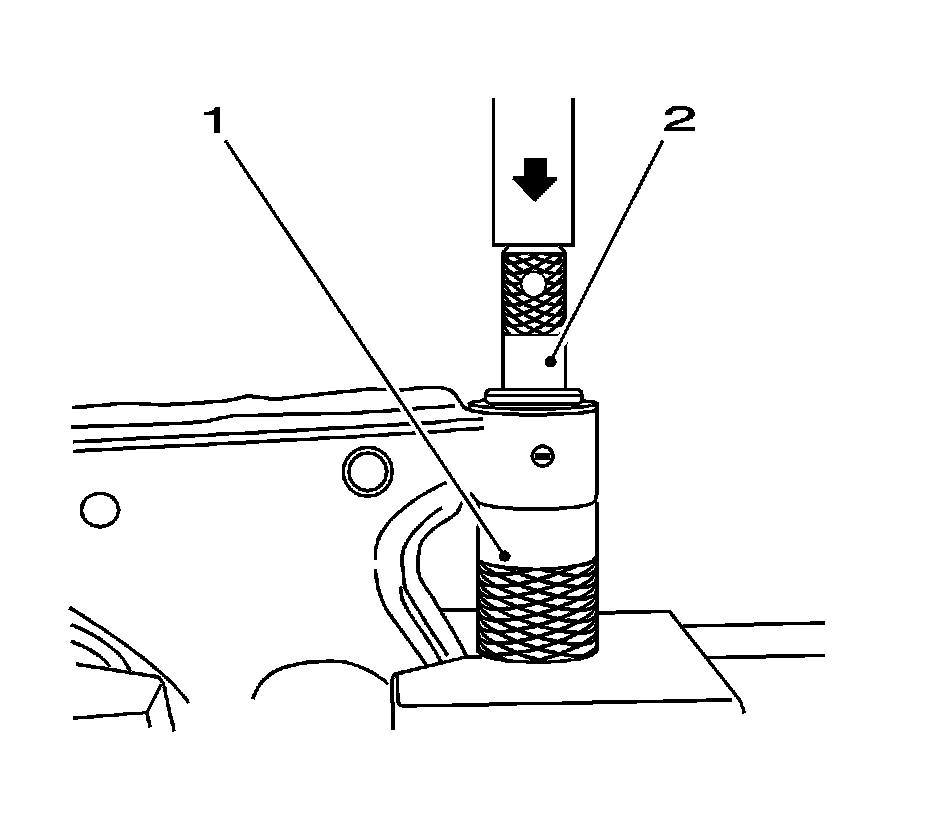

2. Press the front damping bushing out with KM-508-A KM-508-A-1 (1) and (2).

Installation Procedure

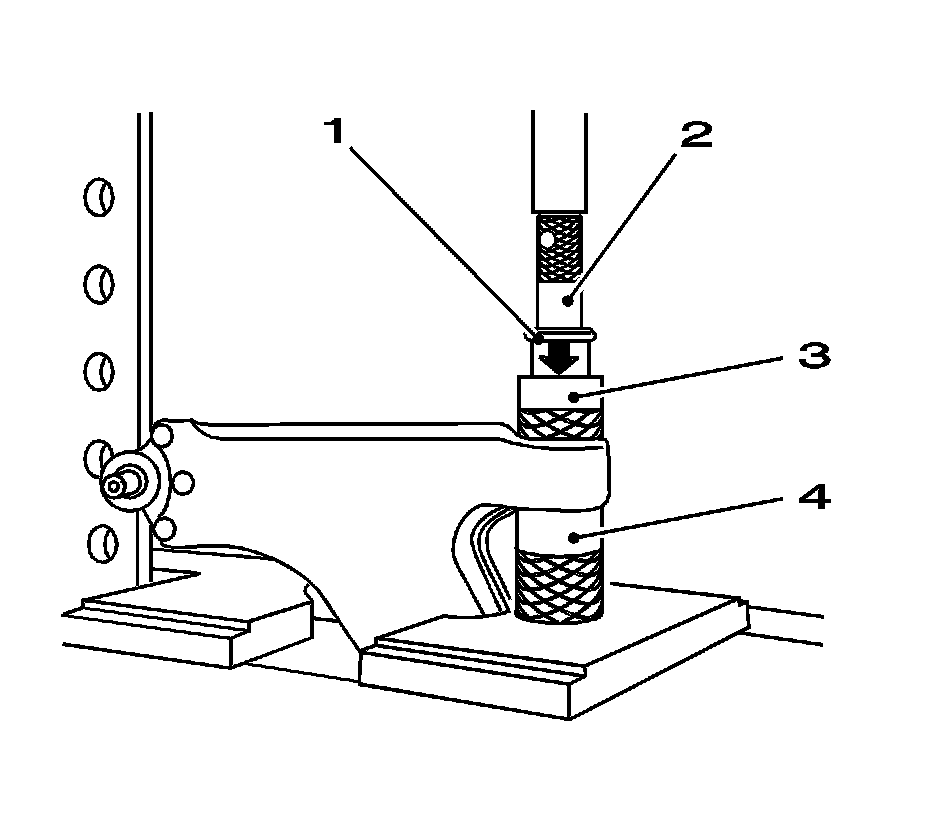

1. Coat the front damping bushing (1) and inside of tool KM-508-A and lower control arm with soap solution before pressing in.
2. Press in the front damping bushing with KM-508-A (3), KM-508-A (2) and KM-508-A (4).




3. Install the lower control arm. Refer to Lower Control Arm Replacement (Service and Repair).
