Home >> Saturn >> 2009 >> Astra L4-1.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X300 - X399 >> X303

X303

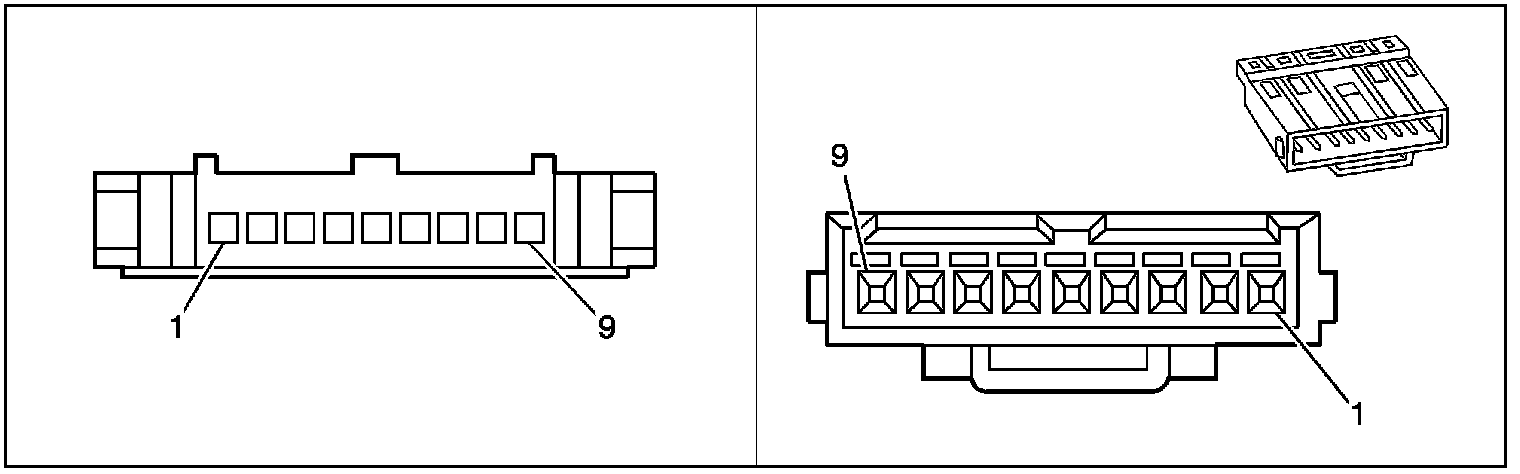

Inline Harness Connector End Views

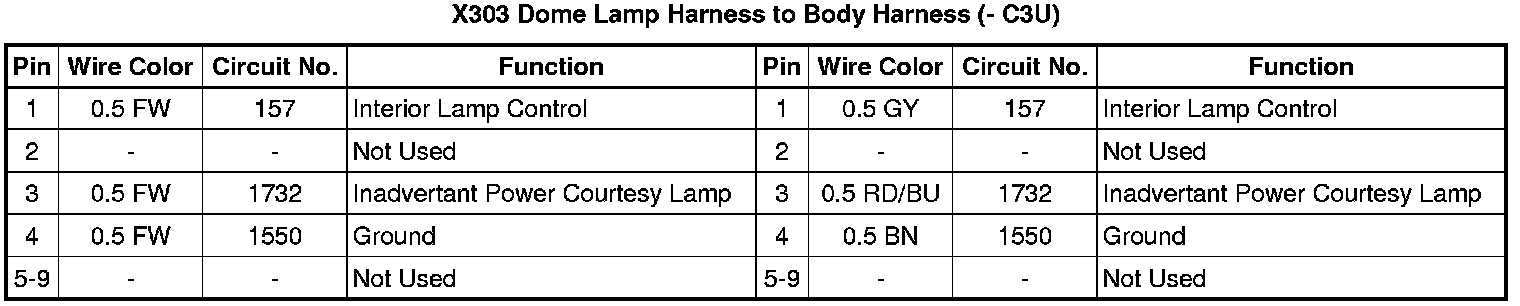

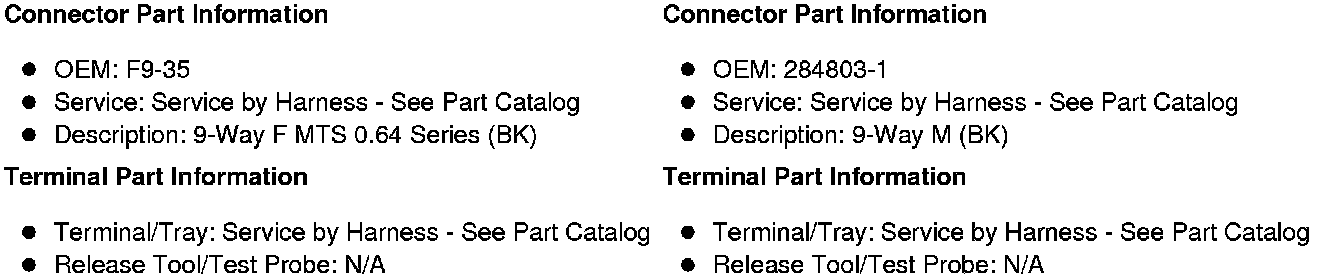

X303 Dome Lamp Harness to Body Harness (- C3U)
