X204
X204

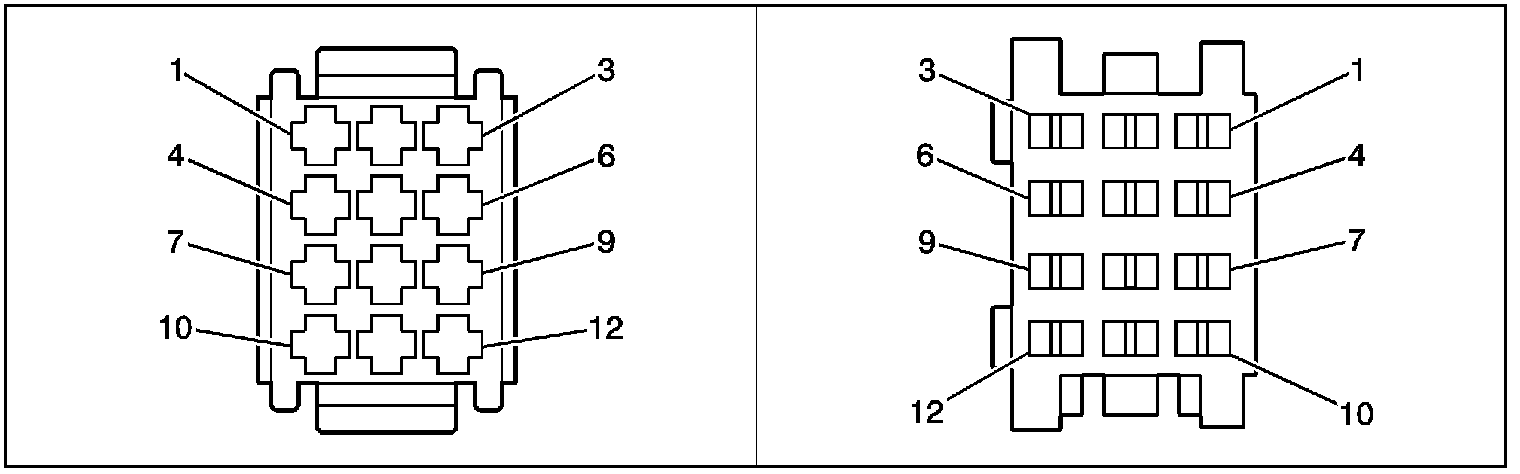

Inline Harness Connector End Views

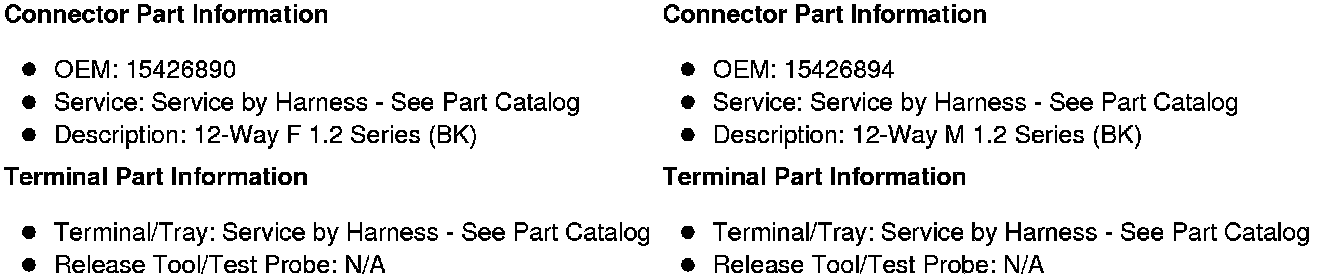

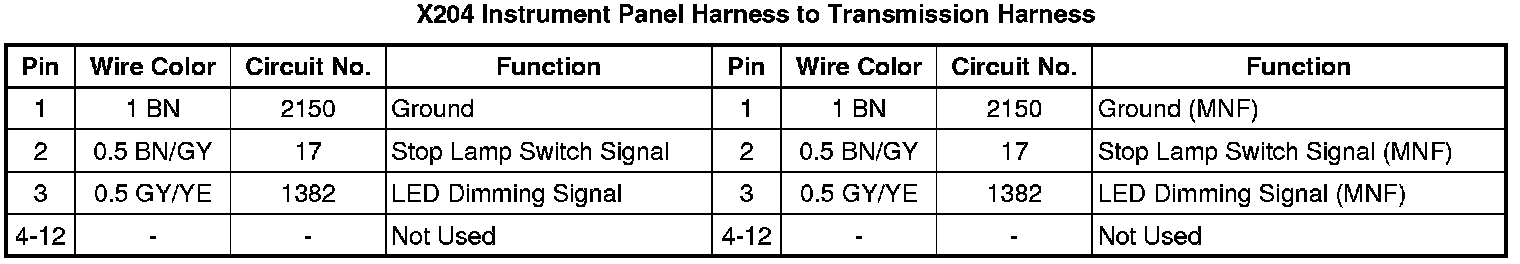

X204 Instrument Panel Harness to Transmission Harness (MNF)
