X114
X114

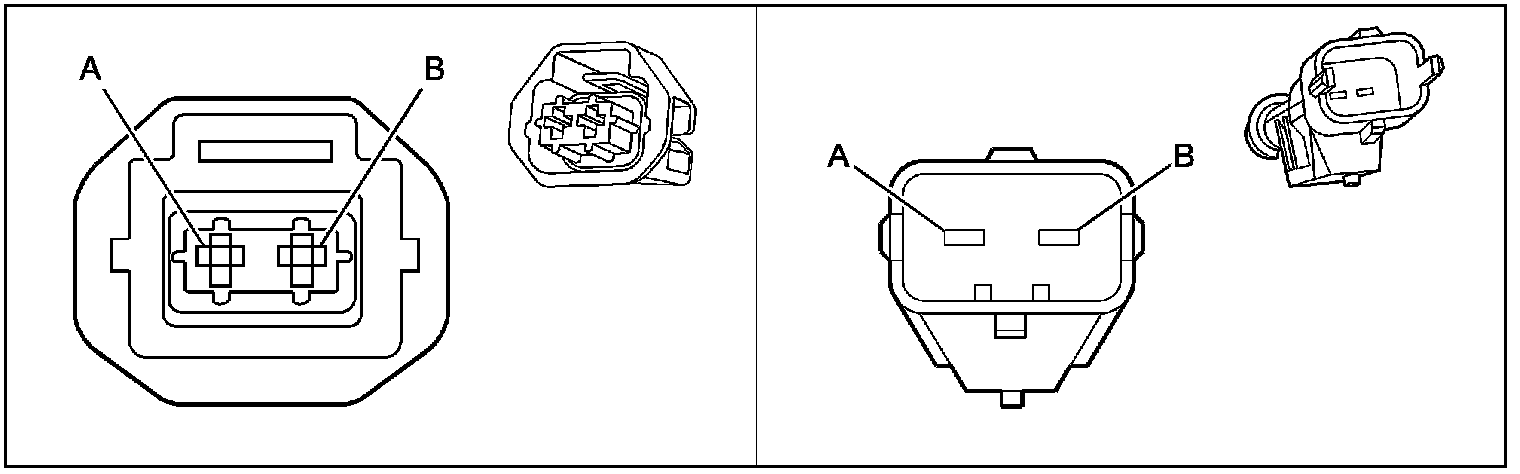

Inline Harness Connector End Views

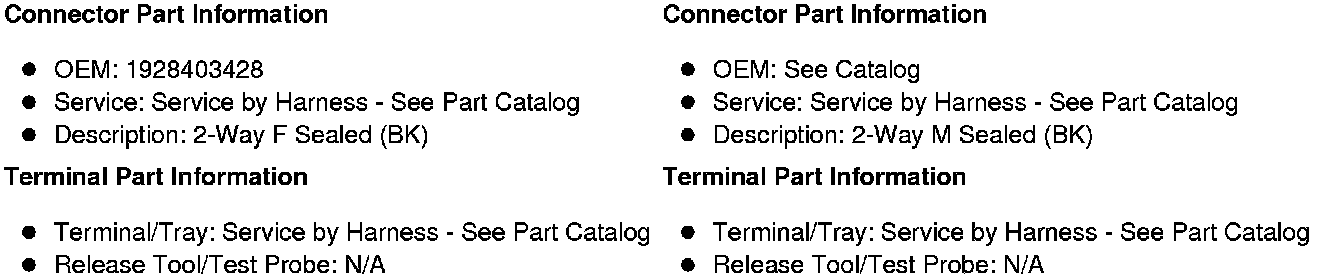

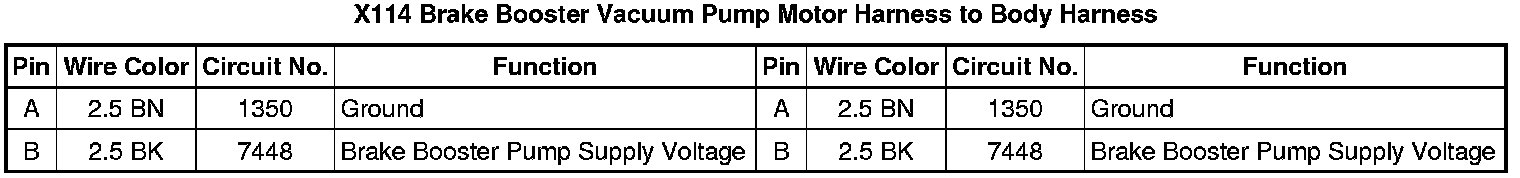

X114 Brake Booster Vacuum Pump Motor Harness to Body Harness
