X110

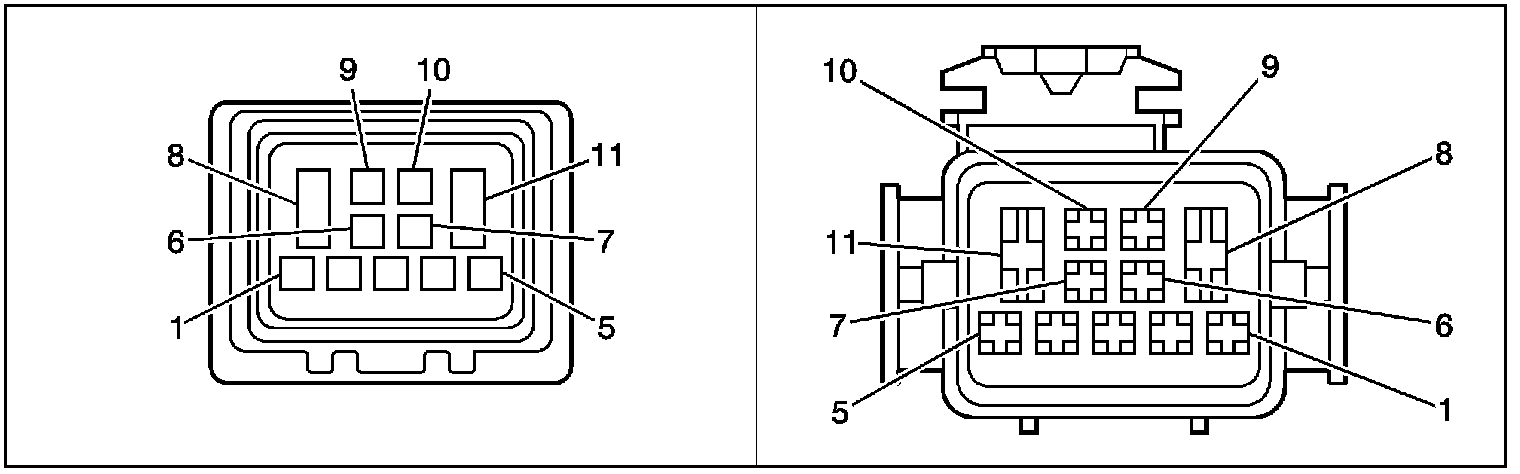

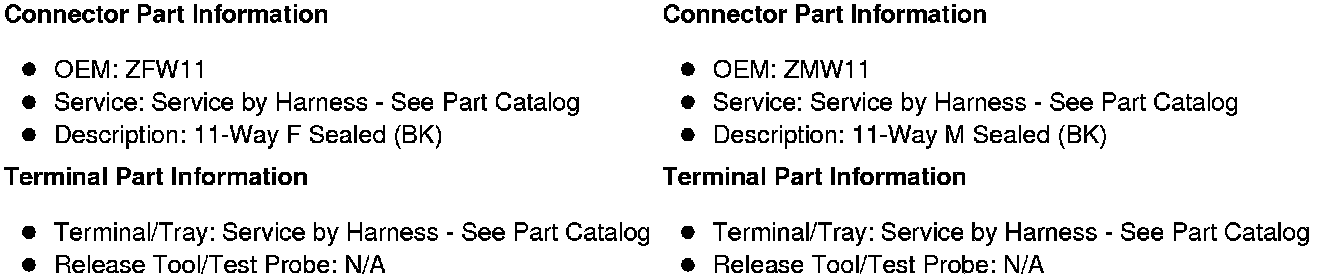

Inline Harness Connector End Views

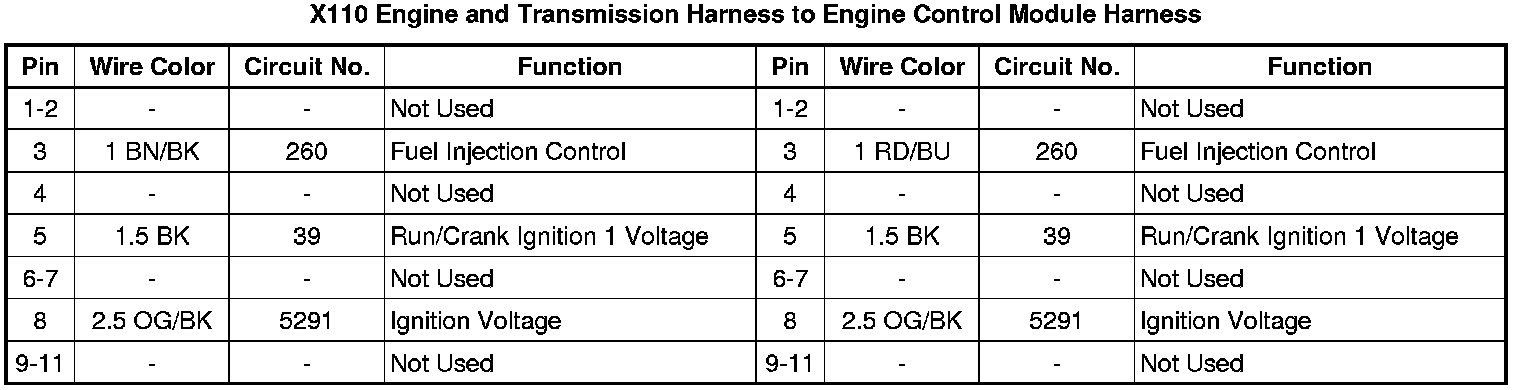

X110 Engine and Transmission Harness to Engine Control Module Harness
