X105

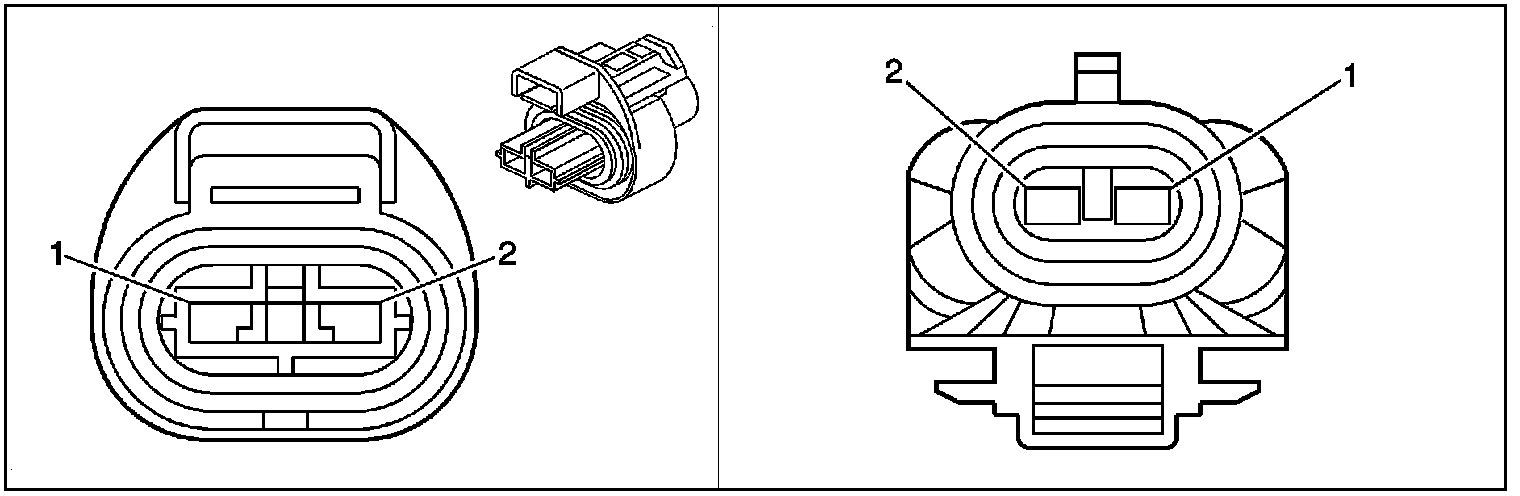

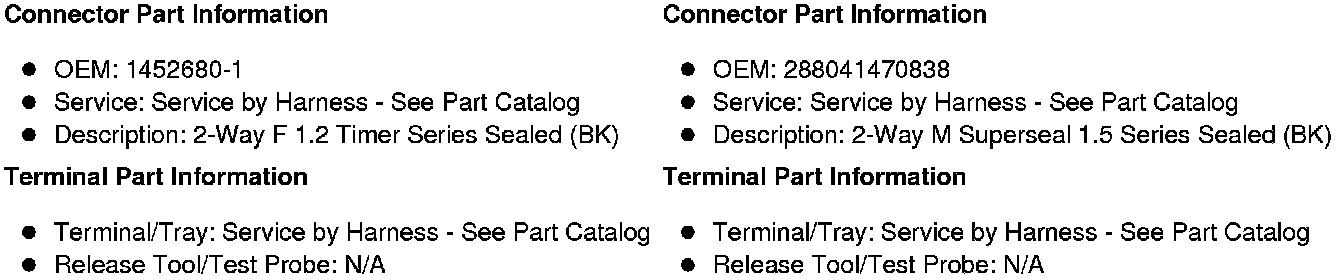

Inline Harness Connector End Views

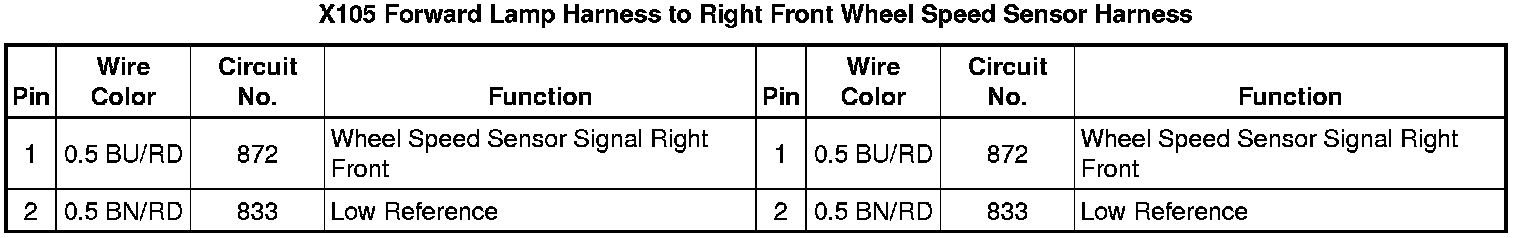

X105 Forward Lamp Harness to Right Front Wheel Speed Sensor Harness
