Underhood Fuse Block




Electrical Center Identification Views

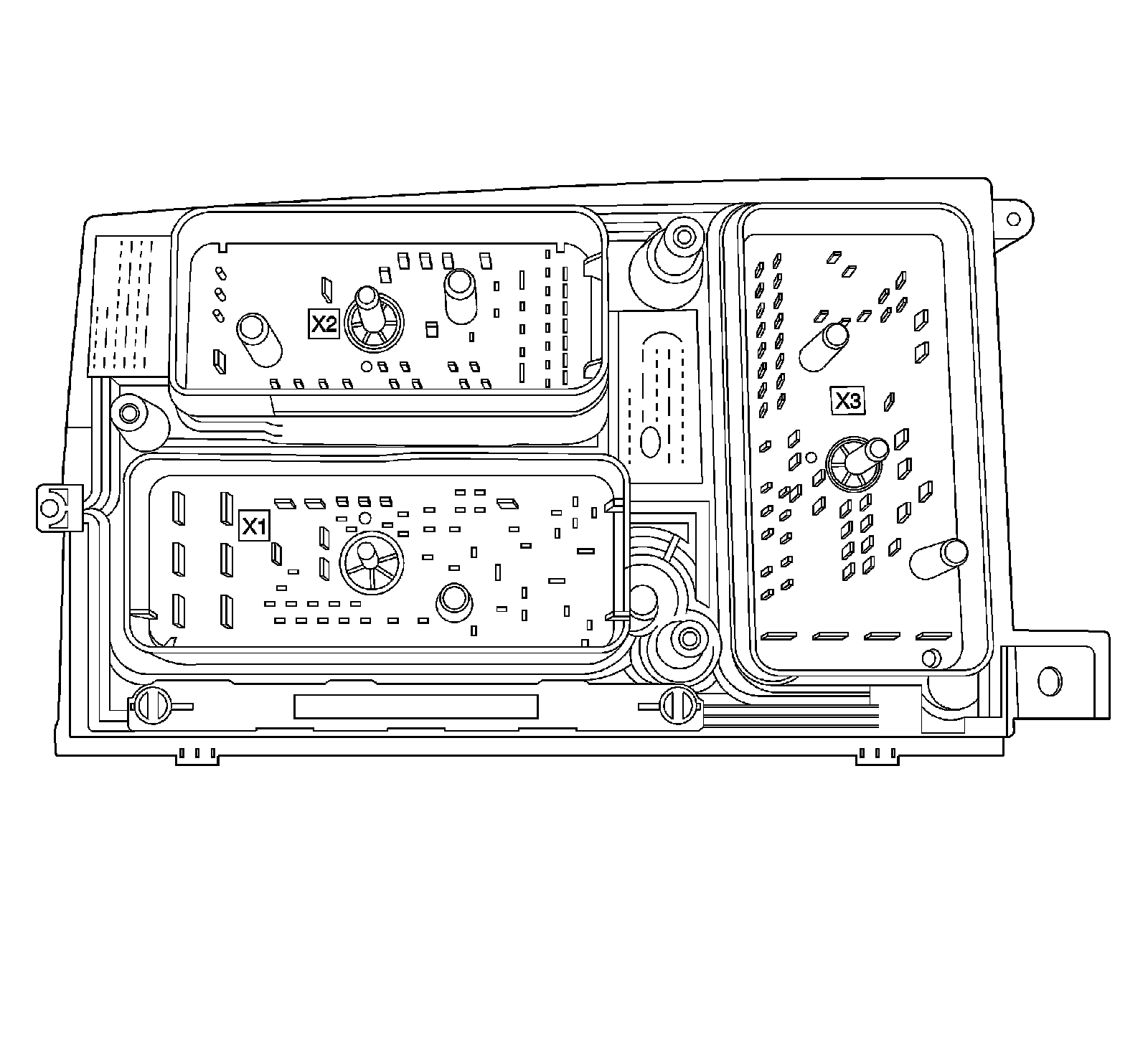

Fuse Block - Underhood - Bottom View

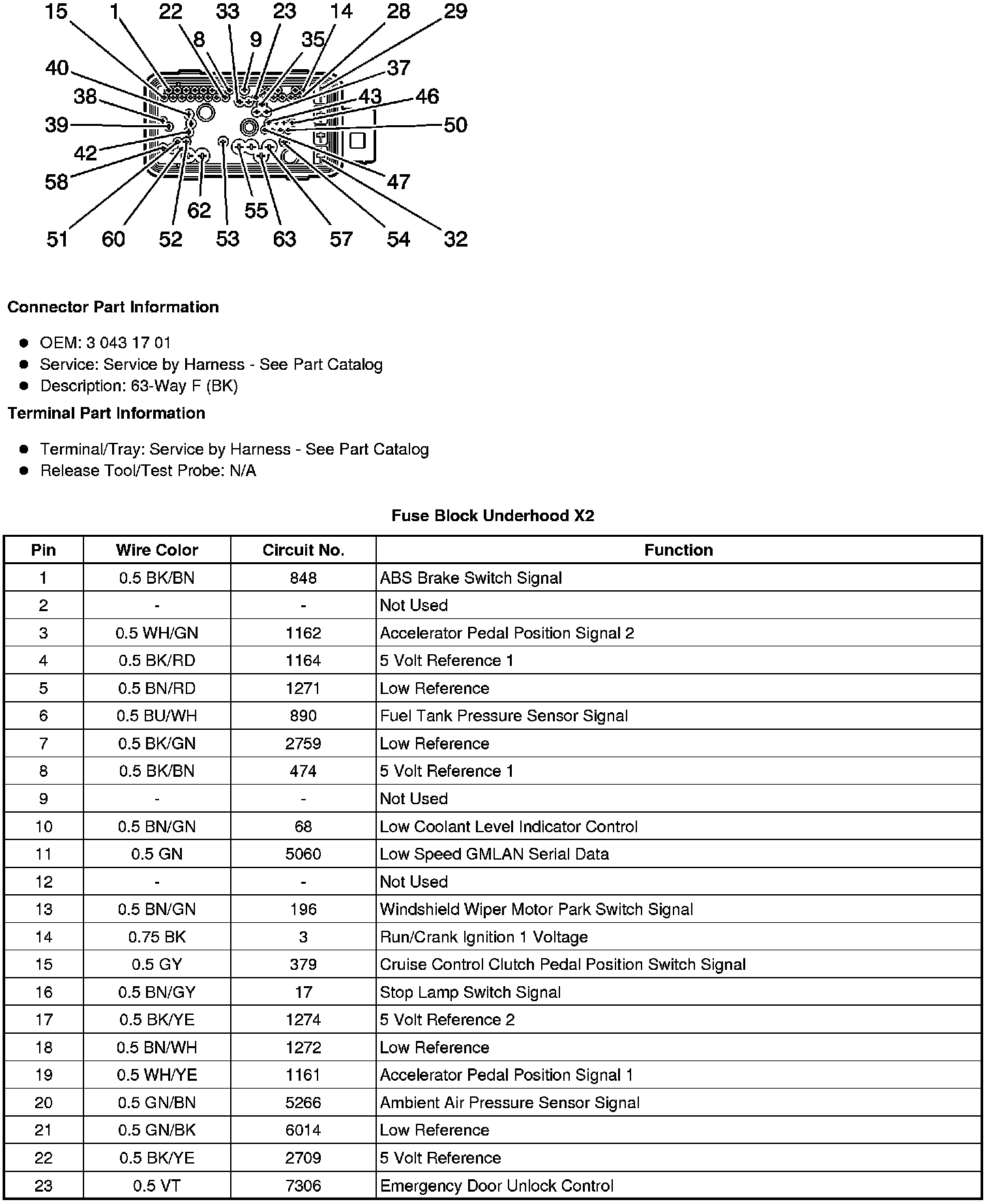

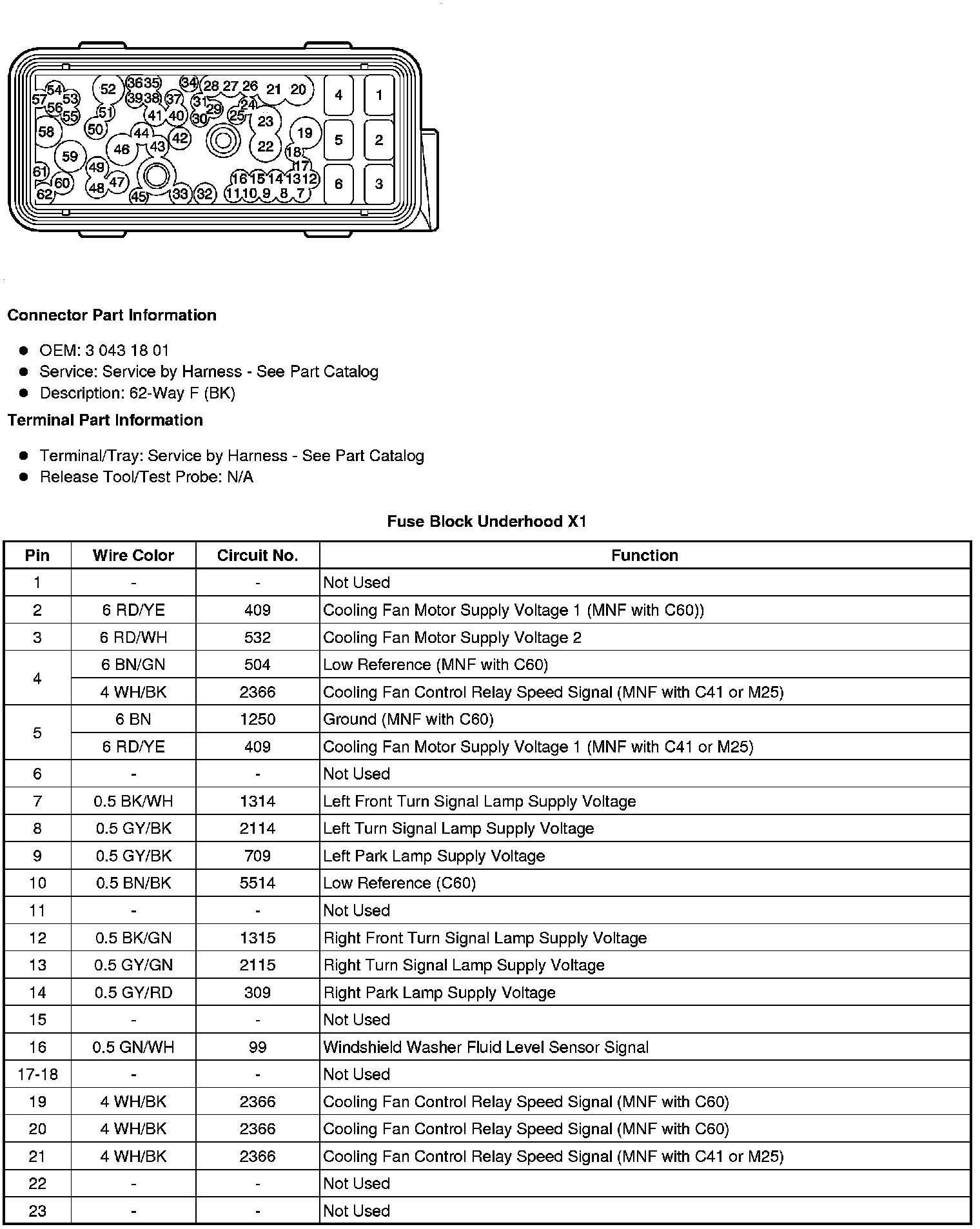

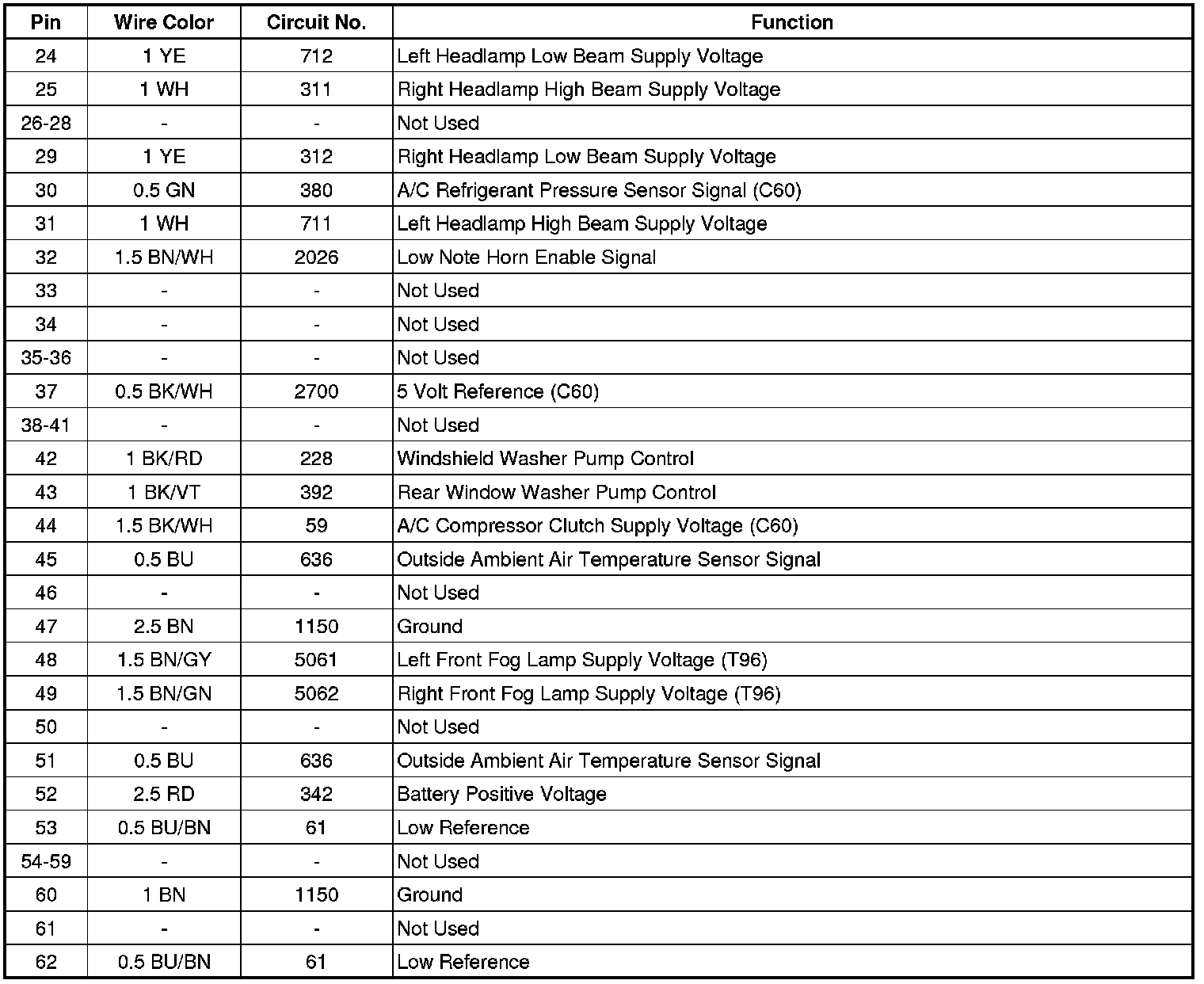

Fuse Block Underhood X1

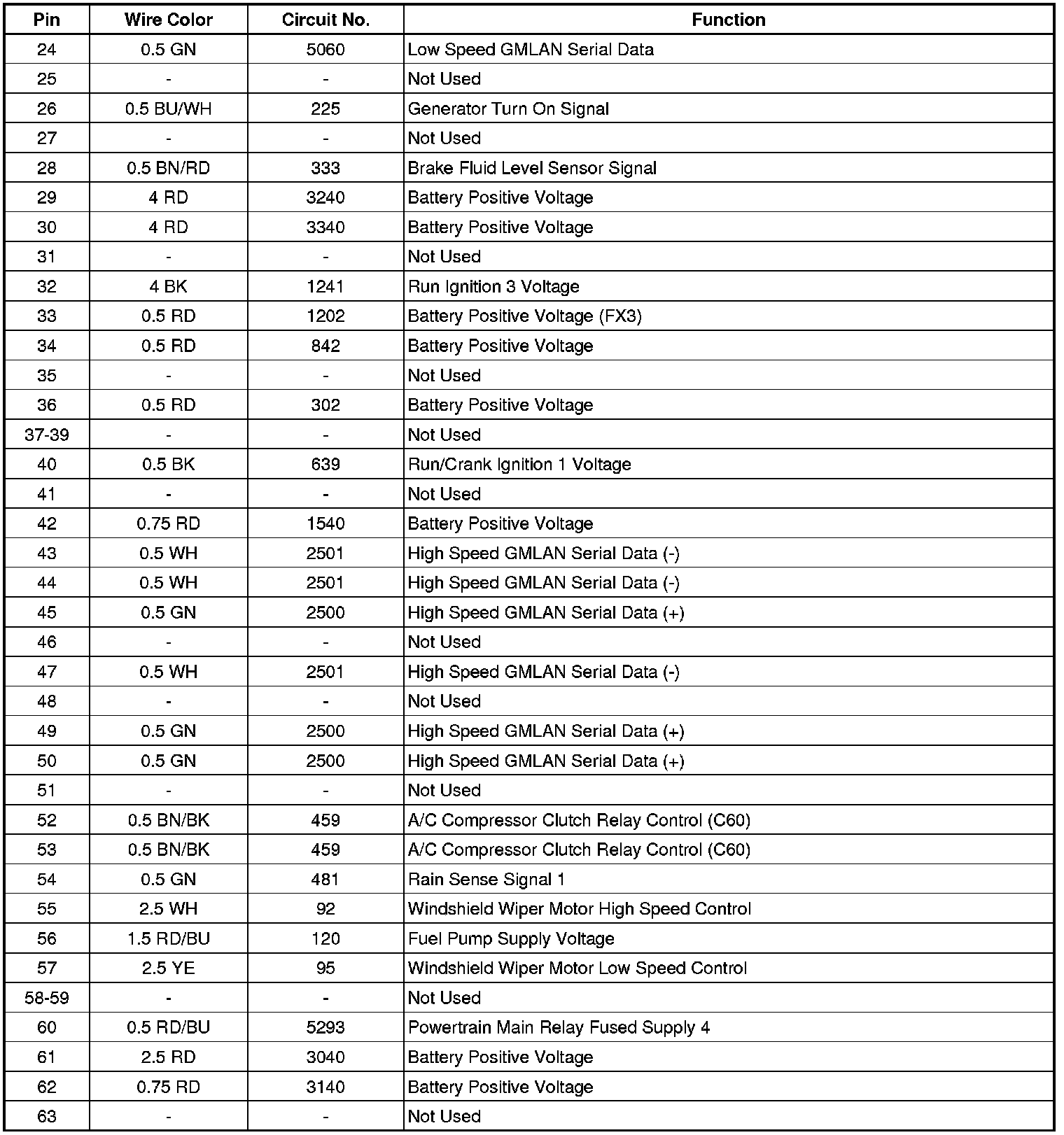

Fuse Block Underhood X2

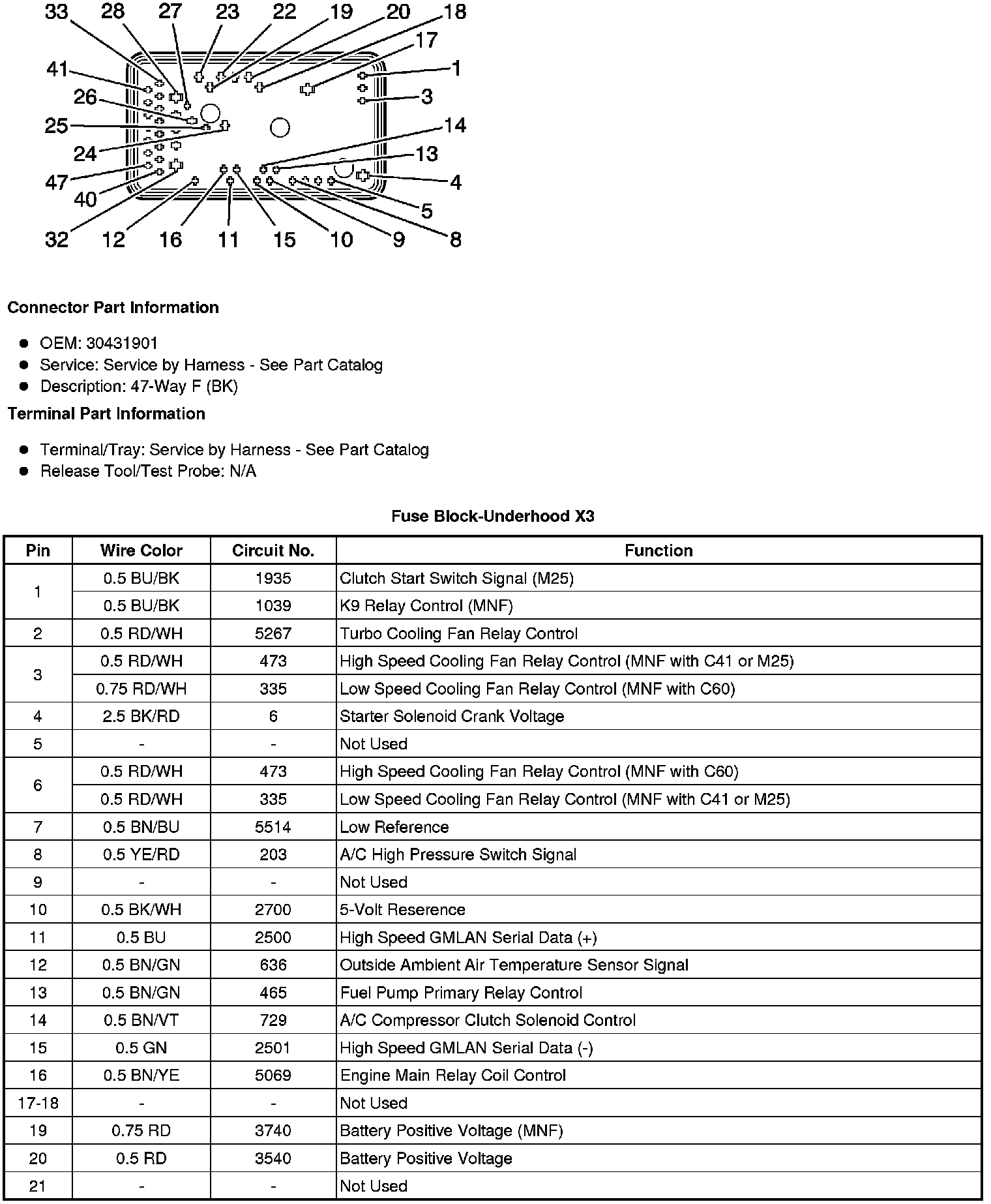

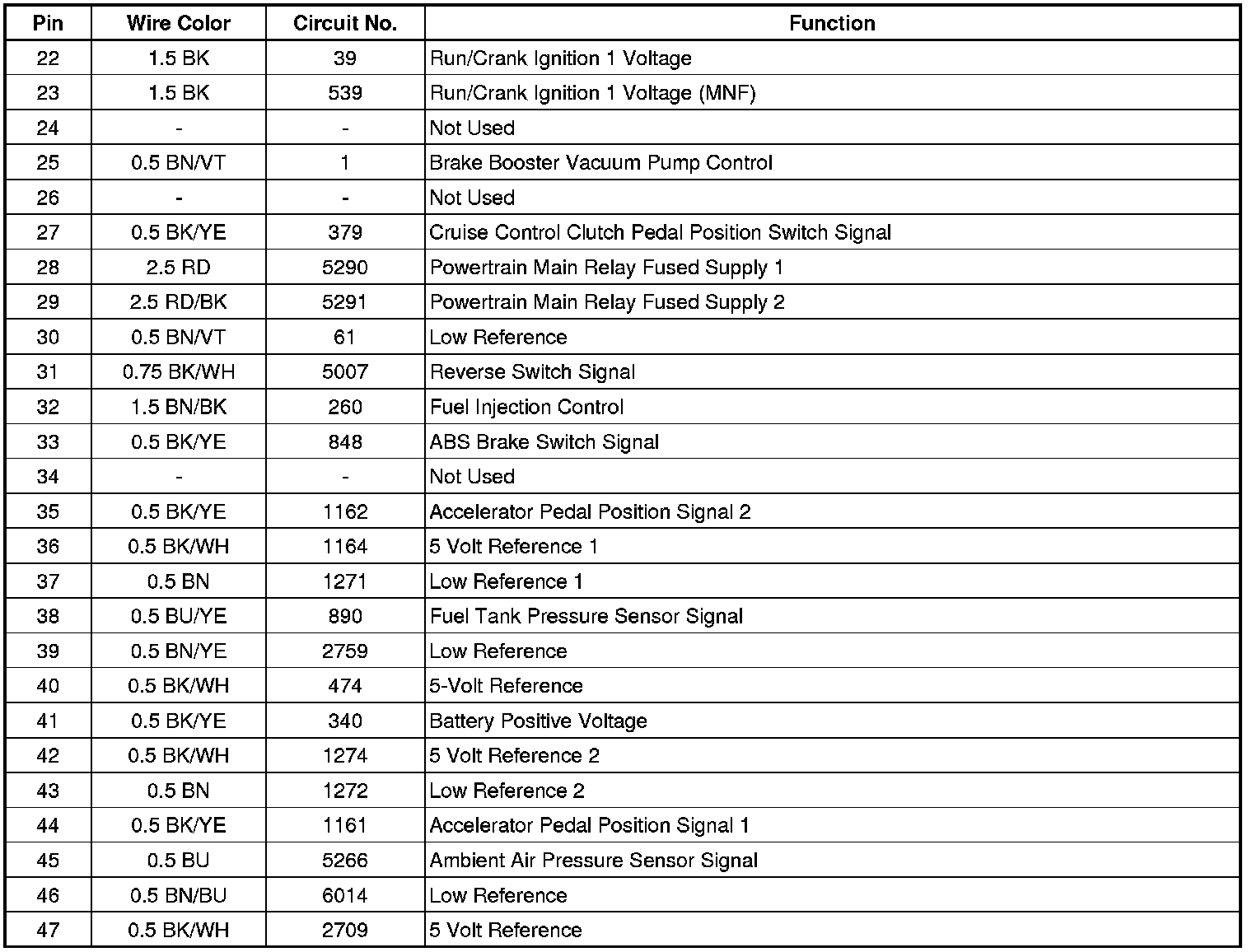

Fuse Block-Underhood X3
