Shoulder Belt Guide Bracket Replacement (Sedan)

Shoulder Belt Guide Bracket Replacement (Sedan)

Removal Procedure

1. Remove the upper center pillar garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement (Coupe) (Service and Repair)Center Pillar Upper Garnish Molding Replacement (Sedan) (Service and Repair).

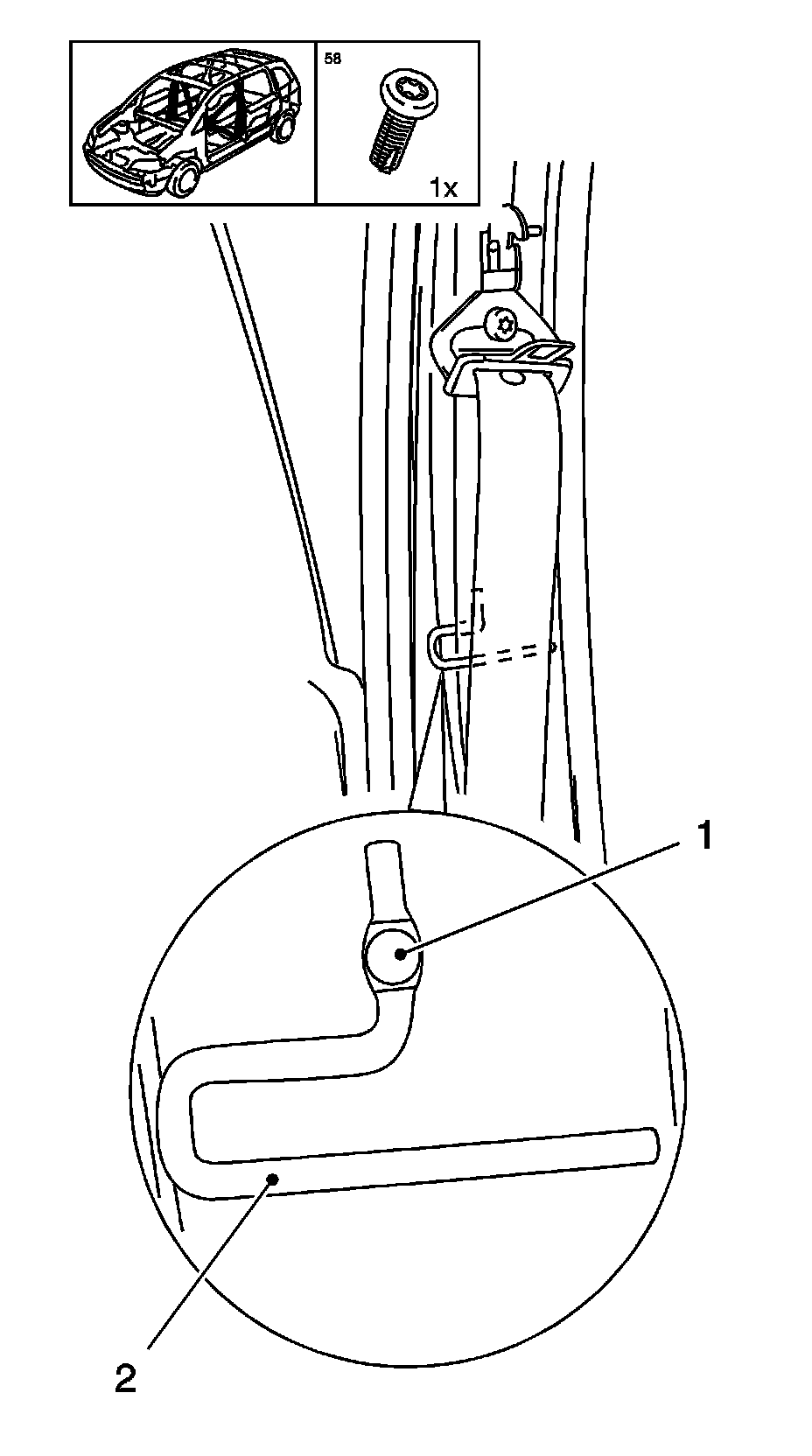

2. Remove the seat belt guide bracket (2).
Remove the bolt (1).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the seat belt guide bracket.

Tighten the bolt to 1.5 Nm (13 lb in).

2. Install the upper center pillar garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement (Coupe) (Service and Repair)Center Pillar Upper Garnish Molding Replacement (Sedan) (Service and Repair).
