Shoulder Belt Guide Bracket Replacement (Coupe)

Shoulder Belt Guide Bracket Replacement (Coupe)

Removal Procedure

1. Remove the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Coupe) (Service and Repair)Quarter Lower Rear Trim Panel Replacement (Sedan) (Service and Repair).

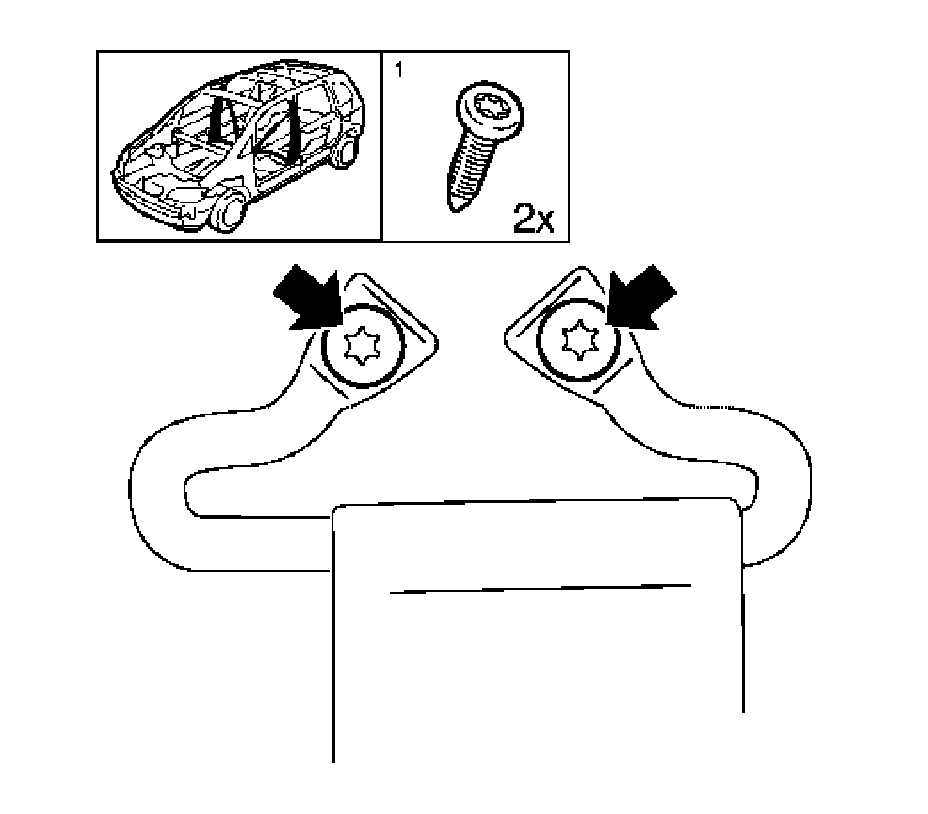

2. Remove the seat belt guide bracket.
Remove the 2 bolts, arrows.

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the seat belt guide bracket.

Tighten the 2 bolts to 1.5 Nm (13 lb in).

2. Install the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Coupe) (Service and Repair)Quarter Lower Rear Trim Panel Replacement (Sedan) (Service and Repair).
