Electrical Diagrams




SIR Schematics

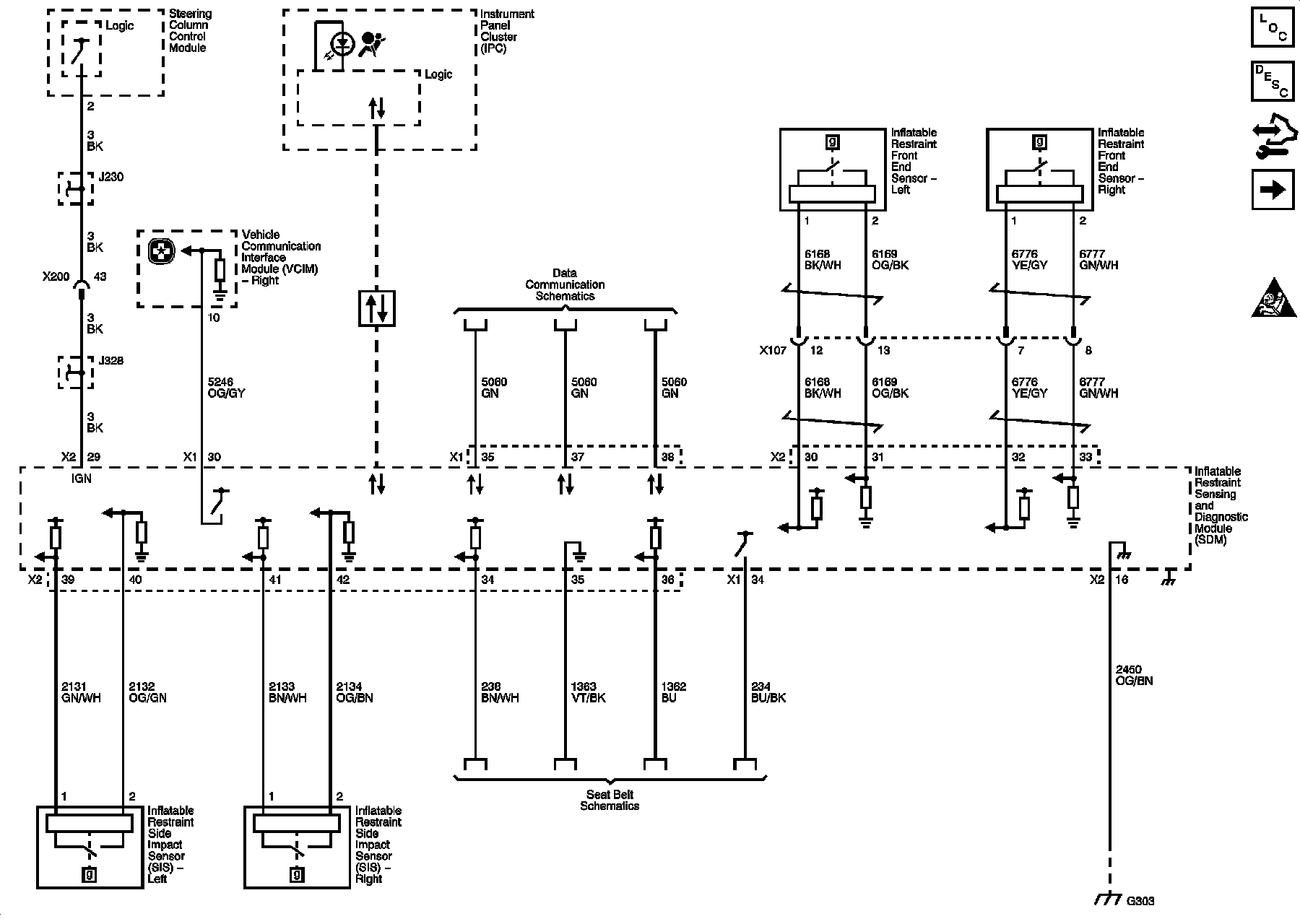

Power, Ground, DLC, Indicators, Sensors, and References

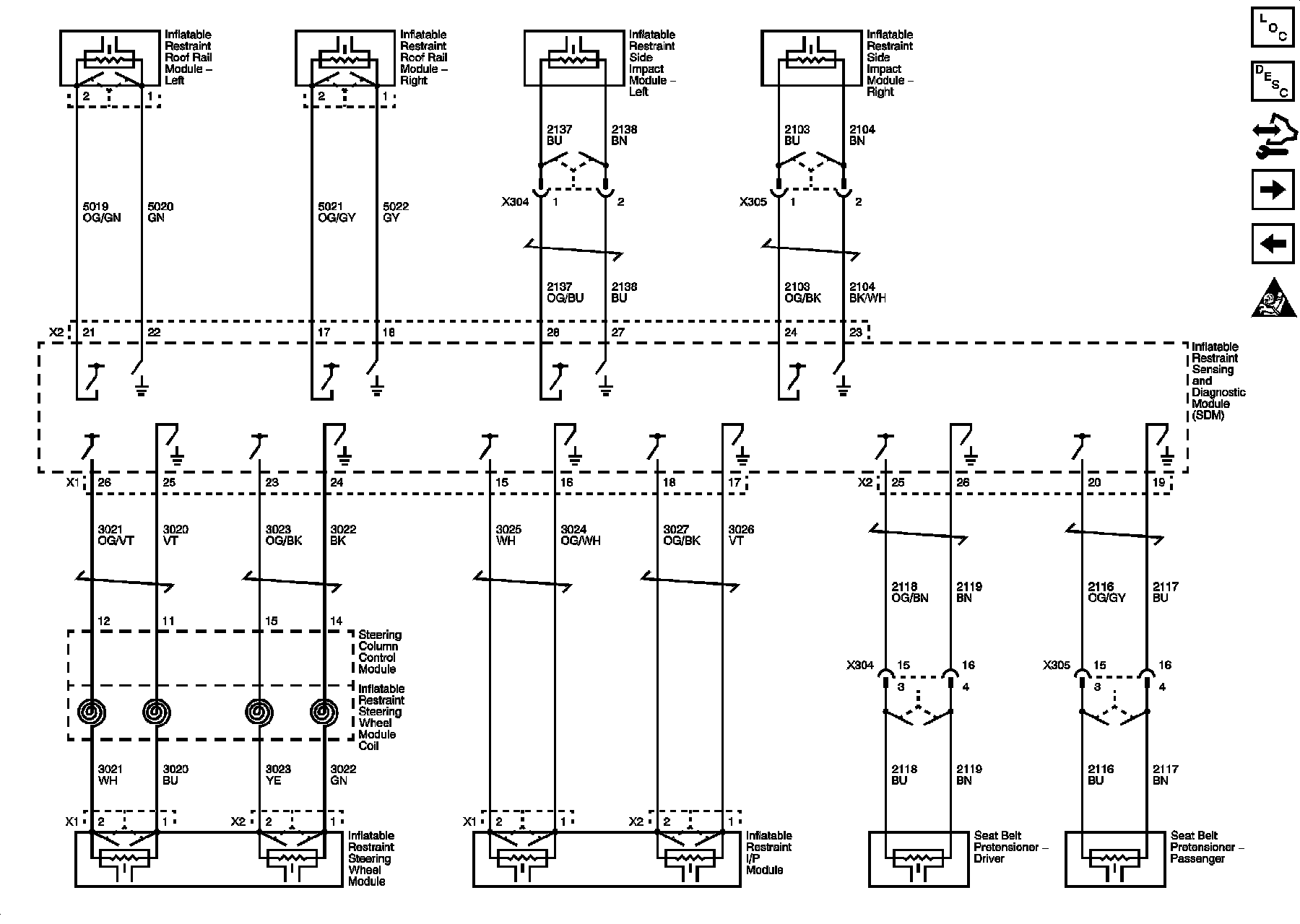

Deployment Loops

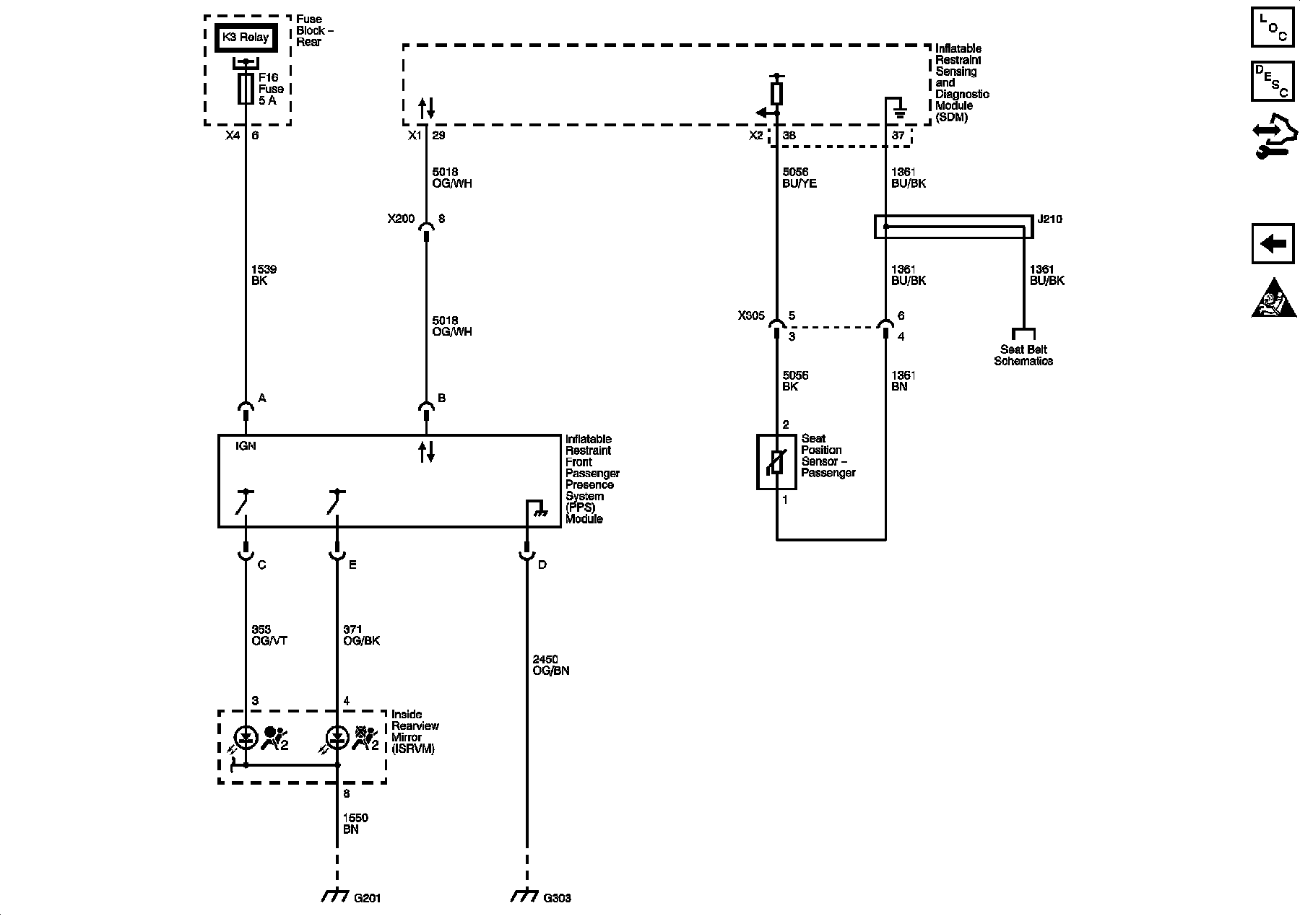

Passenger Presence System
