Turn Signal Lamp: Diagrams




Component Connector End Views

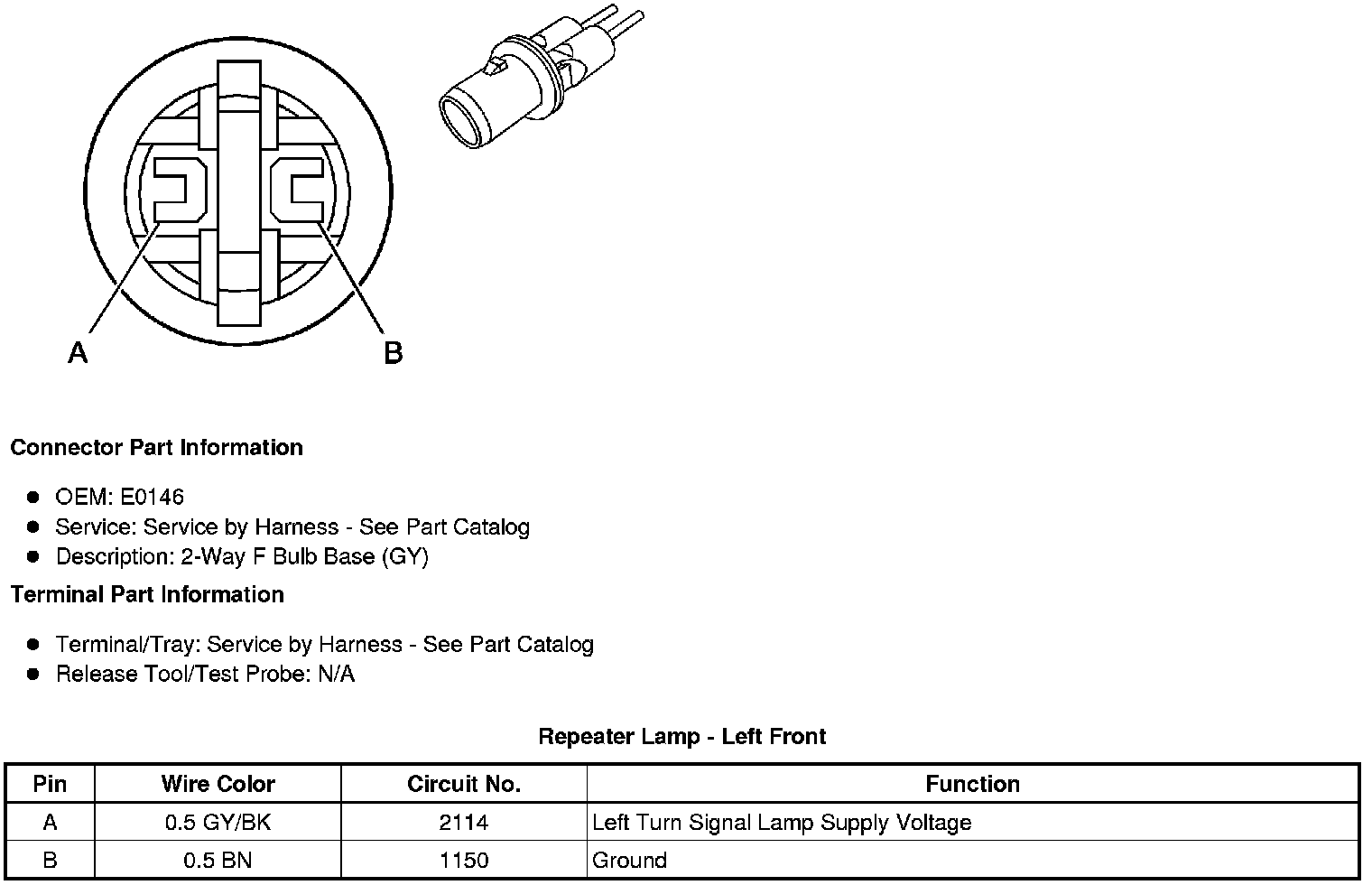

Repeater Lamp - Left Front

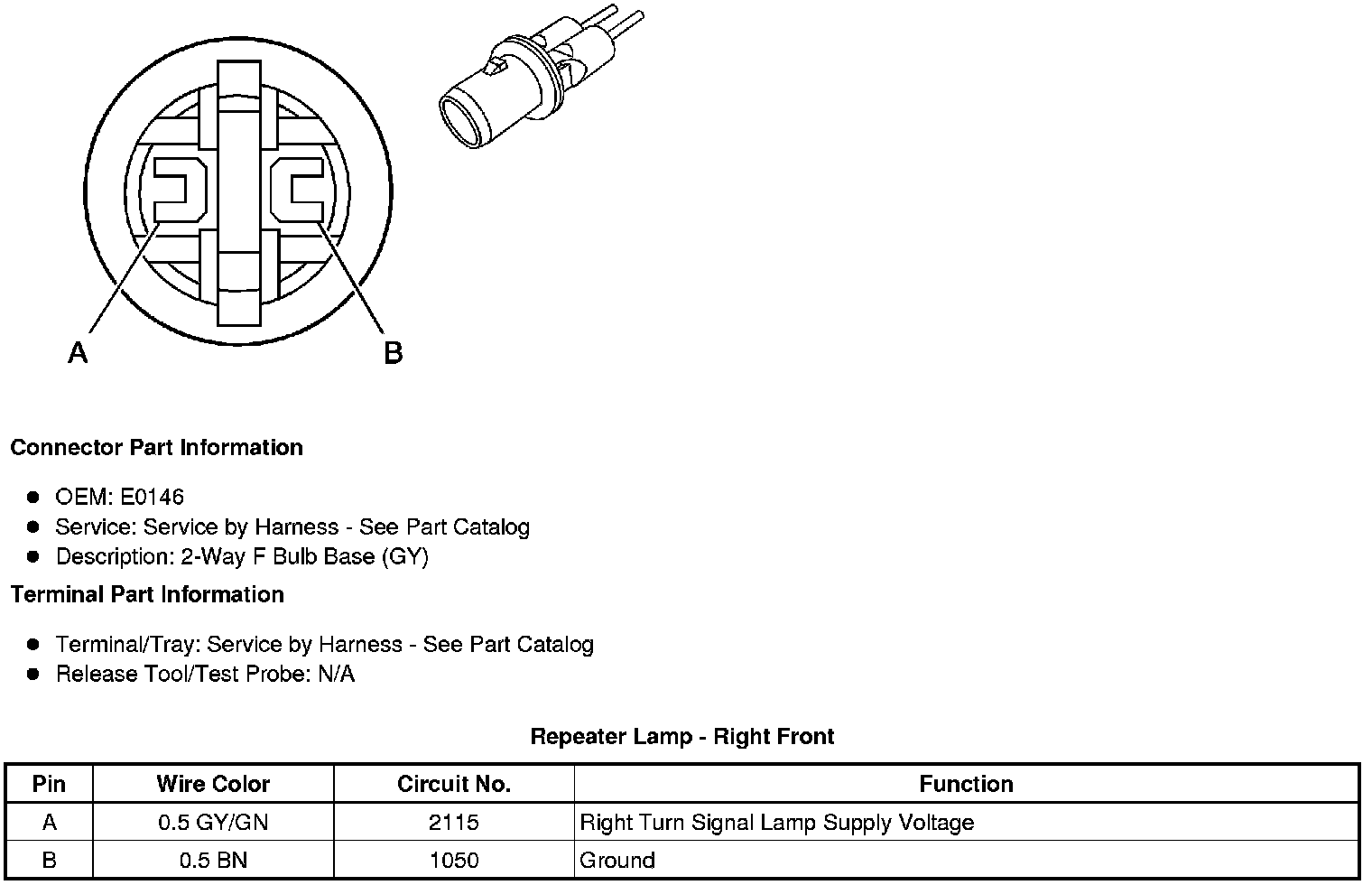

Repeater Lamp - Right Front
