Tail Lamp Wiring Harness Replacement (Coupe)

Tail Lamp Wiring Harness Replacement (Coupe)

Removal Procedure

Warning: Refer to Battery Disconnect Warning (Service Precautions).


Note: Replace or repair the wiring harnesses observing the safety regulations of electrics/electronics.

1. Disconnect the battery.
2. Remove the rear compartment, side trim panel, both sides. Refer to Rear Compartment Side Trim Panel Replacement (Coupe) (Service and Repair)Rear Compartment Side Trim Panel Replacement (Sedan) (Service and Repair).

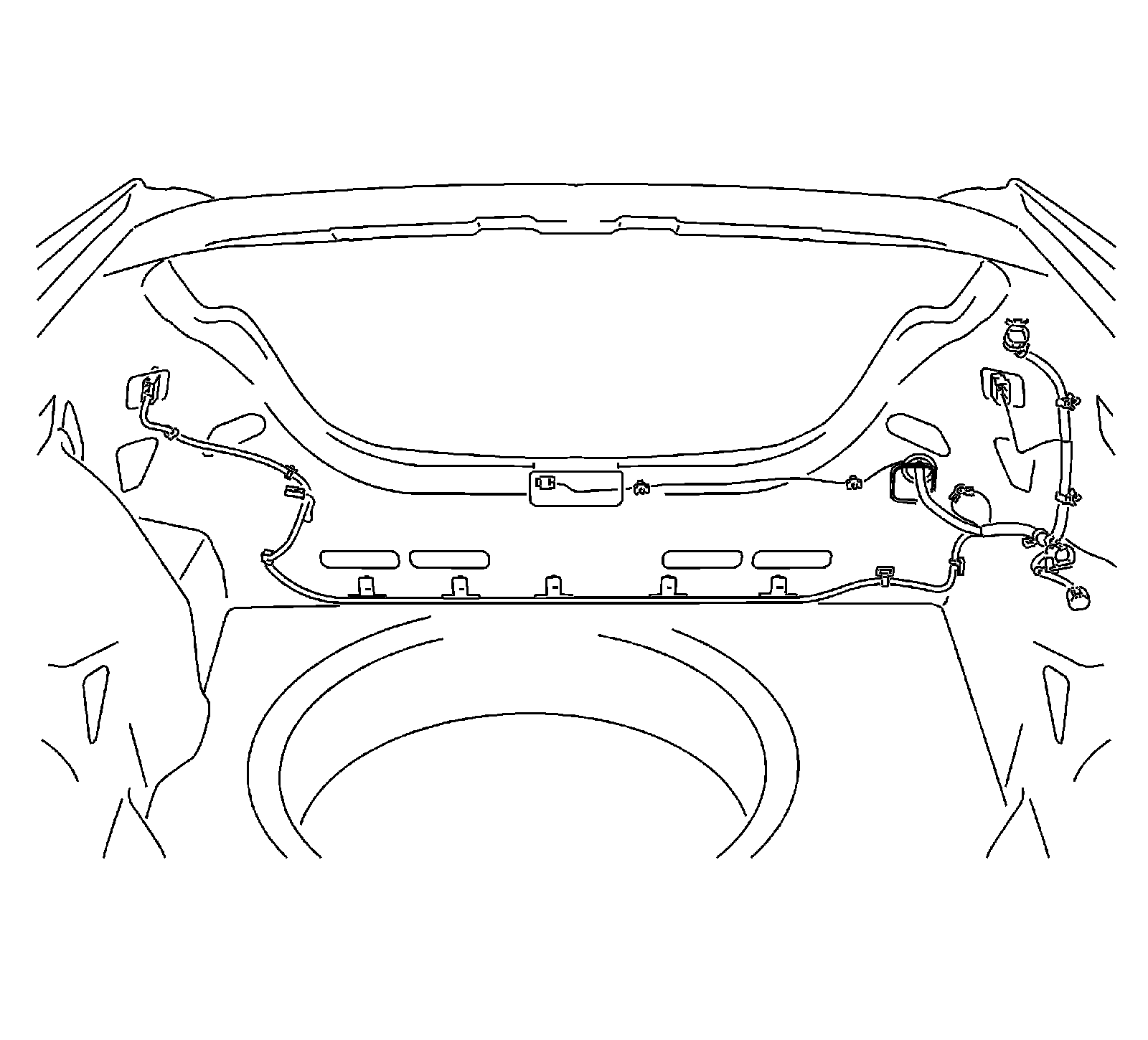

3. Remove the wiring harness, rear end panel.

* Disconnect the 7 wiring harness plugs.
* Disconnect the ground connection.
* Remove the nut.
* Release the 16 clips.
* Remove the wiring harness.

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the wiring harness, rear end panel.

* Position the wiring harness.
* Install the 16 clips.
* Connect the ground connection.

Tighten the nut to 5 Nm (44 lb in).

* Connect the 7 wiring harness plugs.

2. Install the rear compartment, side trim panel, both sides. Refer to Rear Compartment Side Trim Panel Replacement (Coupe) (Service and Repair)Rear Compartment Side Trim Panel Replacement (Sedan) (Service and Repair).
3. Connect the battery.
4. For reprogramming procedures, refer to Control Module References (Programming and Relearning).
