Rear Side Marker Lamp Bulb Replacement

Rear Side Marker Lamp Bulb Replacement

Removal Procedure




1. Replace the bulb rear sidemarker lamp.

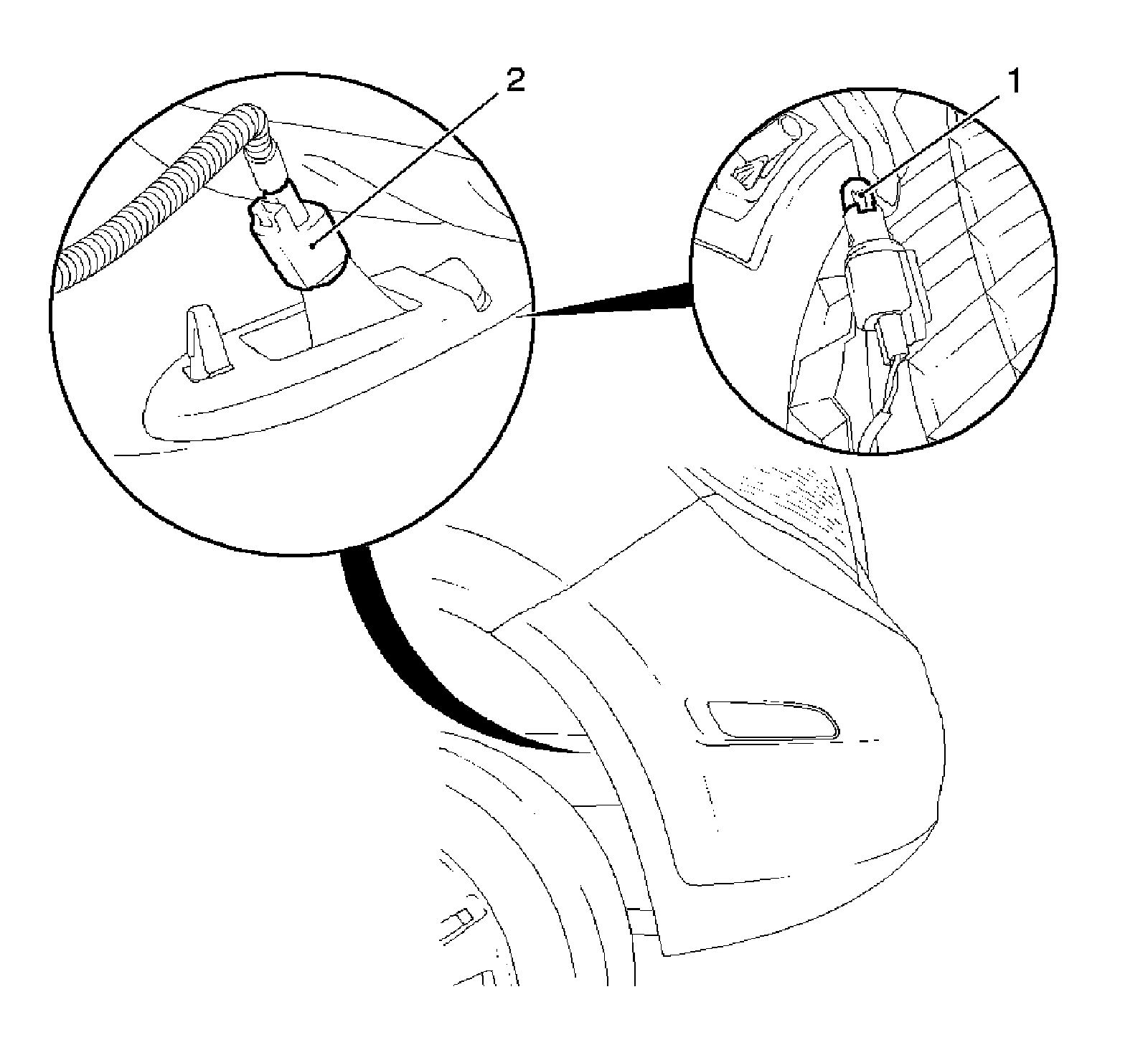

2. Remove the socket ((1) by turning.
3. Disconnect the bulb rear sidemarker lamp (2), socket.

Installation Procedure

1. Install the bulb rear sidemarker lamp.
2. Connect the bulb rear sidemarker lamp, socket.
3. Install the socket by turning.
