Front Side Marker Lamp Bulb Replacement




Front Side Marker Lamp Bulb Replacement

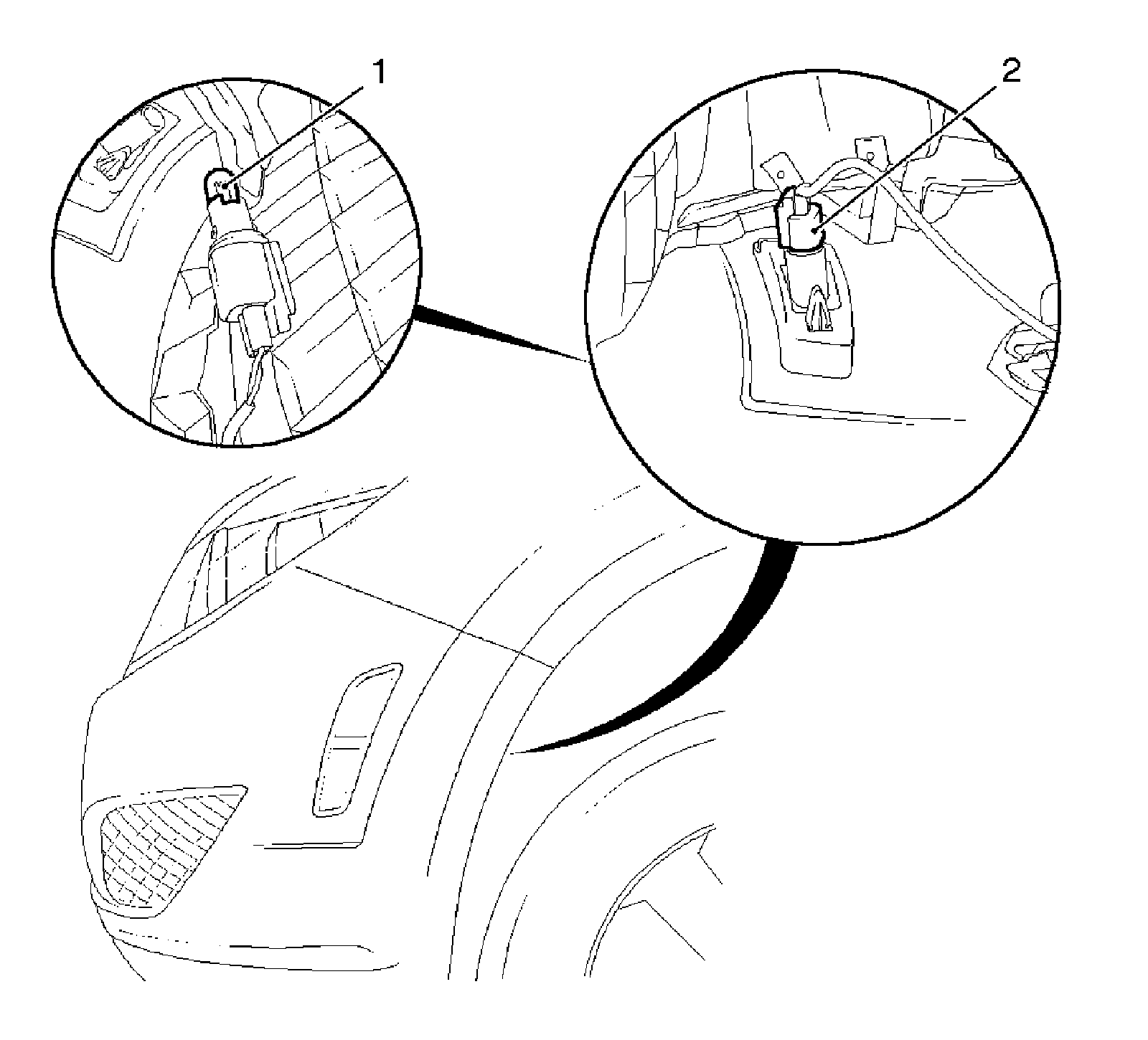

Removal Procedure





Replace the bulb front sidemarker lamp.

* Remove the socket (2) by turning.
* Disconnect the bulb front sidemarker lamp (1), socket.

Installation Procedure

Install the bulb front sidemarker lamp.

* Install the bulb front sidemarker lamp, socket.
* Install the socket by turning.
