Exhaust Front Heat Shield Replacement

Exhaust Front Heat Shield Replacement

Removal Procedure

1. Remove the complete exhaust system. Refer to Exhaust System Replacement (Service and Repair).




2. Remove the front exhaust heat shield.

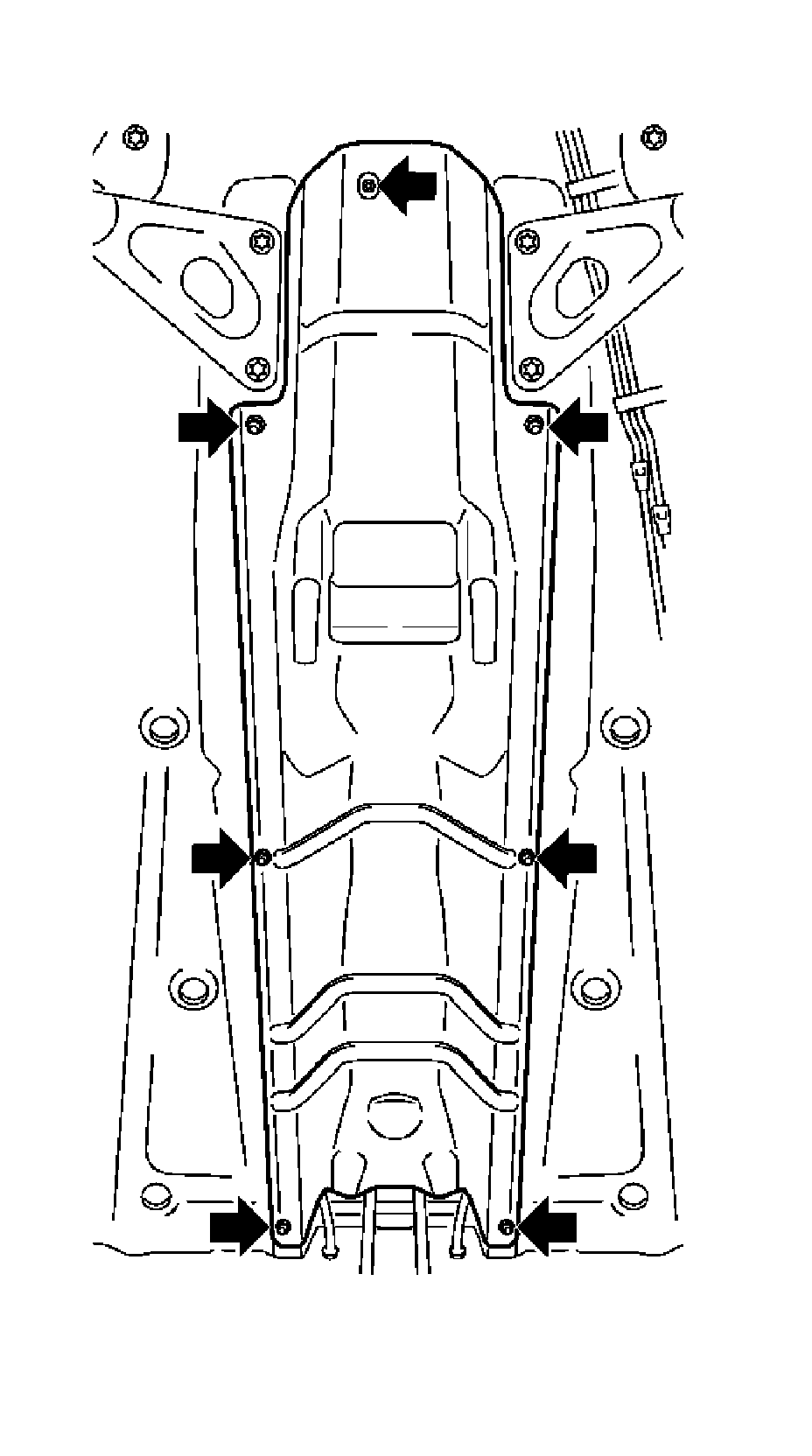

Loosen the 7 nuts (arrows).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the front exhaust heat shield.

Tighten the 7 nuts to 6 Nm (53 lb in).

2. Install the complete exhaust system. Refer to Exhaust System Replacement (Service and Repair).
