Wiper and Washer Systems




Wiper/Washer Schematics

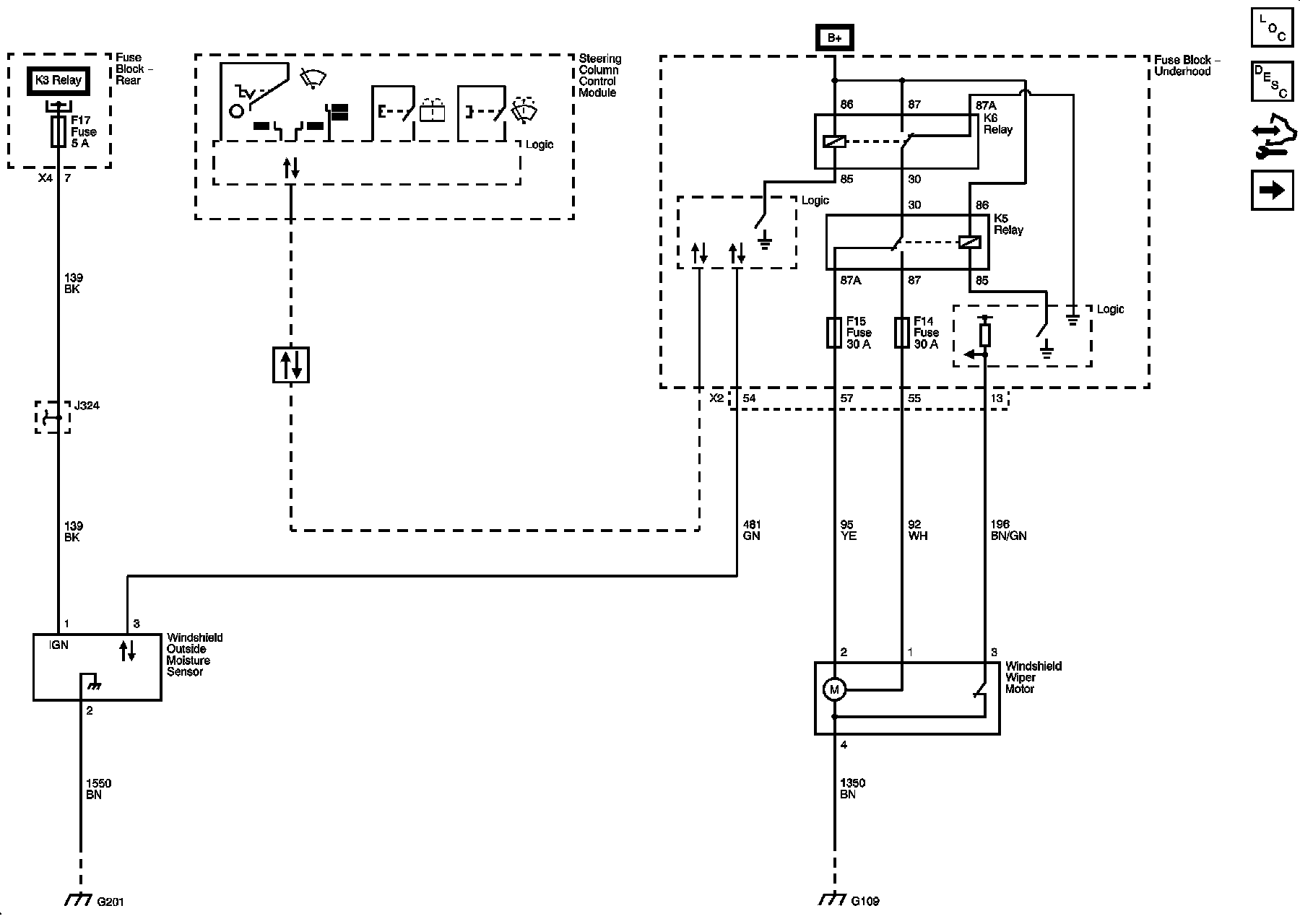

Switching, Windshield Outside Moisture Sensor, and Windshield Wiper Motor

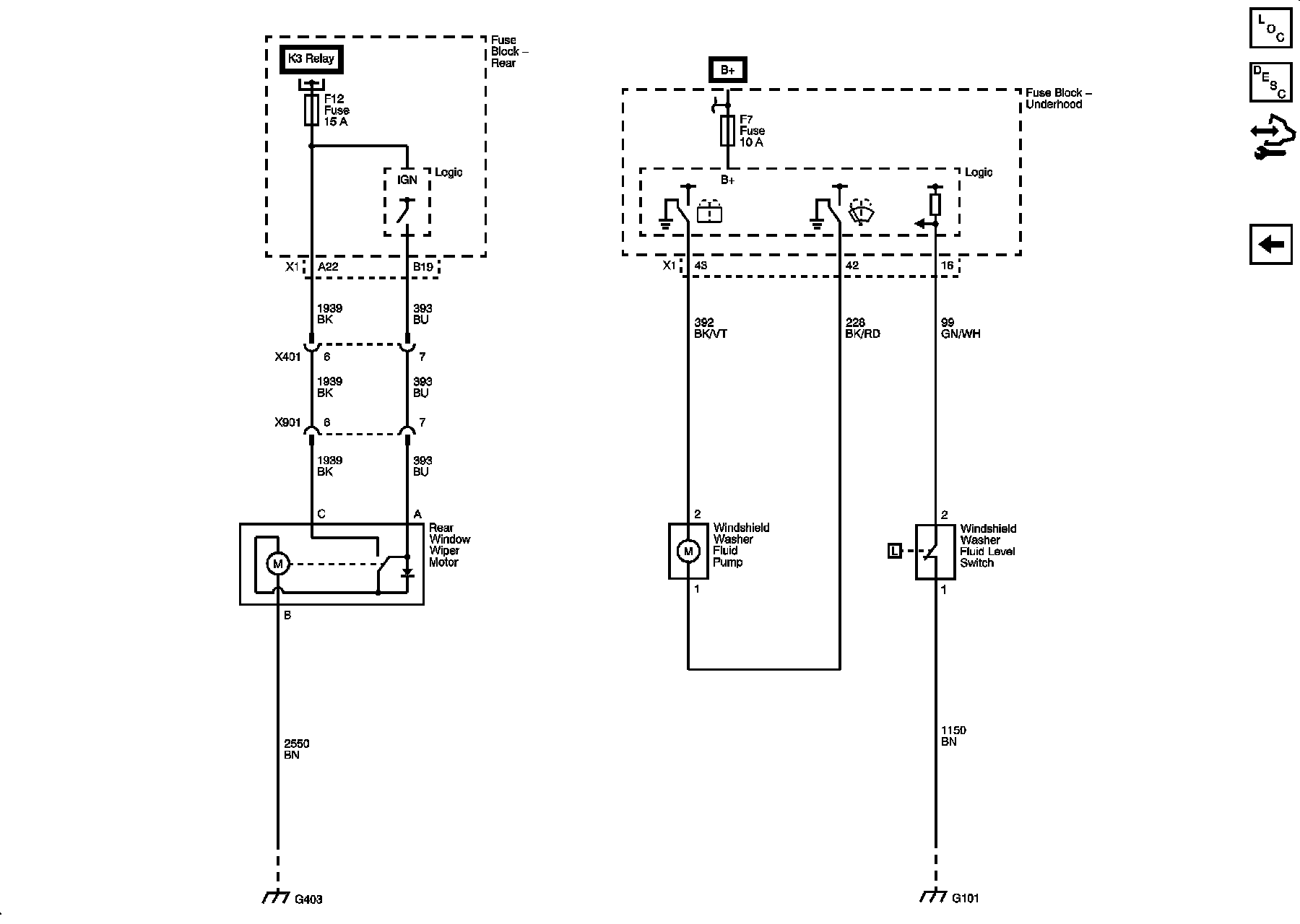

Rear Window Wiper Motor, Windshield Washer Fluid Pump, and Windshield Washer Fluid Level Switch
