Ignition Control Module
Ignition Control Module

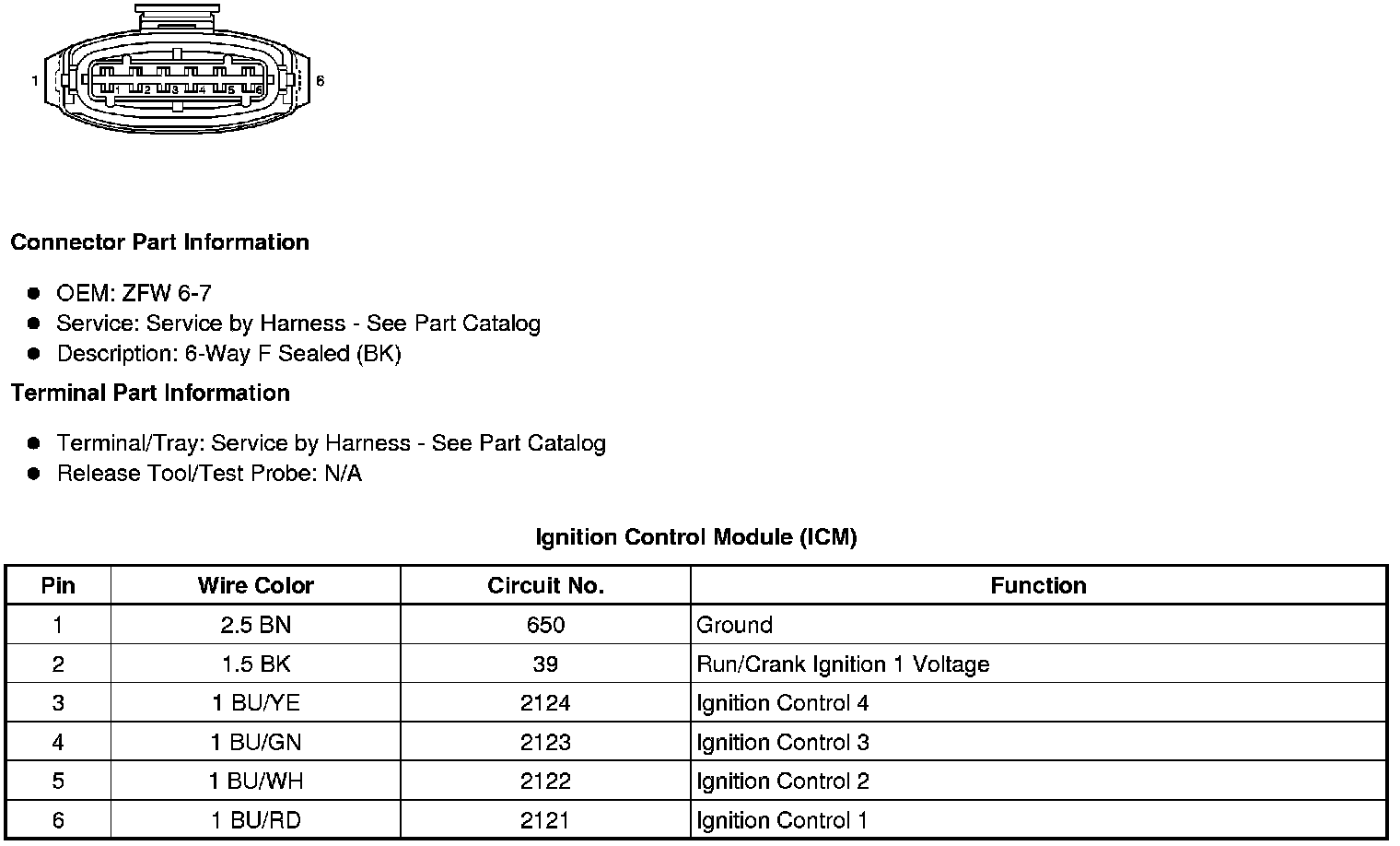

Component Connector End Views
Ignition Control Module (ICM)
