System Diagram




Component Connector End Views

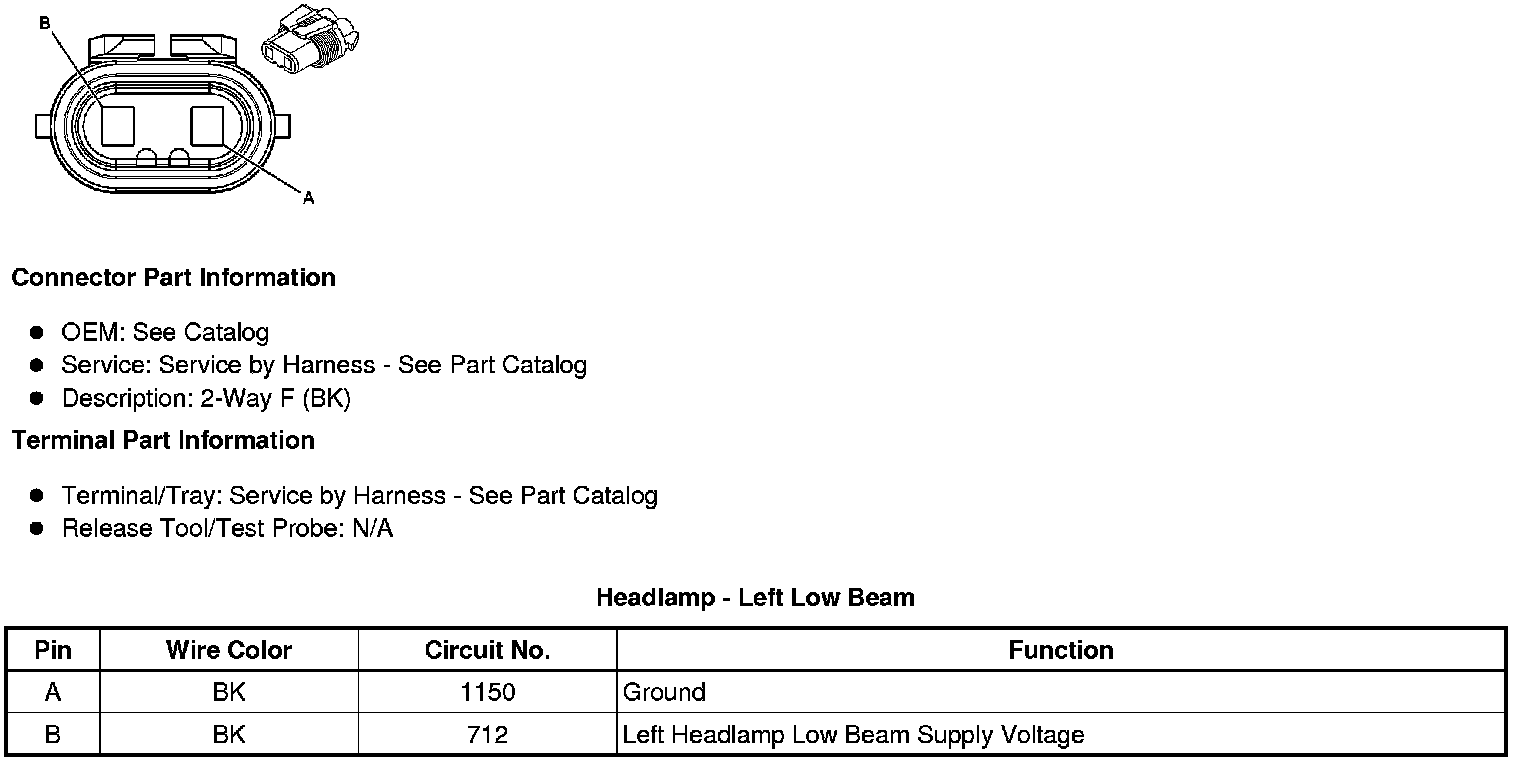

Headlamp - Left Low Beam





Headlamp - Right Low Beam
