Saturn
>>
2009
>>
Astra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Locks
>>
System Diagram
System Diagram
Component Connector End Views

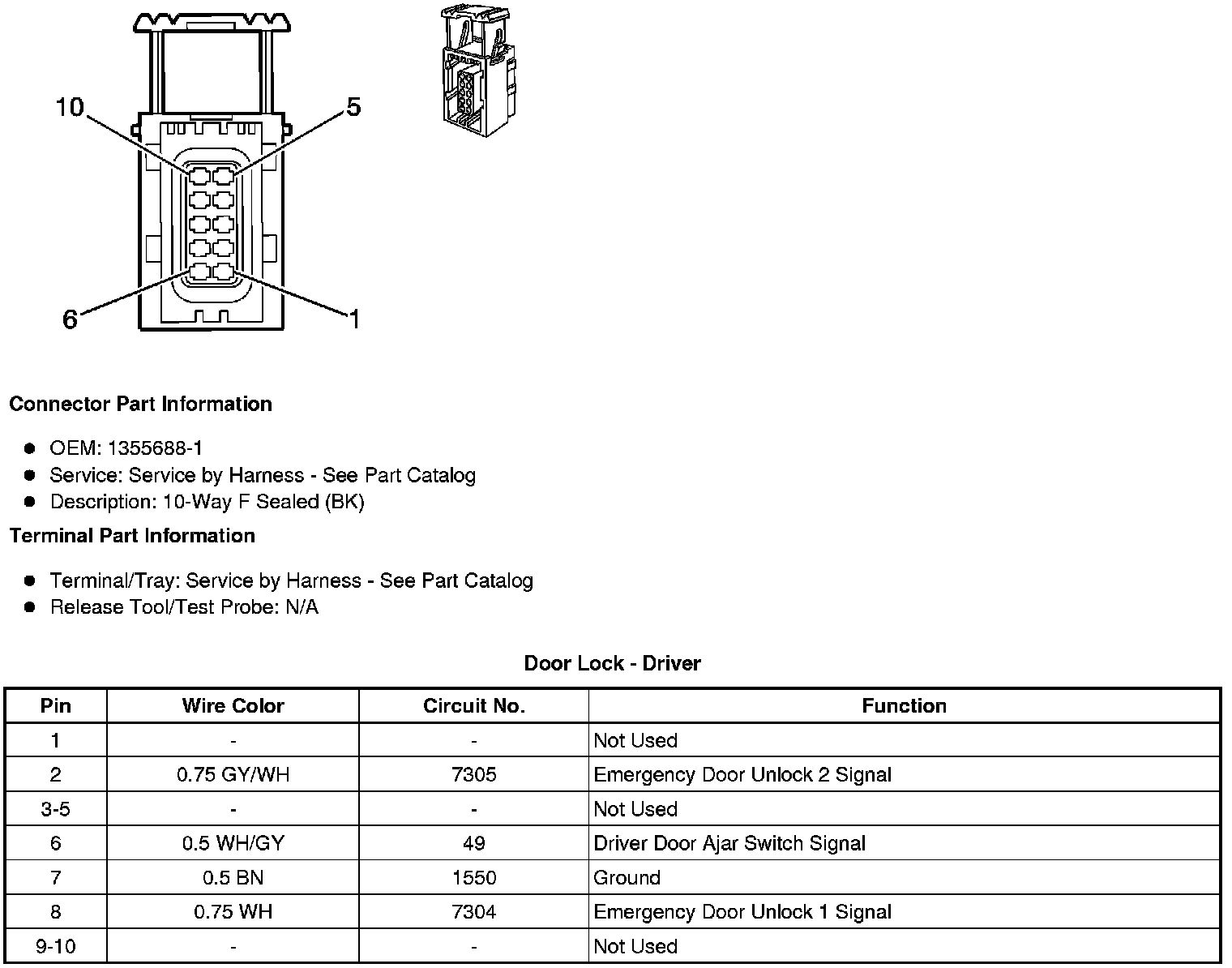

Door Lock - Driver
Door Lock - Left Rear
Door Lock - Passenger

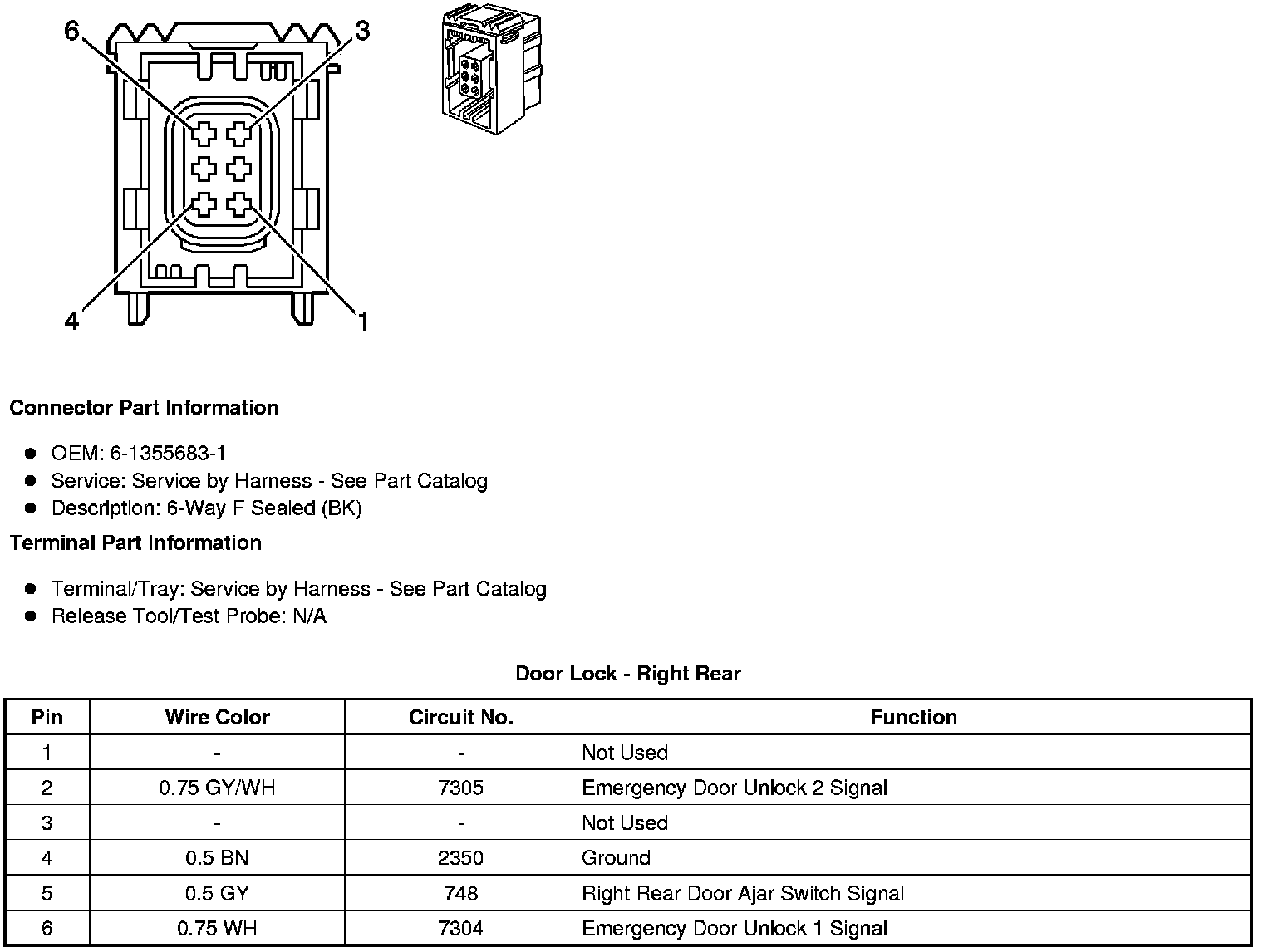

Door Lock - Right Rear
