Seat Latch: Service and Repair

Rear Seat Latch Replacement

Removal Procedure




1. Remove the bench seat.

* Unlock 2 front brackets (1).
* Support the 2 bench seats from the rear bracket.
* Push seat simultaneously backwards and upward.

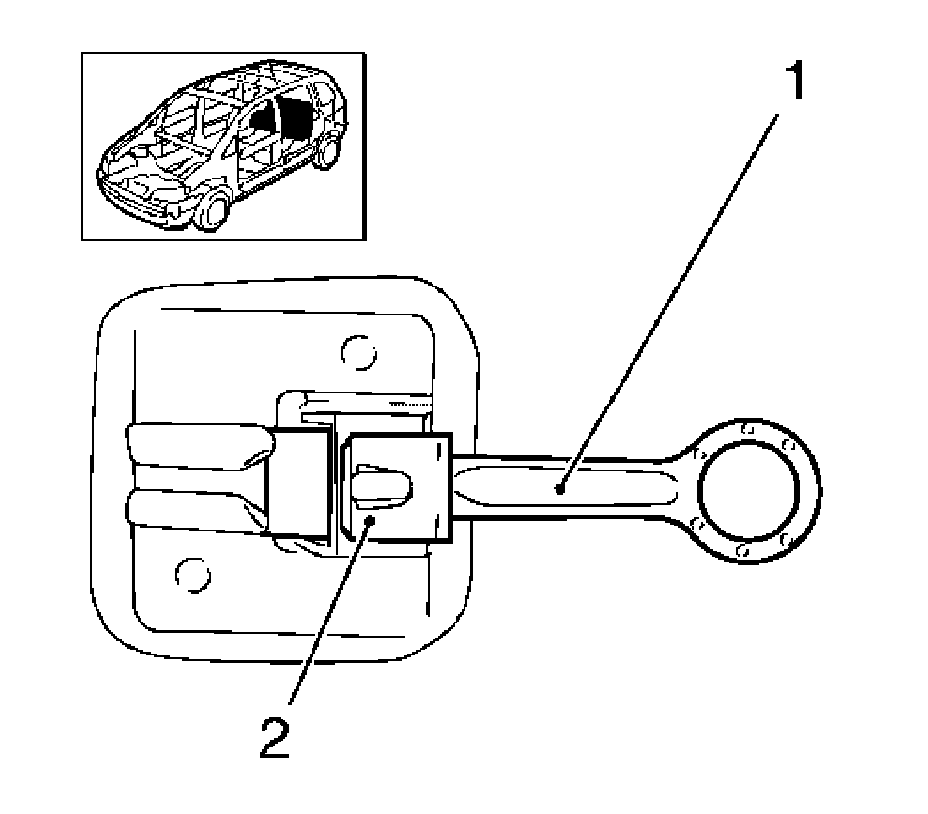

2. Remove the rear bench seat lock (1).
Release clamp (2) and remove loop.

Installation Procedure

1. Install the rear bench seat lock.
Clip in lock.
2. Install the rear seat.
Insert the rear seat cushion and position.
