Front Seat Back Cushion Pad Wire Replacement

Front Seat Back Cushion Pad Wire Replacement

Removal Procedure

1. Remove the front back seat cushion pad. Refer to Front Seat Back Cushion Pad Replacement (Front Seat Back Cushion Pad Replacement).

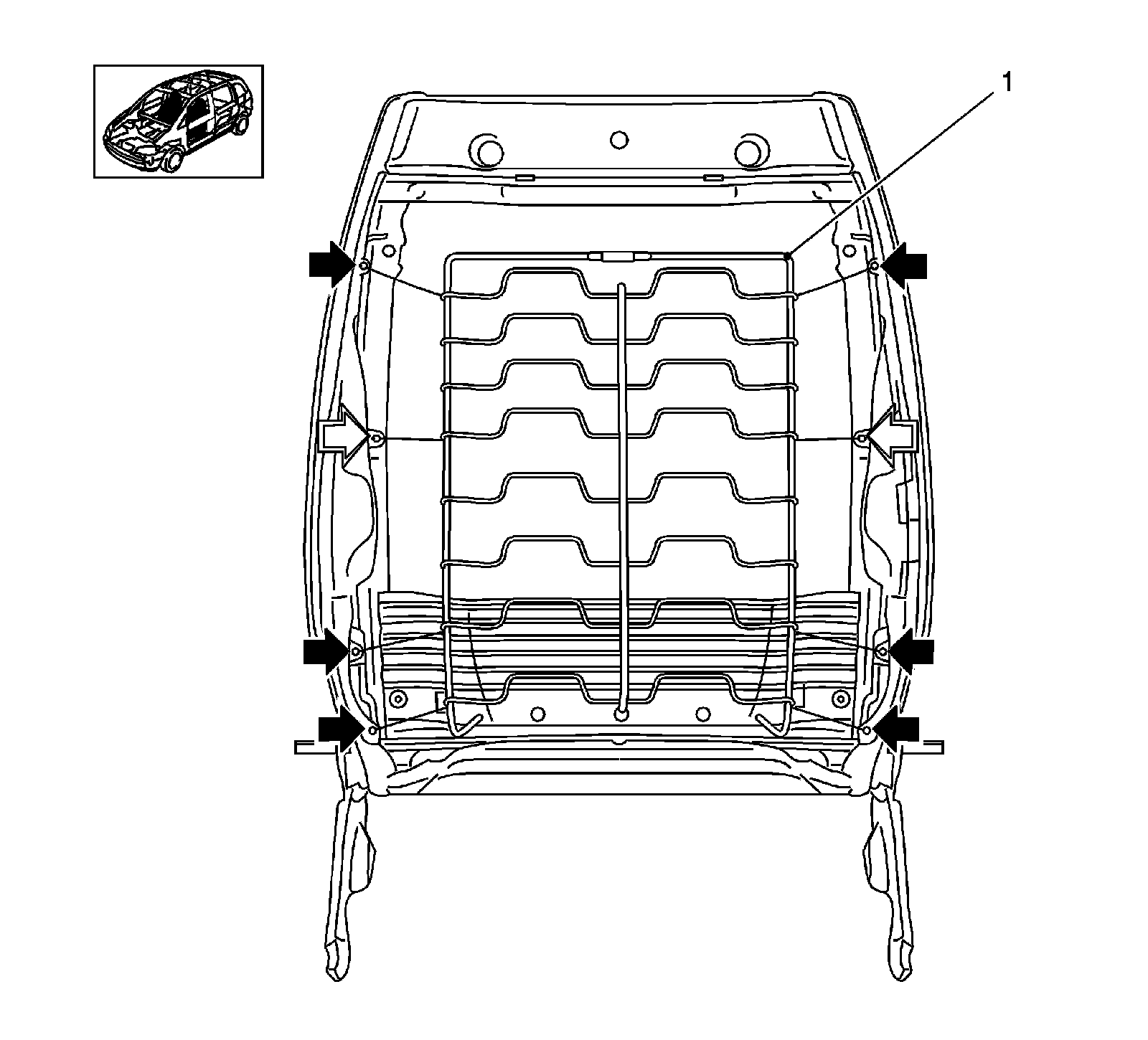

2. Remove the wire mat (1).
Unhook the 8x (arrows).

Installation Procedure

1. Install the wire mat.
Clip in the 8 clips.
2. Install the front back seat cushion pad. Refer to Front Seat Back Cushion Pad Replacement (Front Seat Back Cushion Pad Replacement).
