Driver or Passenger Seat Head Restraint Replacement (Standard)




Driver or Passenger Seat Head Restraint Replacement (Standard)

Removal Procedure

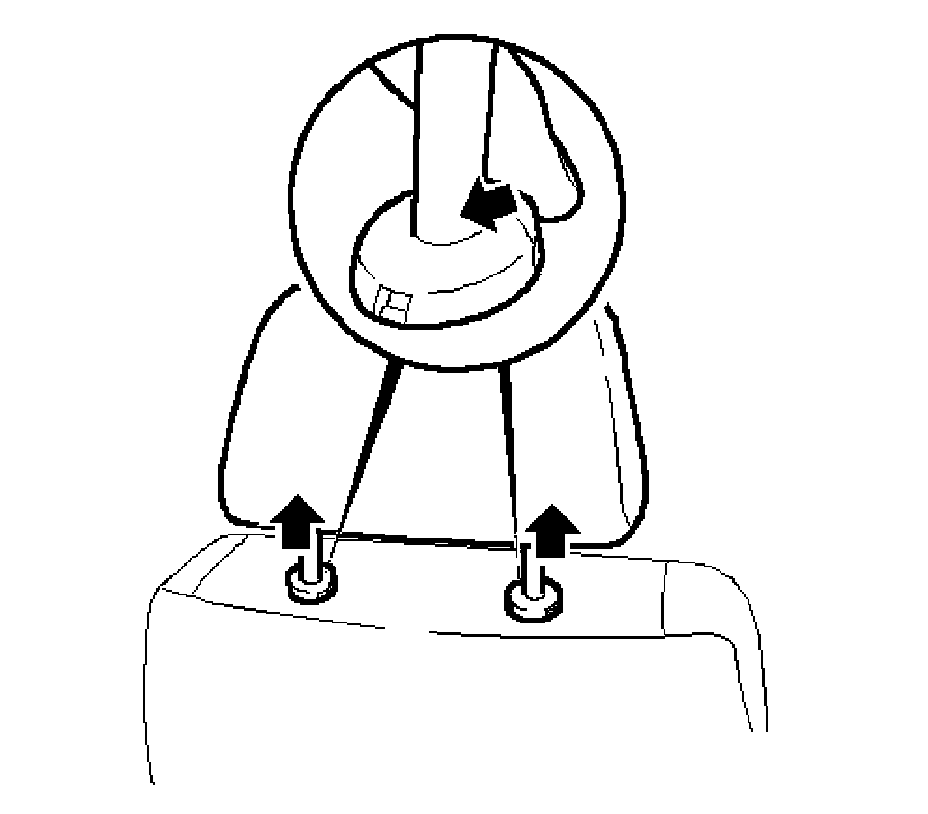

1. Remove the front seat head restraint.
Press in the retaining clamp.
2. Remove the head restraint upwards.

Installation Procedure

1. Install the front seat headrest.
2. Engage the head restraint (audible click).
