Outside Rearview Mirror Opening Cover Replacement

Outside Rearview Mirror Opening Cover Replacement

Removal Procedure




1. Remove the rearview mirror opening cover.

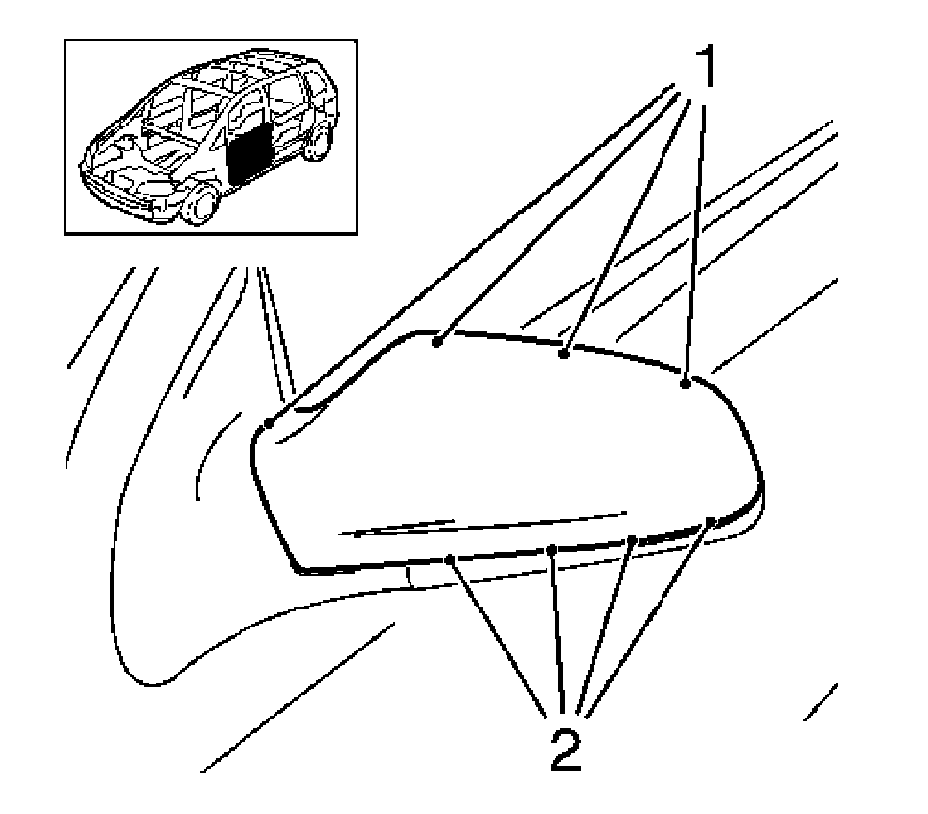

2. Loosen the 4 top clips (1).
3. Release the 4 lower clips (2).

Installation Procedure

Install the rearview mirror opening cover.

* Install the 4 lower clips.
* Install the 4 top clips.
