Rear Compartment Floor Stowage Compartment Tray Replacement - Left Side

Rear Compartment Floor Stowage Compartment Tray Replacement - Left Side

Removal Procedure




1. Remove the rear compartment carpet (1).




2. Remove the trailer hitch ball head.

* Loosen the fastening belt (1).
* Remove the ball head (2).

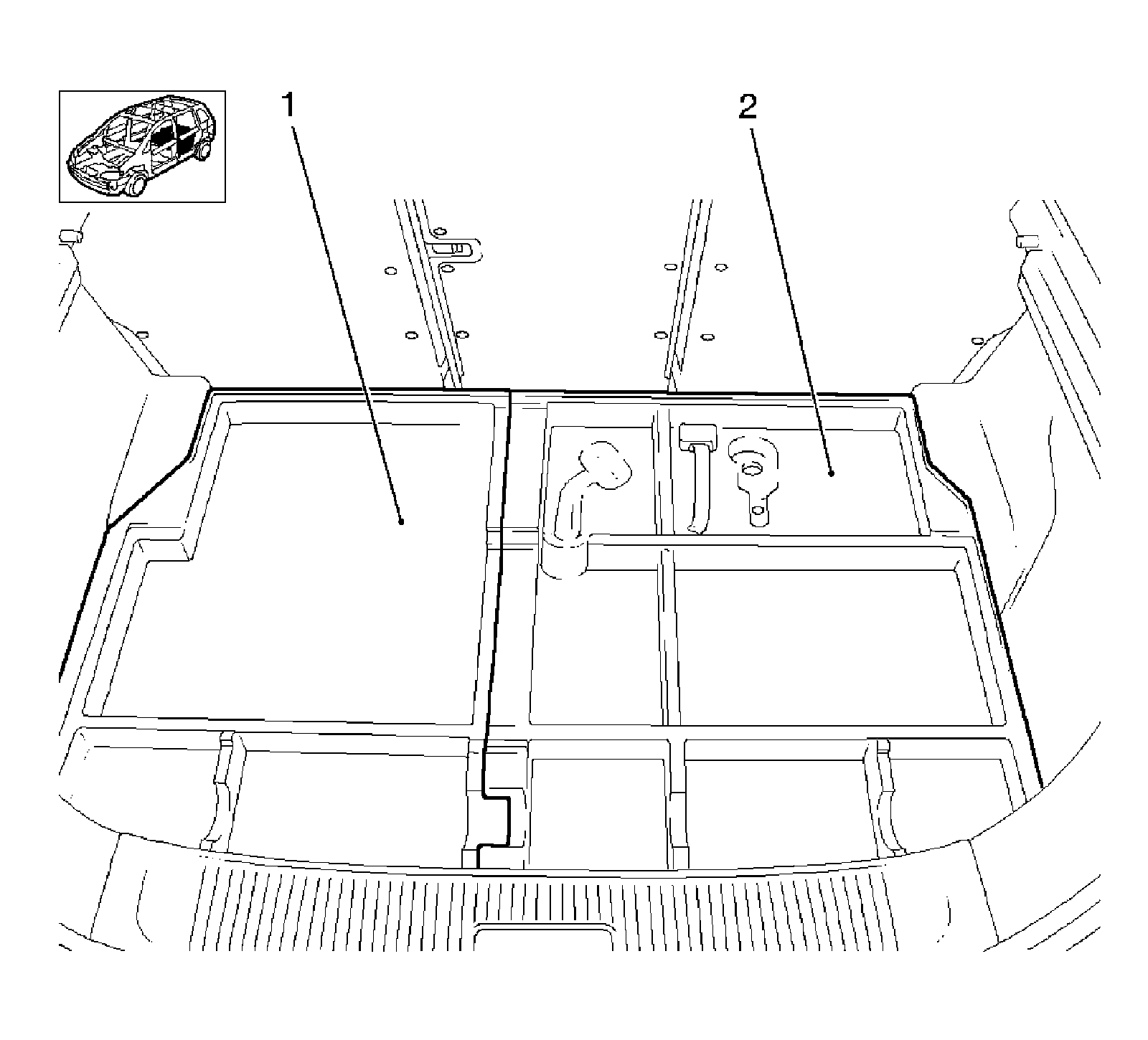

3. Remove the rear compartment storage tray-left side.

* Lift the right storage tray (2).
* Remove the left storage tray (1).

Installation Procedure

1. Install the rear compartment storage tray-left side.
Insert the storage tray.
2. Install the trailer hitch ball head.

* Thread the belt through eye.
* Insert the ball.
* Tighten the belt.

3. Install the rear compartment carpet.
