Instrument Panel Wiring Harness Replacement

Instrument Panel Wiring Harness Replacement

Removal Procedure

Warning: Refer to Battery Disconnect Warning (Service Precautions).

1. Disconnect the battery.
2. Remove the instrument panel (I/P) trim panel. Refer to Instrument Panel Trim Panel Replacement (Service and Repair).
3. Remove the front floor console. Refer to Front Floor Console Replacement (Service and Repair).

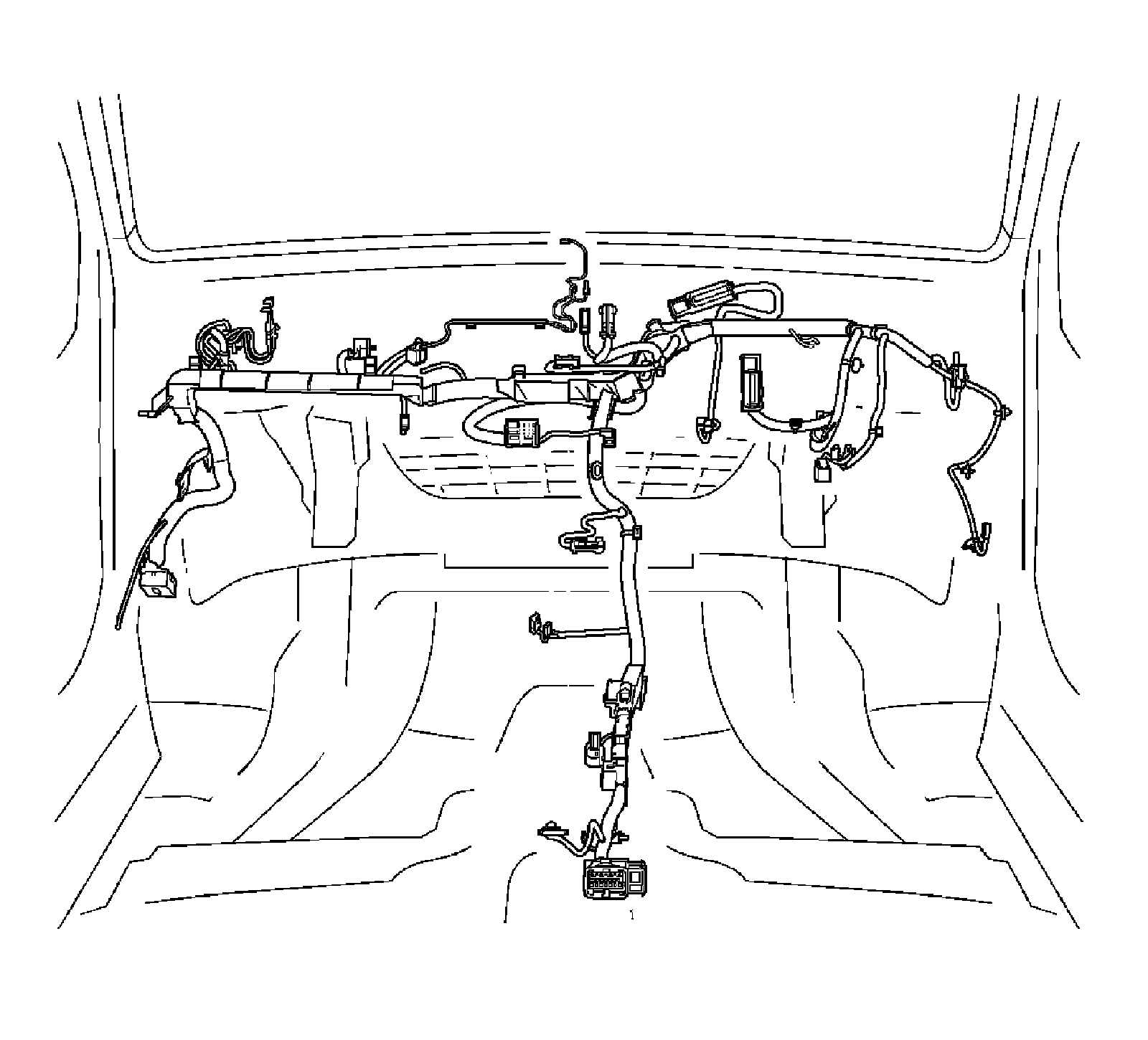

4. Remove the I/P padding wiring harness (LAD).

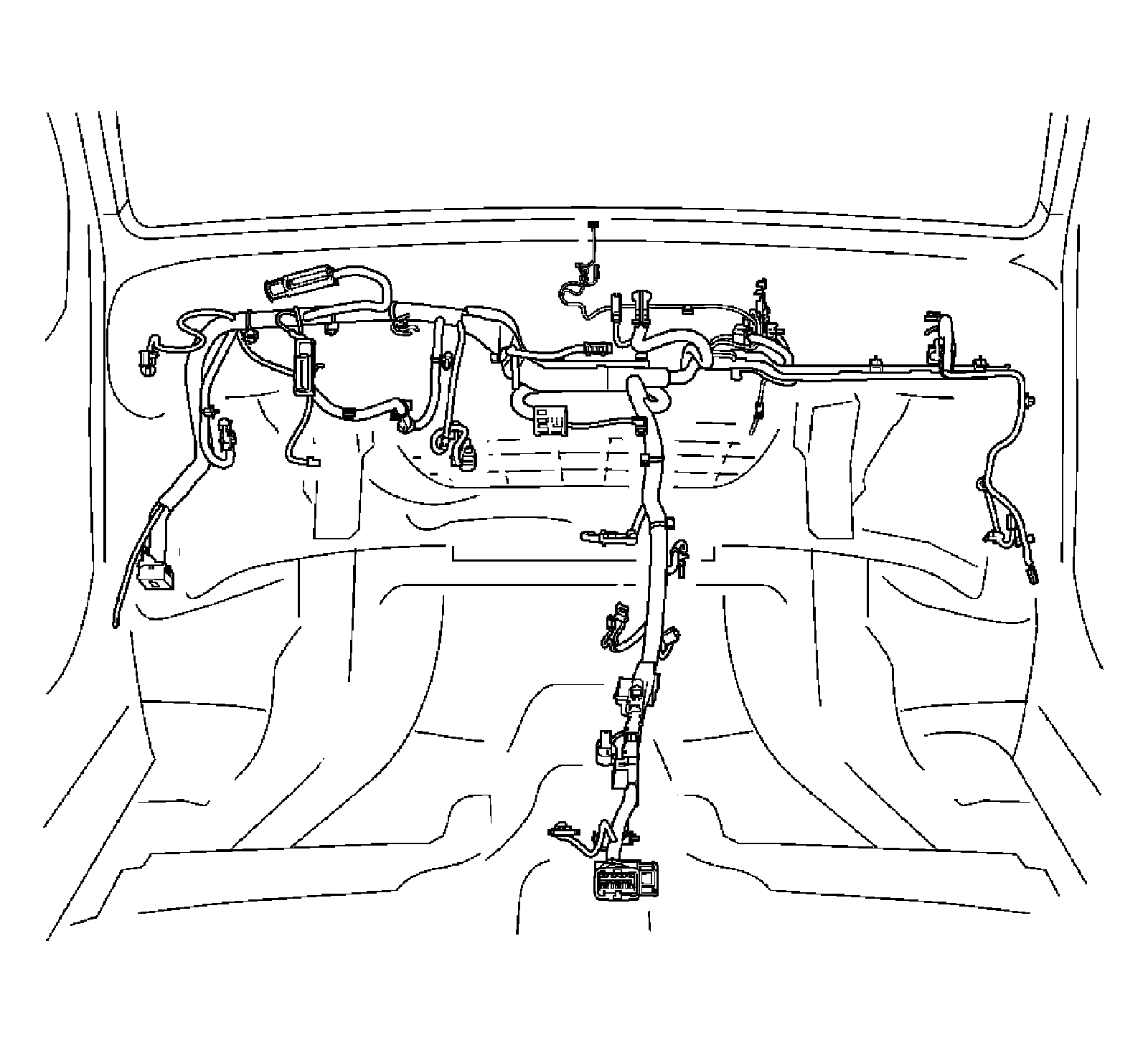

5. Remove the I/P padding wiring harness (RHD).

Installation Procedure

1. Install the I/P padding wiring harness.
2. Install the I/P trim panel. Refer to Instrument Panel Trim Panel Replacement (Service and Repair).
3. Install the front floor console. Refer to Front Floor Console Replacement (Service and Repair).
4. Connect the battery.
5. For programming procedures, refer to Control Module References (Programming and Relearning).
