Instrument Panel Retainer Replacement - Right Side

Instrument Panel Retainer Replacement - Right Side

Removal Procedure

1. Remove the front floor console. Refer to Front Floor Console Replacement (Service and Repair).




2. Remove the instrument panel (I/P) bracket - right side.

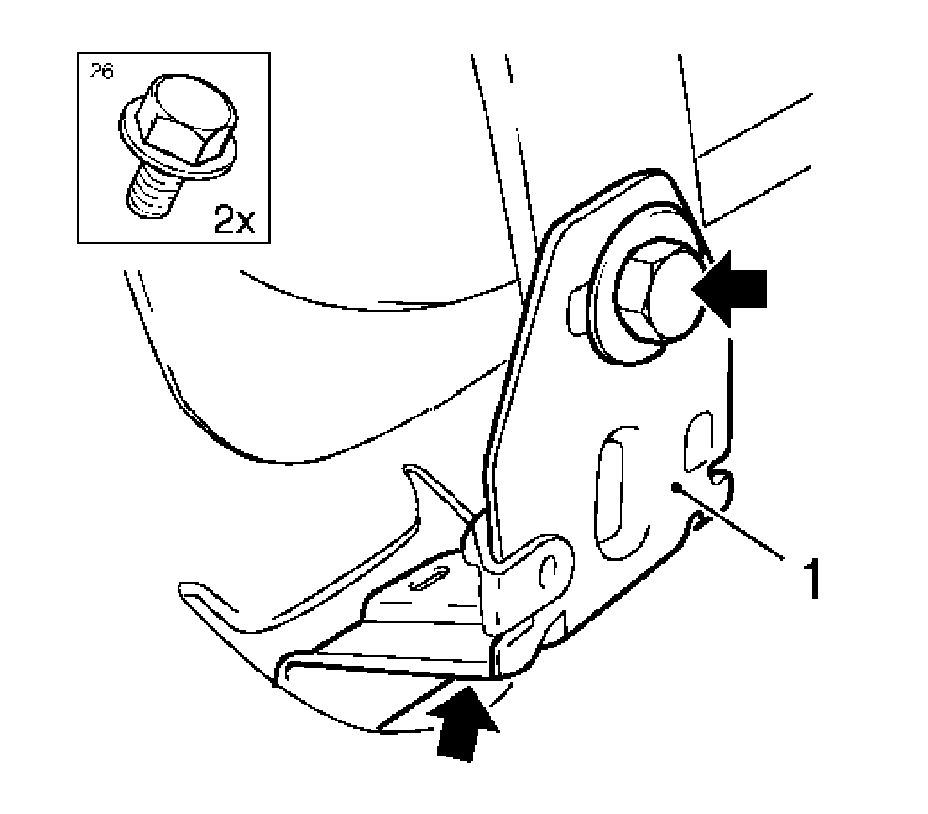

1. Remove the 2 bolts (arrows).
2. Remove the I/P retainer (1).

Installation Procedure

1. Install the I/P retainer, right side.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the I/P retainer.

Tighten the 2 bolts to 13 Nm (113 lb in).

3. Install the front floor console. Refer to Front Floor Console Replacement (Service and Repair).
