Front Side Door Wiring Harness Replacement

Front Side Door Wiring Harness Replacement

Removal Procedure

Warning: Refer to Battery Disconnect Warning (Service Precautions)

1. Disconnect the battery.
2. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) (Service and Repair)Front Side Door Trim Panel Replacement (Sedan) (Service and Repair).
3. Remove the water vapor barrier.

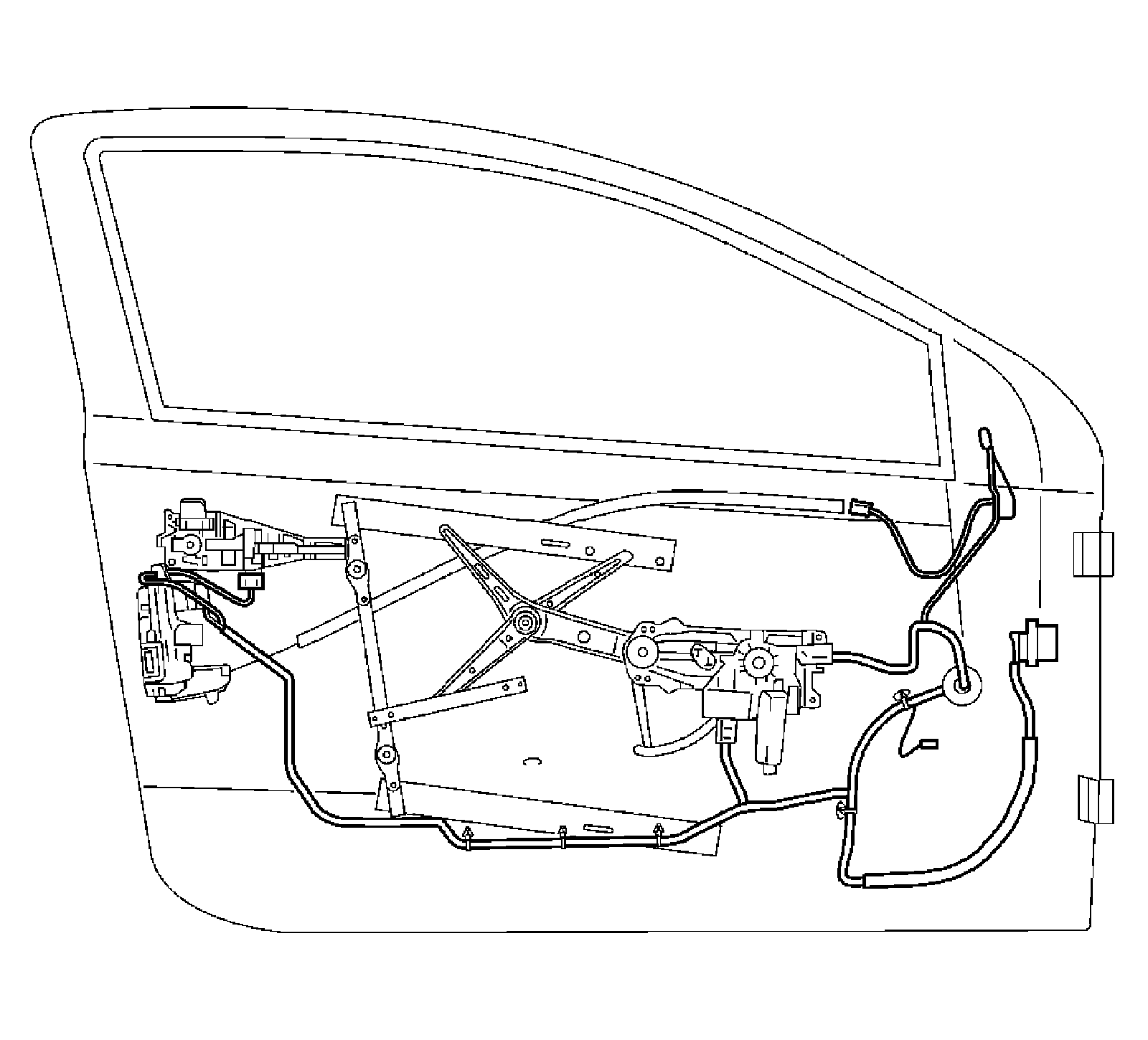

4. Remove the front door wiring harness.

Installation Procedure

1. Install the front door wiring harness.
2. Install the water vapor barrier.
3. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) (Service and Repair)Front Side Door Trim Panel Replacement (Sedan) (Service and Repair).
4. Connect the battery.
5. For reprogramming procedures, refer to Control Module References (Programming and Relearning).
