Theft Deterrent Horn Replacement

Theft Deterrent Horn Replacement

Removal Procedure

1. Remove the windshield air inlet screen (1).




2. Remove the wiper arms (2).

* Remove the 2 covers.
* Remove the 2 nuts.
* Remove the 2 washers.
* Remove the 2 windshield wiper arms from the shaft.

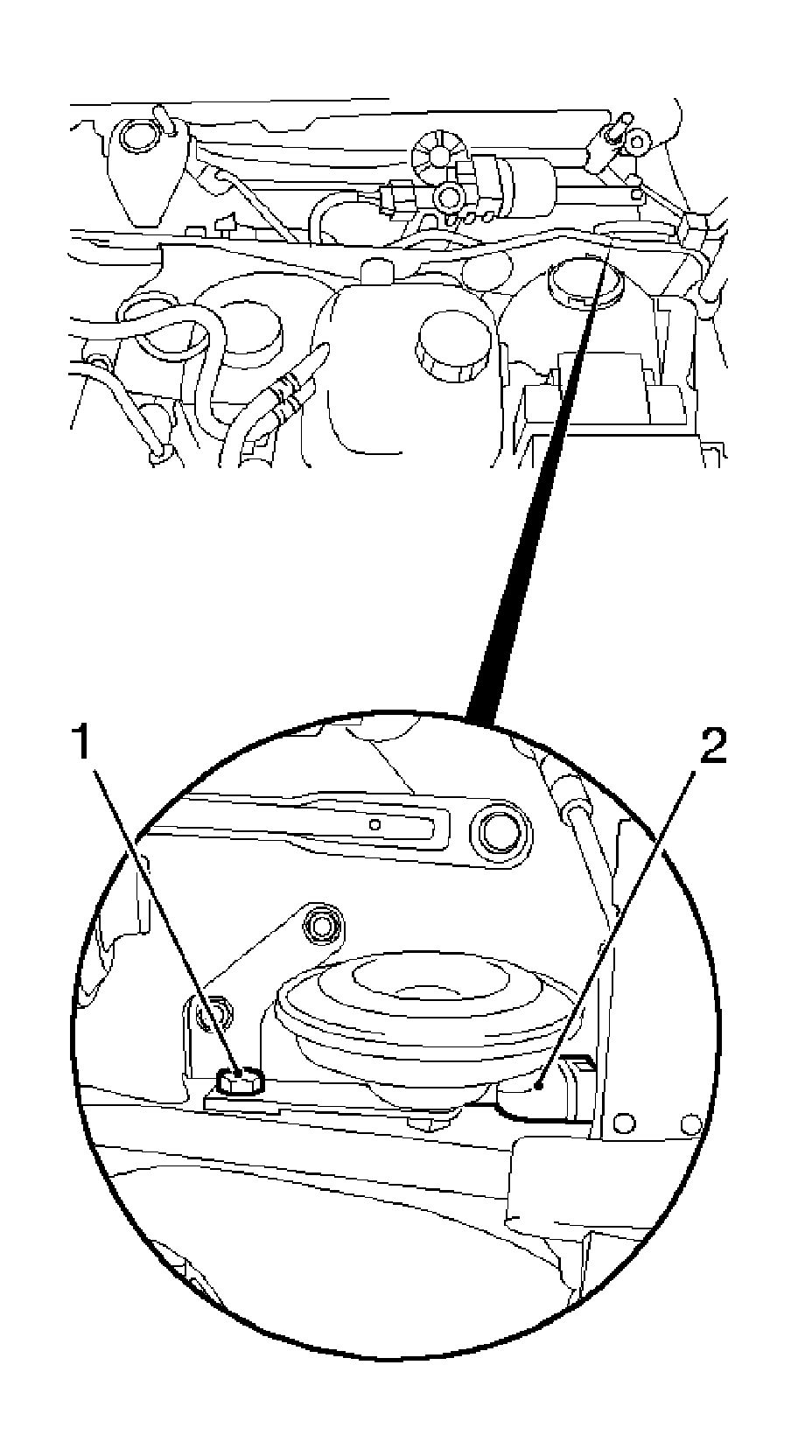

3. Remove the horn.

* Remove the nut (1).
* Disconnect the wiring harness plug (2).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the horn.
Connect the wiring harness plug.

Tighten the nut to 5 Nm (44 lb in).

2. Install the windshield air inlet screen.

* Install the hose for the windshield wash system.
* Install the 5 clips.

3. Install the windshield wiper arms.

Note: Ensure correct installation position of the windshield wiper arms.

* Position the 2 windshield wiper arms on the shaft.
* Install the 2 washers.

Tighten the 2 nuts to 17 Nm (13 lb ft).

* Install the 2 covers.

4. Install the windshield air inlet screen.
