X162

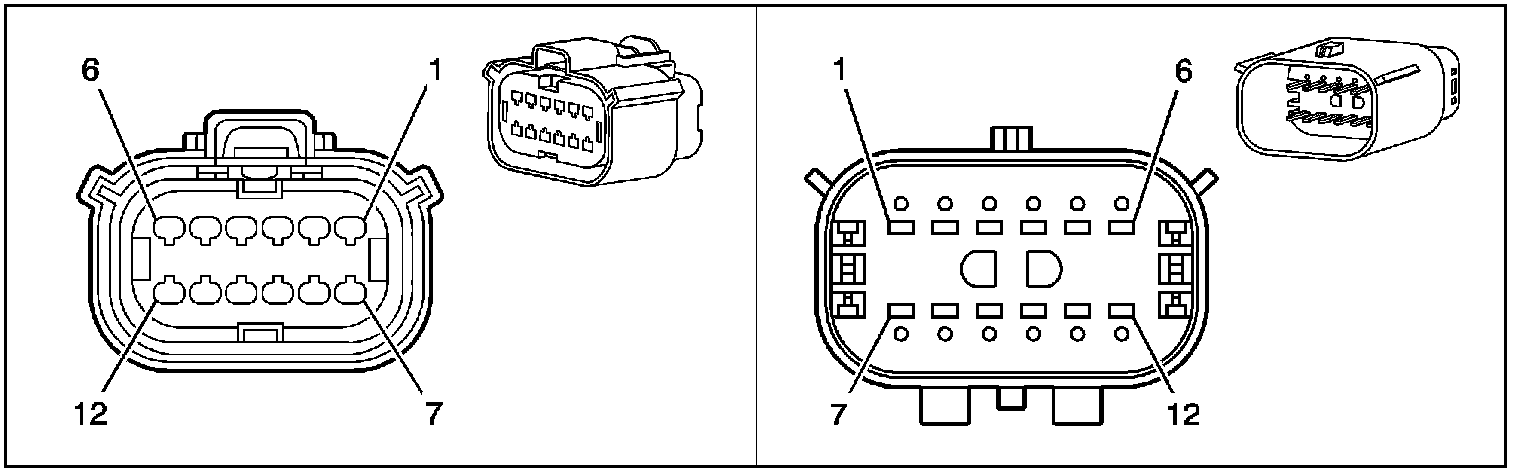

Inline Harness Connector End Views

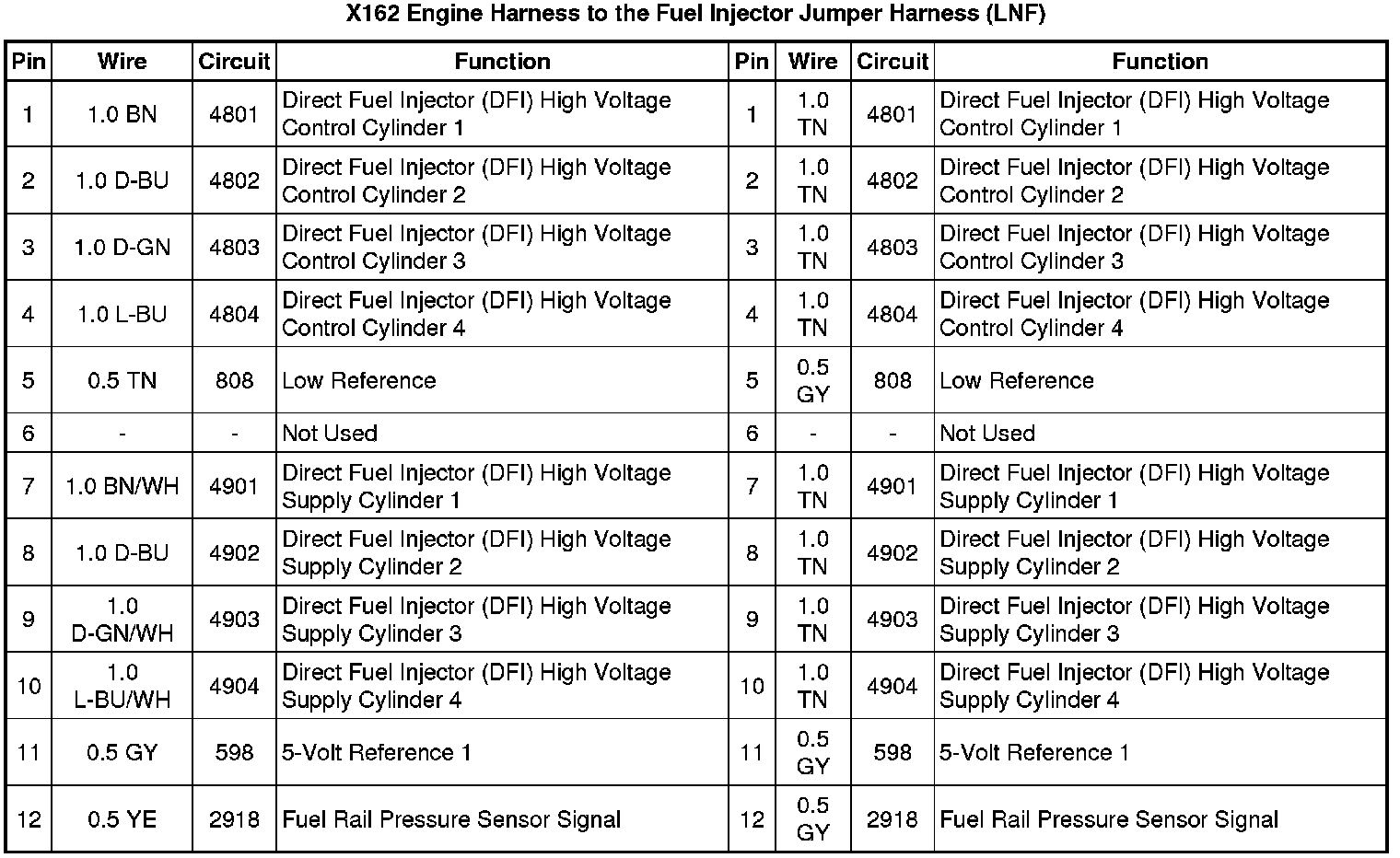

X162 Engine Harness to the Fuel Injector Jumper Harness (LNF)
