X102
X102

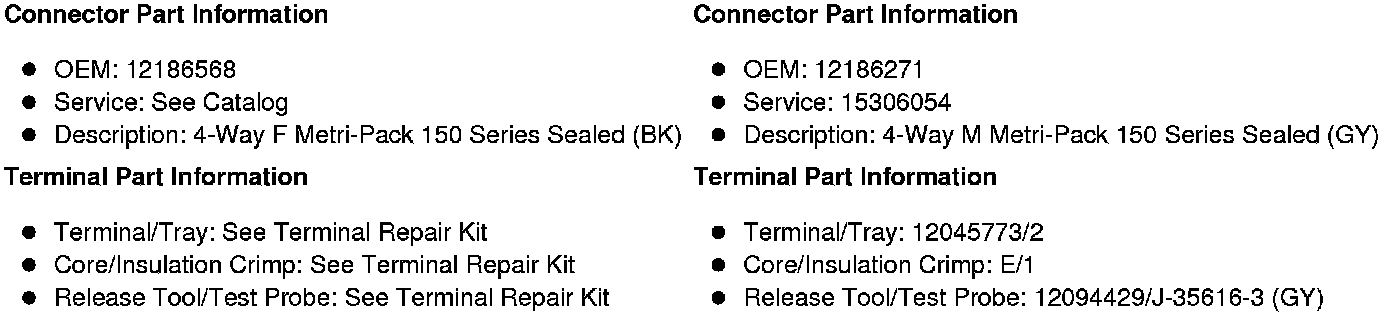

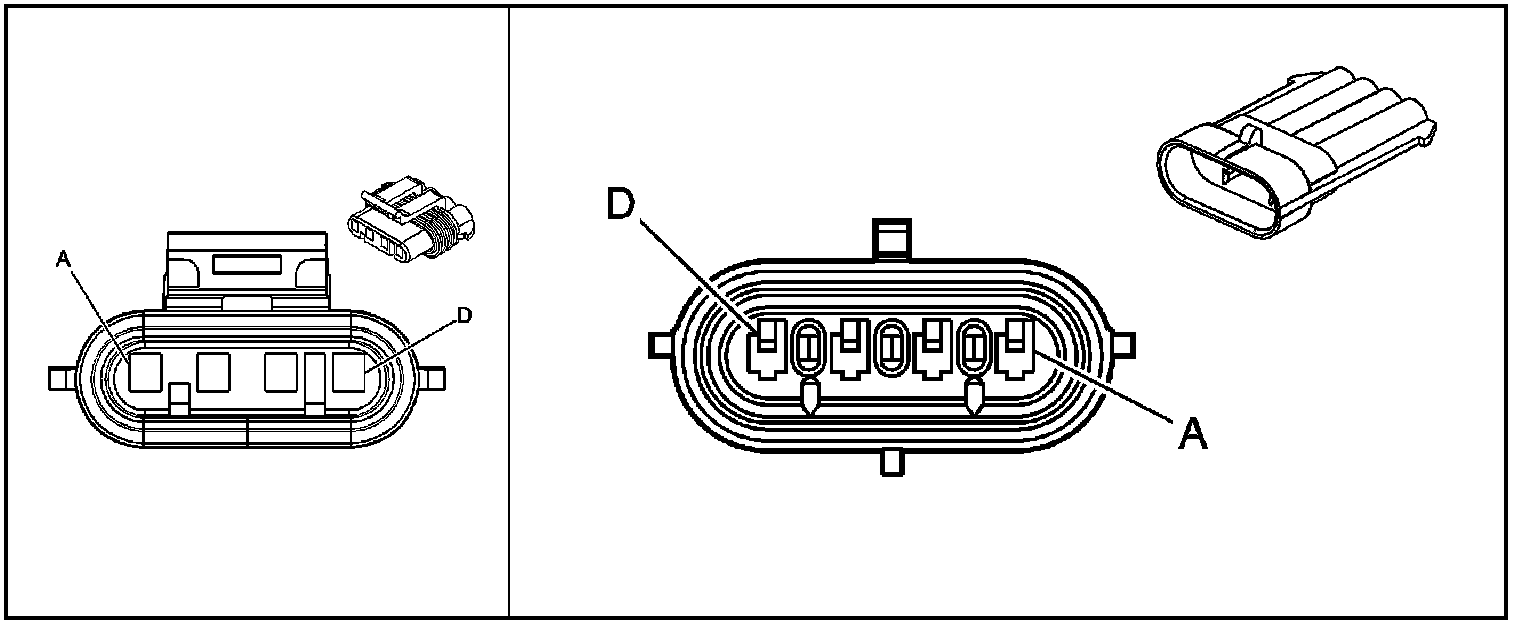

Inline Harness Connector End Views

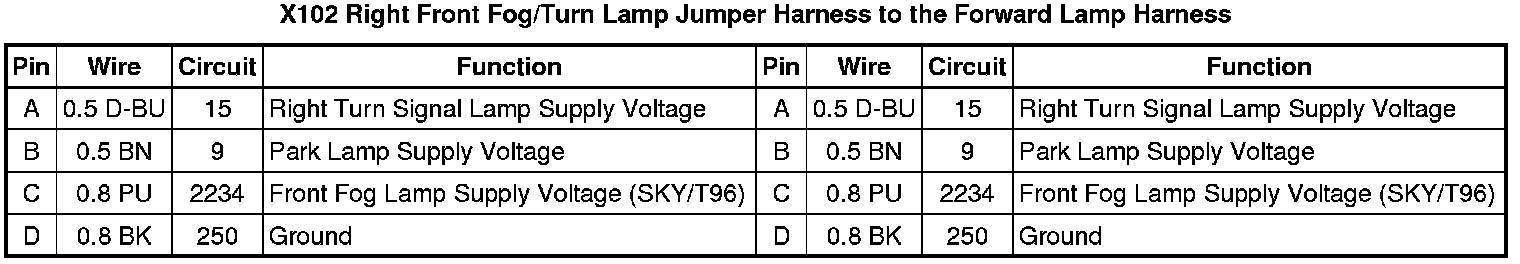

X102 Right Front Fog/Turn Lamp Jumper Harness to the Forward Lamp Harness
