Daytime Running Lamps (DRL) Inoperative

Daytime Running Lamps (DRL) Inoperative

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

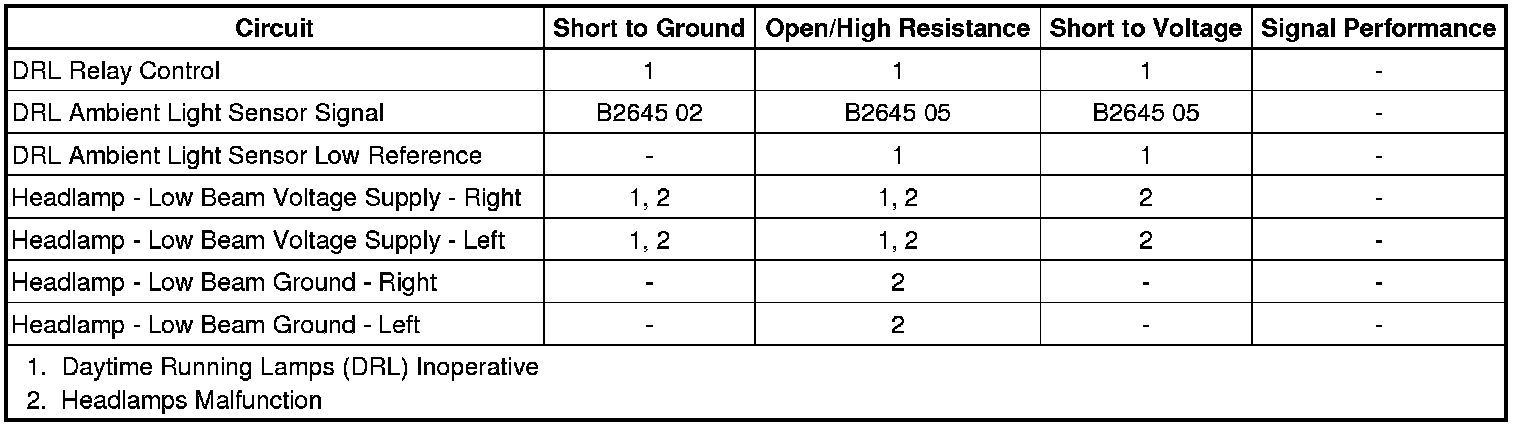

Diagnostic Fault Information






Circuit/System Description

The ambient light sensor is a light sensitive transistor that varies the voltage signal to the body control module (BCM) based on outside lighting conditions. When the ambient light sensor indicates daytime conditions, the body control module (BCM) grounds the DRL relay control circuit causing voltage to flow from the DRL fuse which energizes the DRL relay. With the DRL relay energized, the switch contacts close and voltage is applied to the left and right low beam headlamps. Any function or condition that turns on the headlamps will cancel DRL operation.


Reference Information
Schematic Reference

Headlights/Daytime Running Lights (DRL) Schematics (Headlights/Daytime Running Lights (DRL) Schematics)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Exterior Lighting Systems Description and Operation (Exterior Lighting Systems Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning)


Circuit/System Verification

Ignition ON, verify with a scan tool the park brake switch parameter displays INACTIVE.

If not the specified value, refer to Symptoms - Hydraulic Brakes (Symptoms - Hydraulic Brakes) .



Circuit/System Testing

1. Ignition OFF, disconnect the DRL relay.
2. Ignition ON, verify that a test lamp does not illuminate between the relay switch B+ output circuit and ground.

• If the test lamp illuminates, test the relay switch B+ output circuit for a short to voltage.

3. Verify that a test lamp illuminates between the relay coil B+ circuit and ground.

• If the test lamp does not illuminate, test the relay coil B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the relay coil B+ circuit fuse is open, test the relay switch B+ output circuit for a short to ground. If the circuit tests normal, test or replace the DRL relay.

4. Verify that a test lamp illuminates between the relay switch B+ circuit and ground.

• If the test lamp does not illuminate, test the relay switch B+ circuit for an open/high resistance.

5. Connect a test lamp between the relay coil B+ circuit and the relay coil control circuit.
6. Command the DRL ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the relay coil control circuit for a short to ground. If the circuit tests normal, replace the BCM.


• If the test lamp is always OFF, test the relay coil control circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

7. If all circuits test normal, replace the DRL relay.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center))
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
