Power Distribution Diagram 8

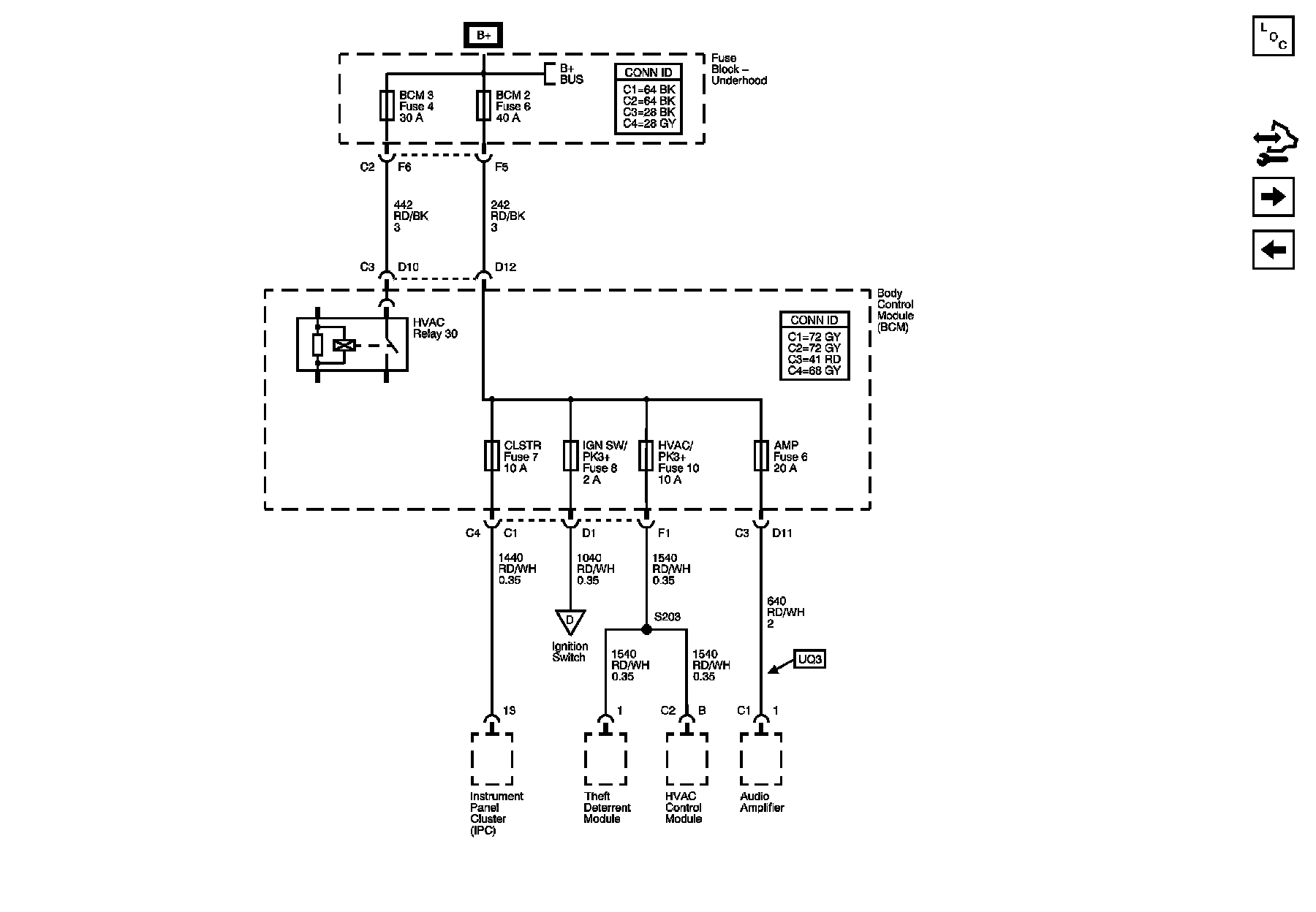

Power Distribution Schematics



BCM2 , BCM3, AMP, CLSTR, HVAC/PK3 and IGN SW/PK3 Fuses
