Power Distribution Diagram 7

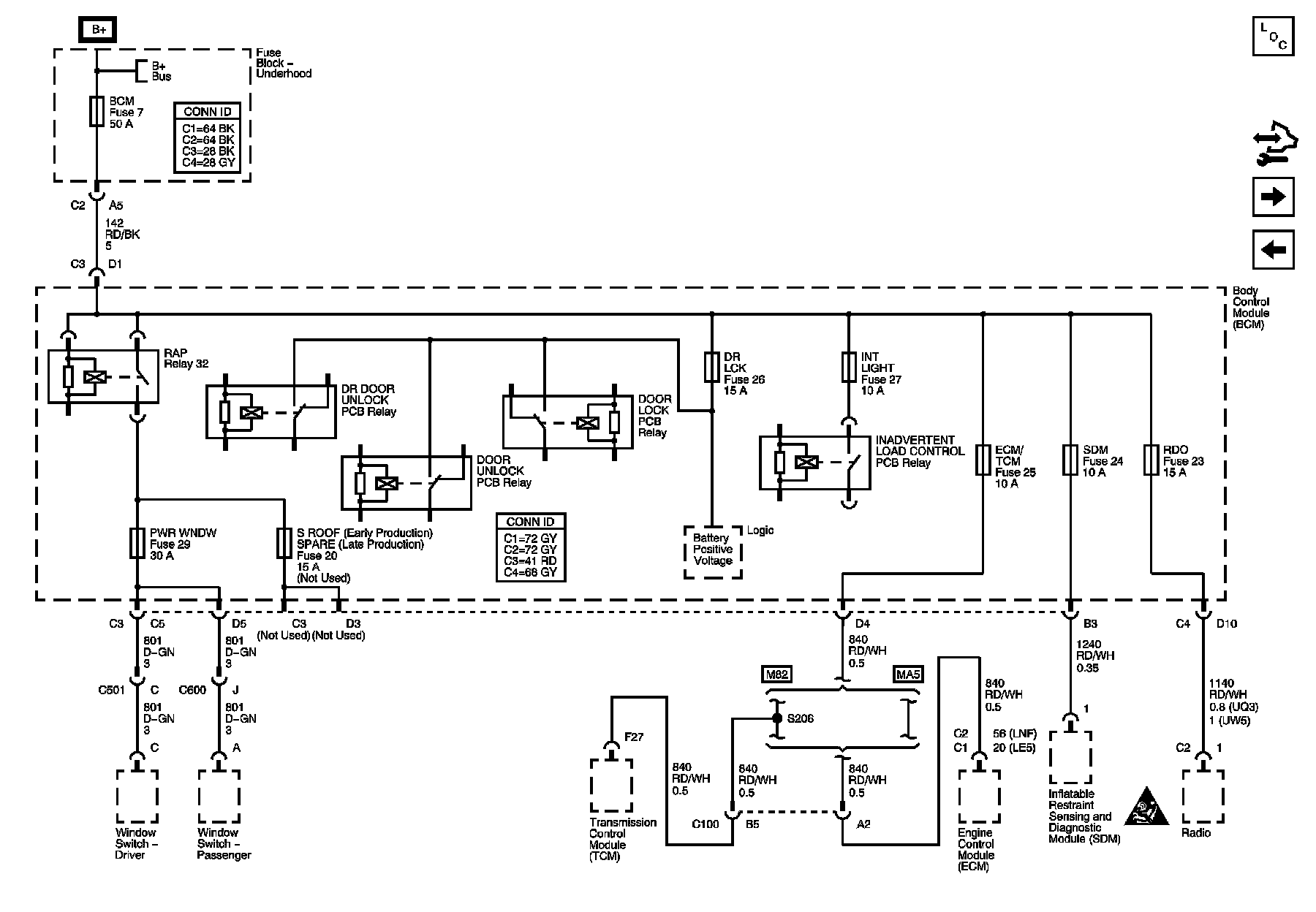

Power Distribution Schematics



DOOR LOCK, ECM/TCM, INT/LPS, WINDOWS, RADIO, SDM Fuses
