Power Distribution Diagram 4
Power Distribution Diagram 4

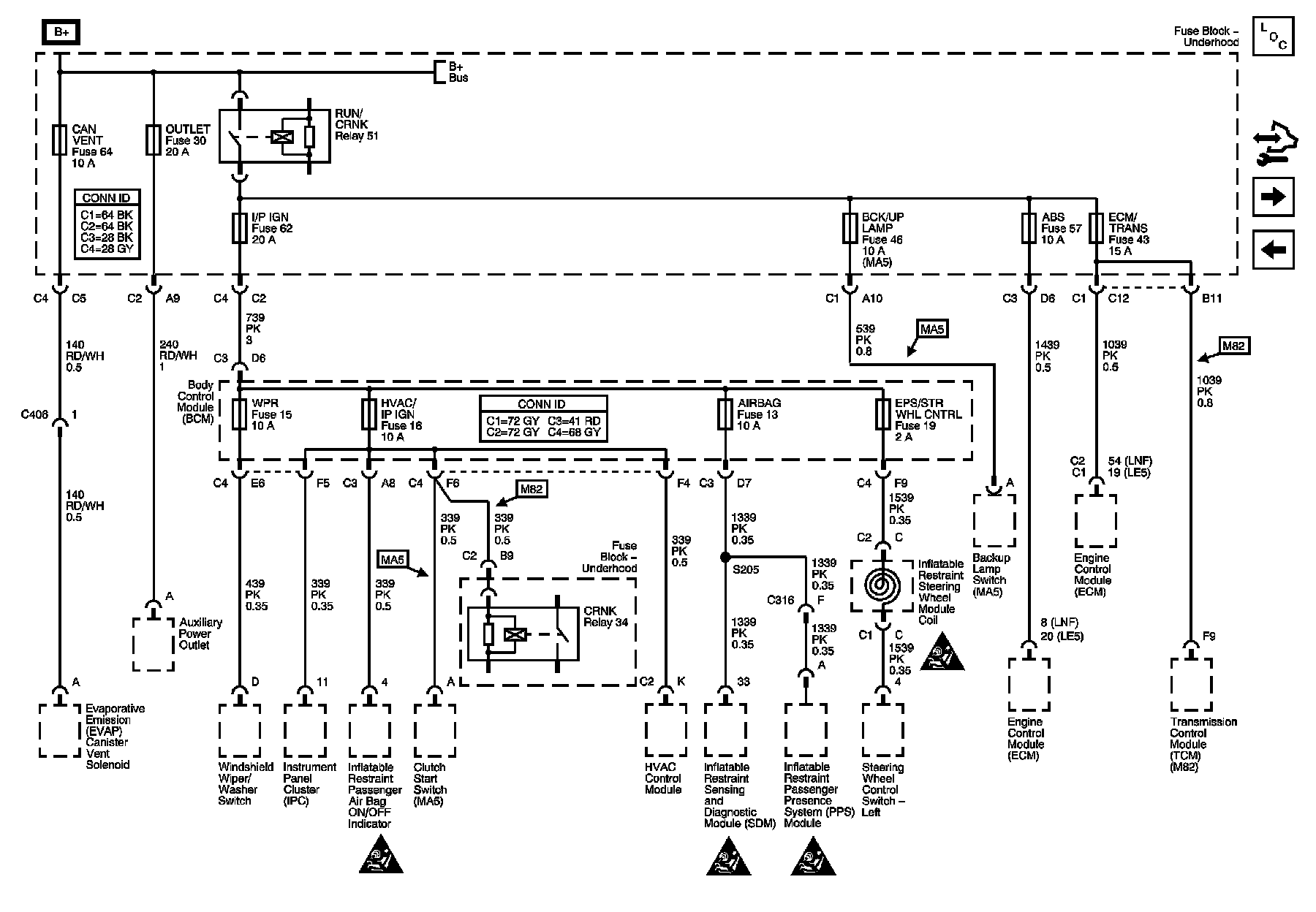

Power Distribution Schematics
ABS, BCK/UP Lamp, Can Vent, ECM/Trans, I/P IGN, Air Bag, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR Fuses
