Antilock Brakes / Traction Control Systems



Antilock Brake System Schematics

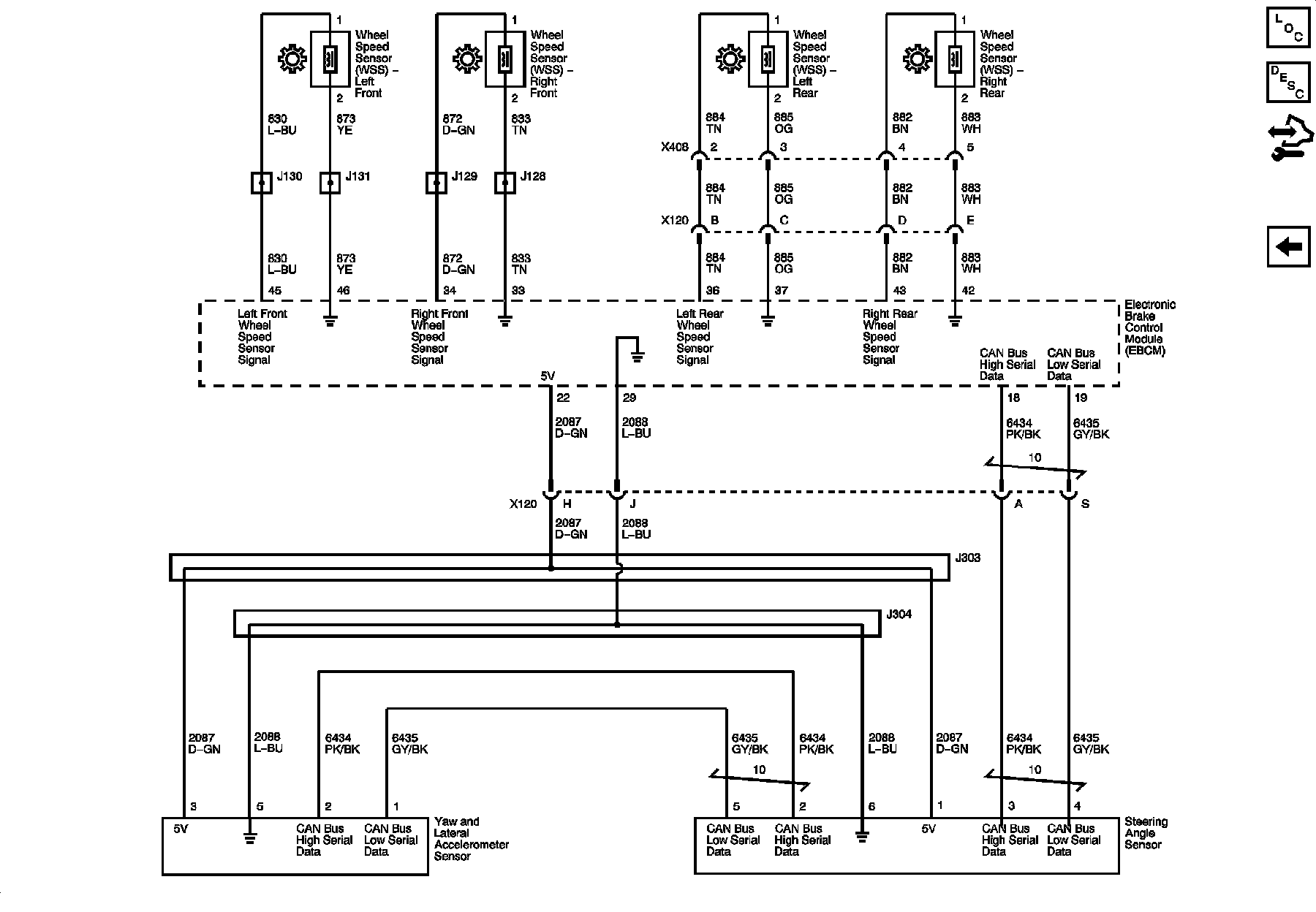

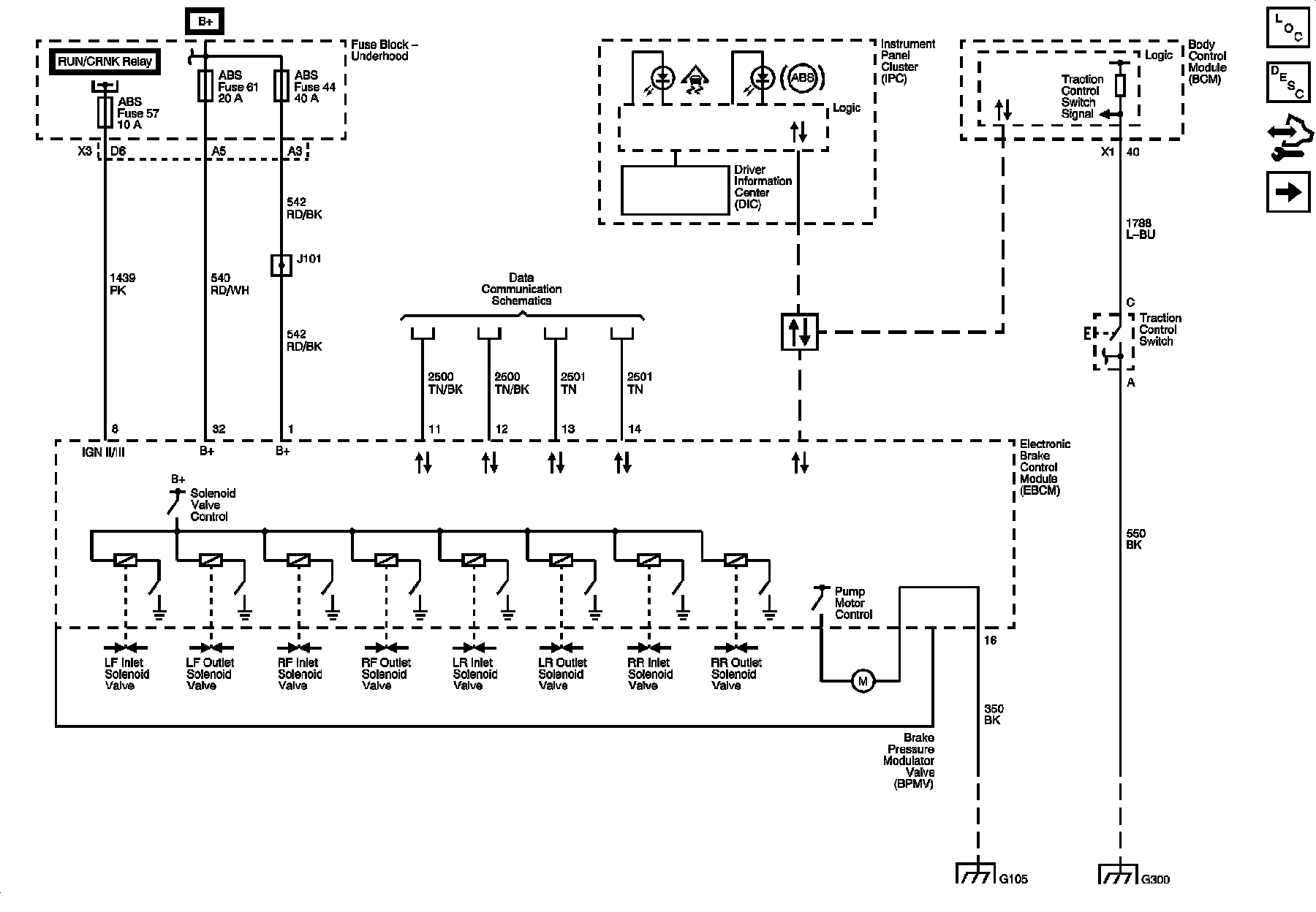

Power, Ground and Wheel Speed Sensors

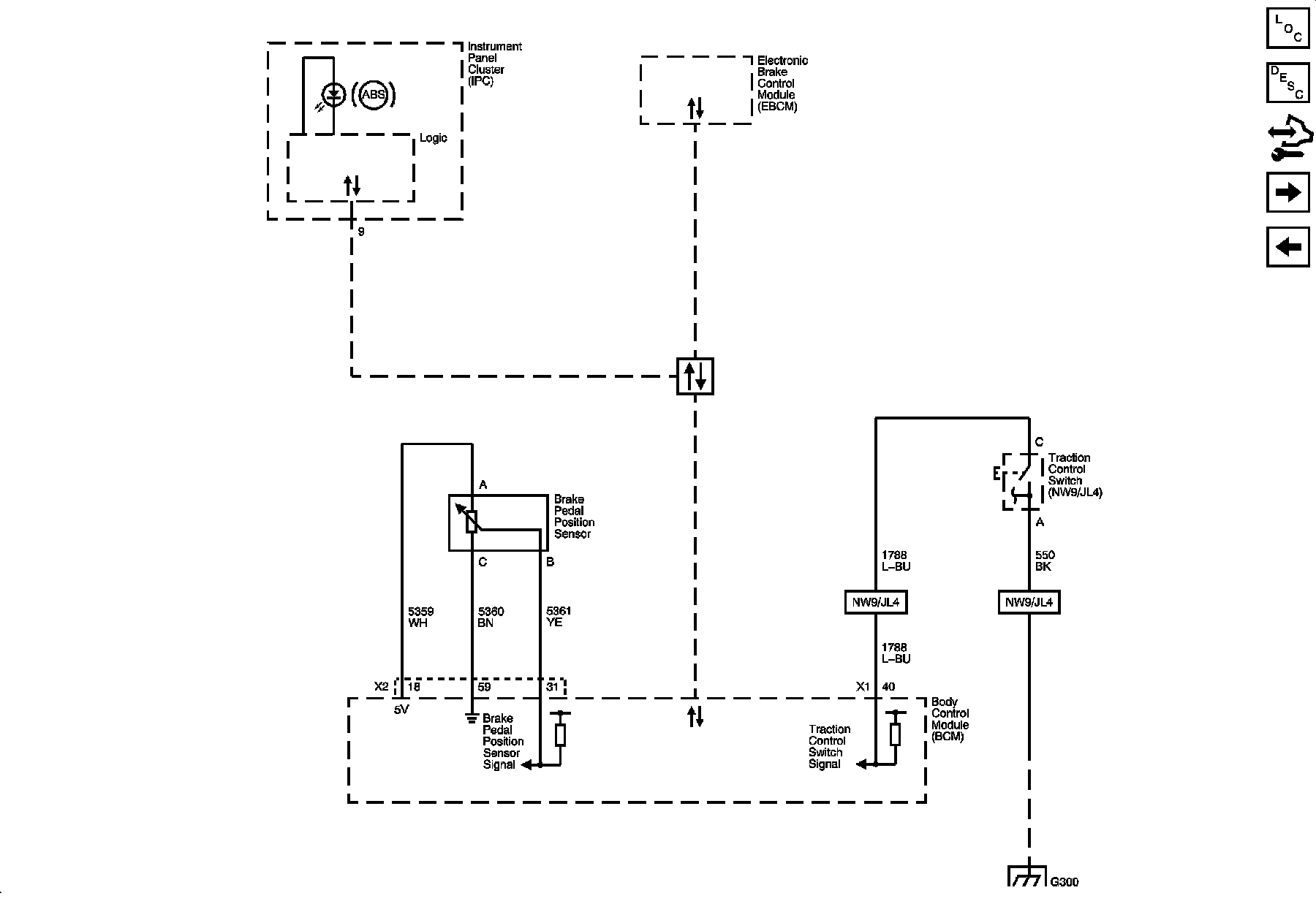

Brake Pedal Sensor, Indicator, and Traction Control Switch





Stability Control Sensors (JL4)
