Radio/Navigation System Schematics



Radio/Navigation System Schematics

Radio - UW5

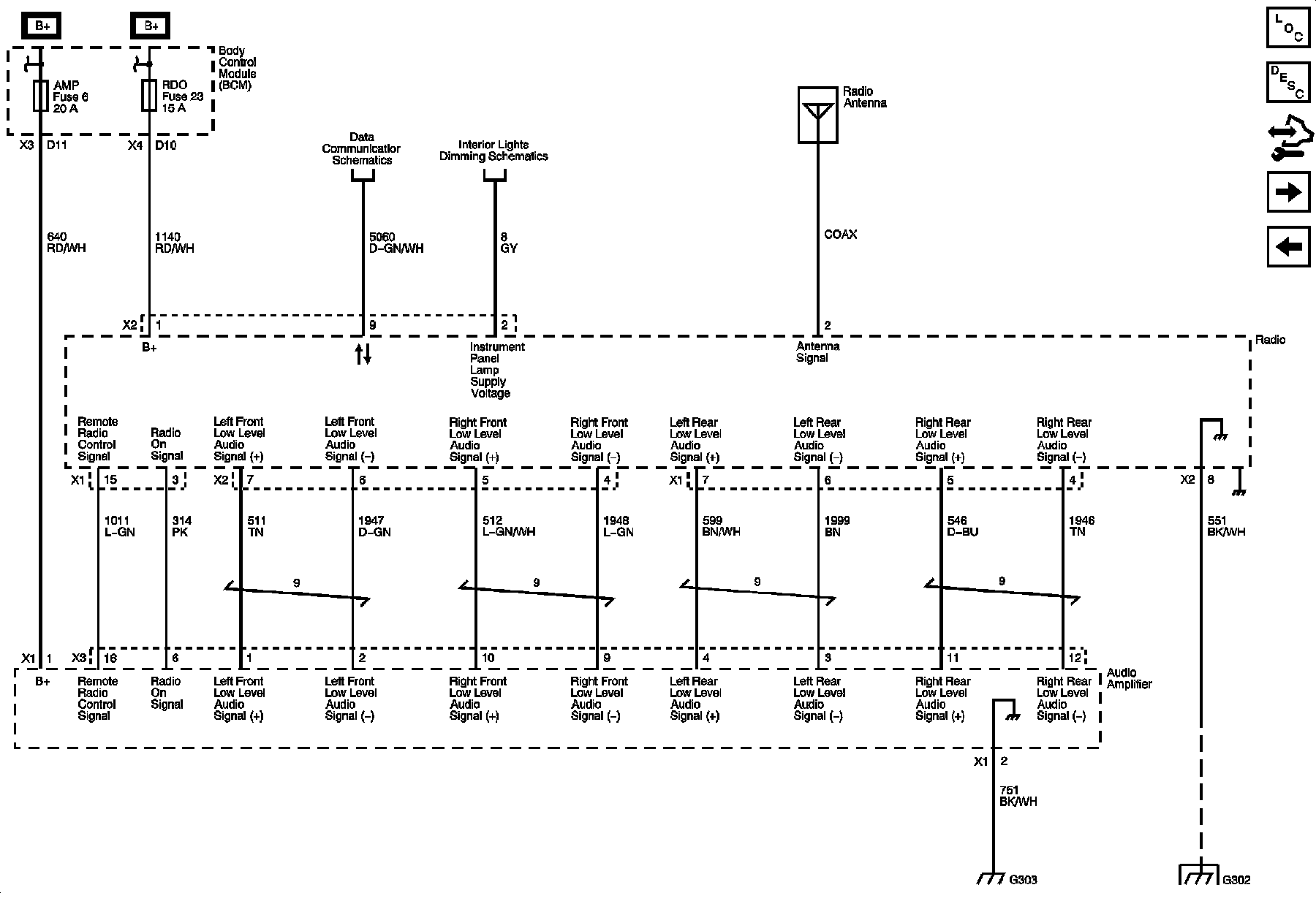

Radio Power, Ground and Communication - UQ3

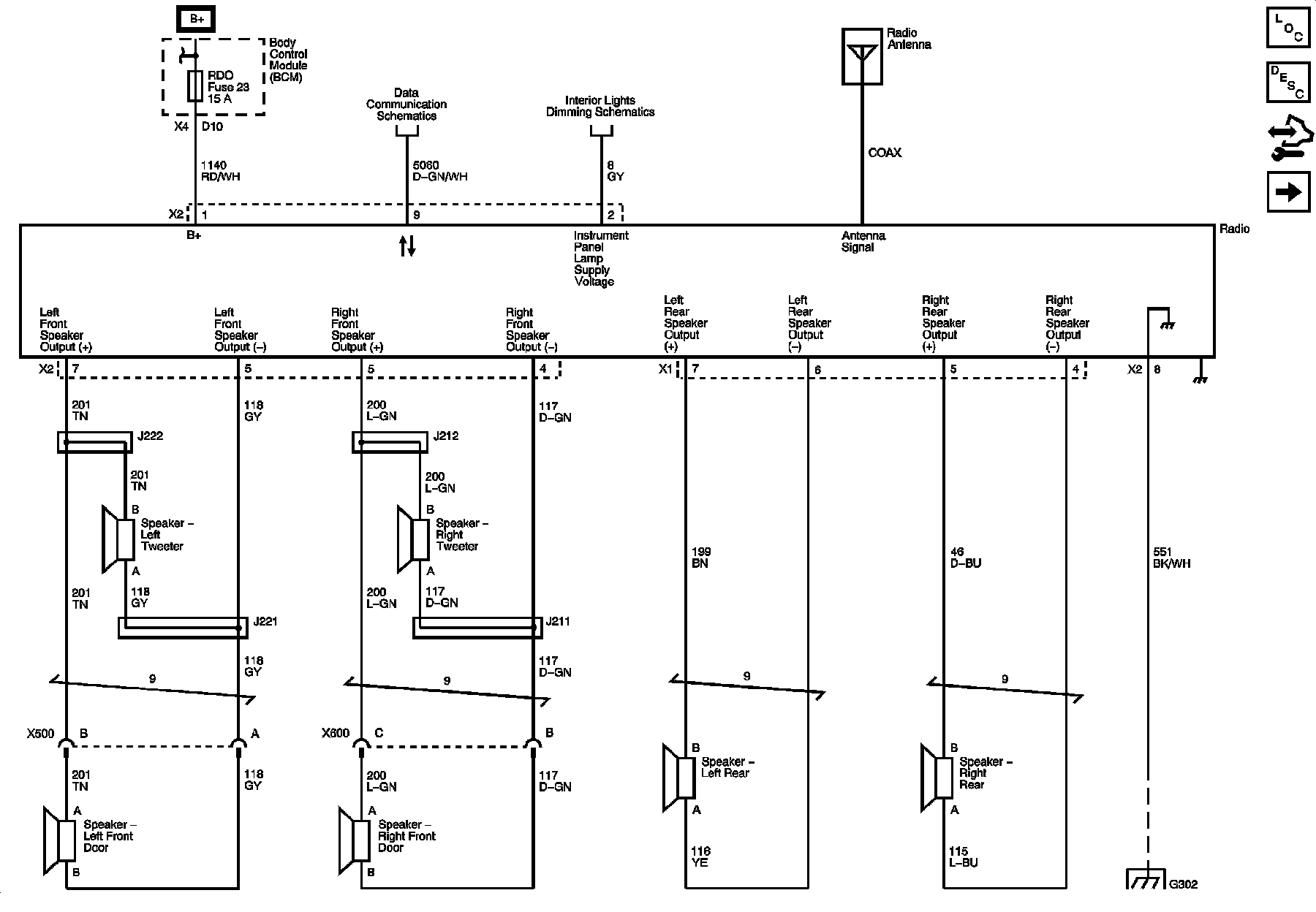

Amplifier Power, Speakers - UQ3

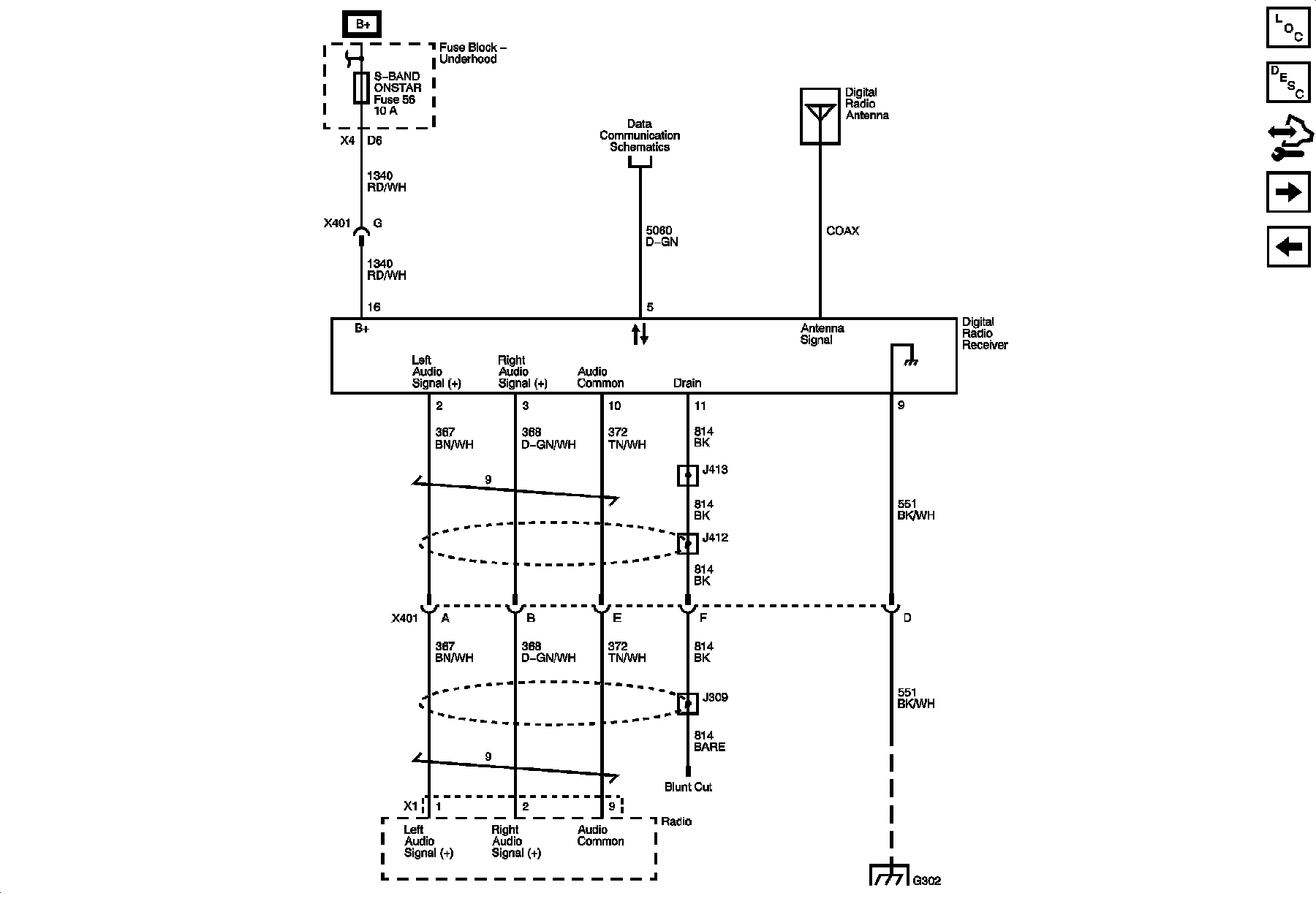

Digital Radio Receiver - U2K

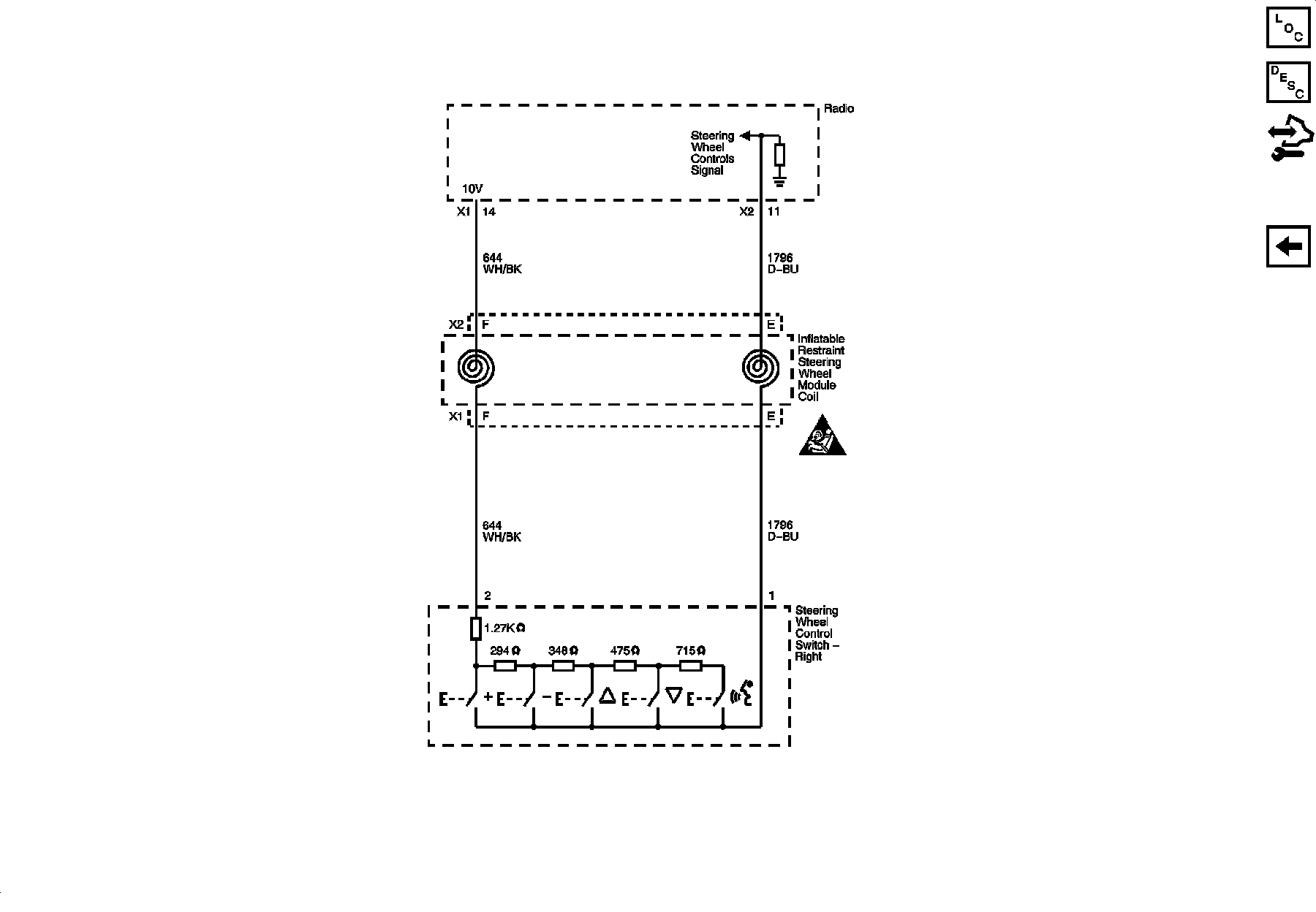

Redundant Radio Controls
