Home >> Saturn >> 2008 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Fender >> Rear Fender >> Rear Fender Liner >> Service and Repair >> Rear Wheelhouse Panel Liner Replacement

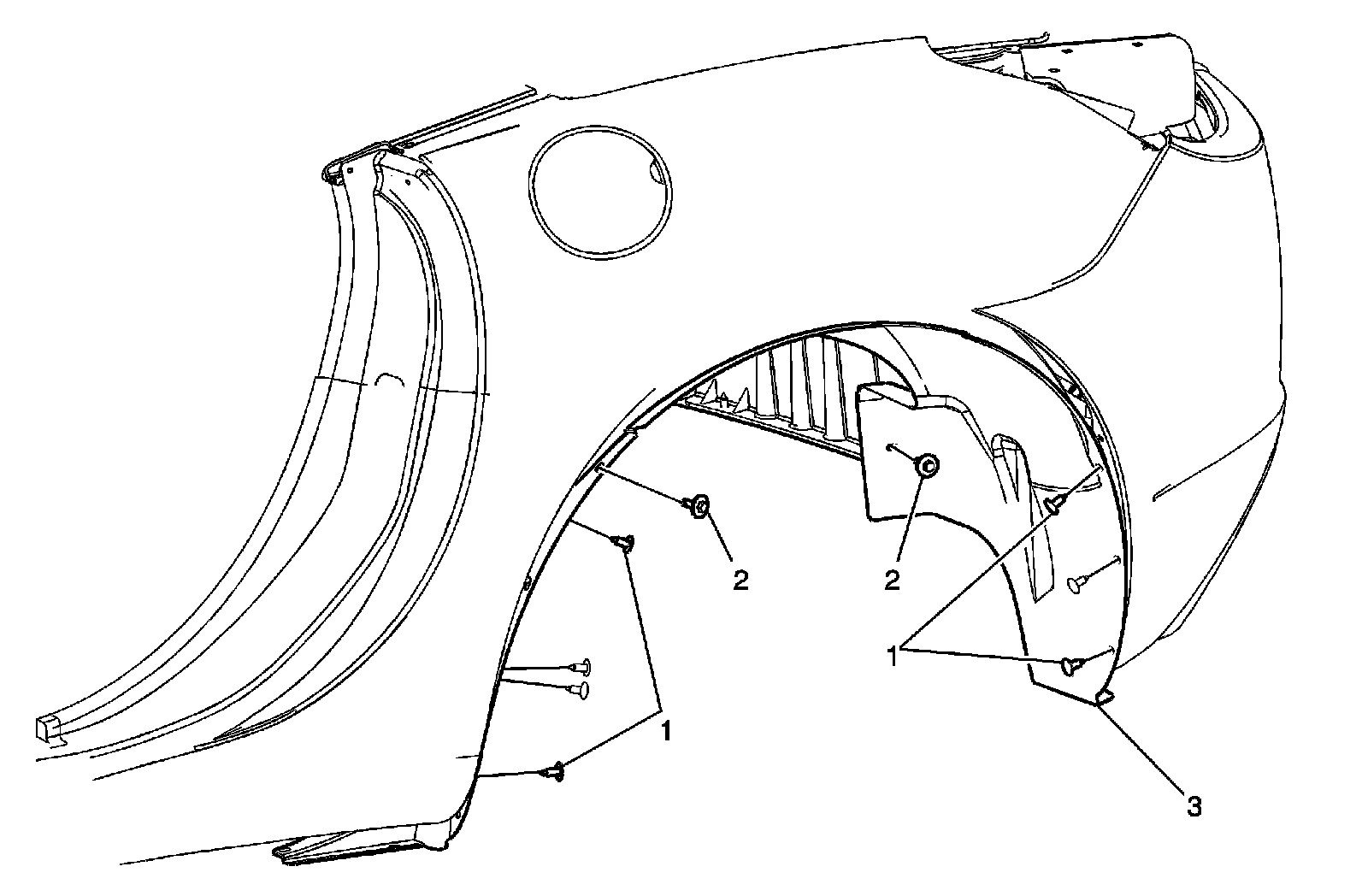

Rear Wheelhouse Panel Liner Replacement


Rear Wheelhouse Panel Liner Replacement

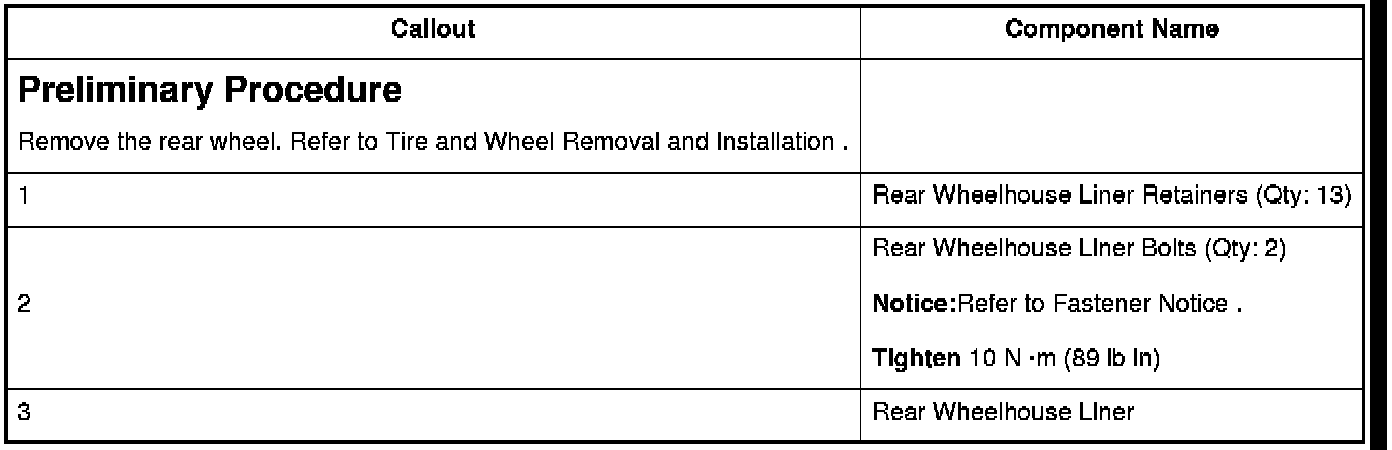

Preliminary Procedure

Notice:Refer to.
Tighten
