Front Bumper Fascia Reinforcement Replacement (Solstice)


Front Bumper Fascia Reinforcement Replacement (Solstice)

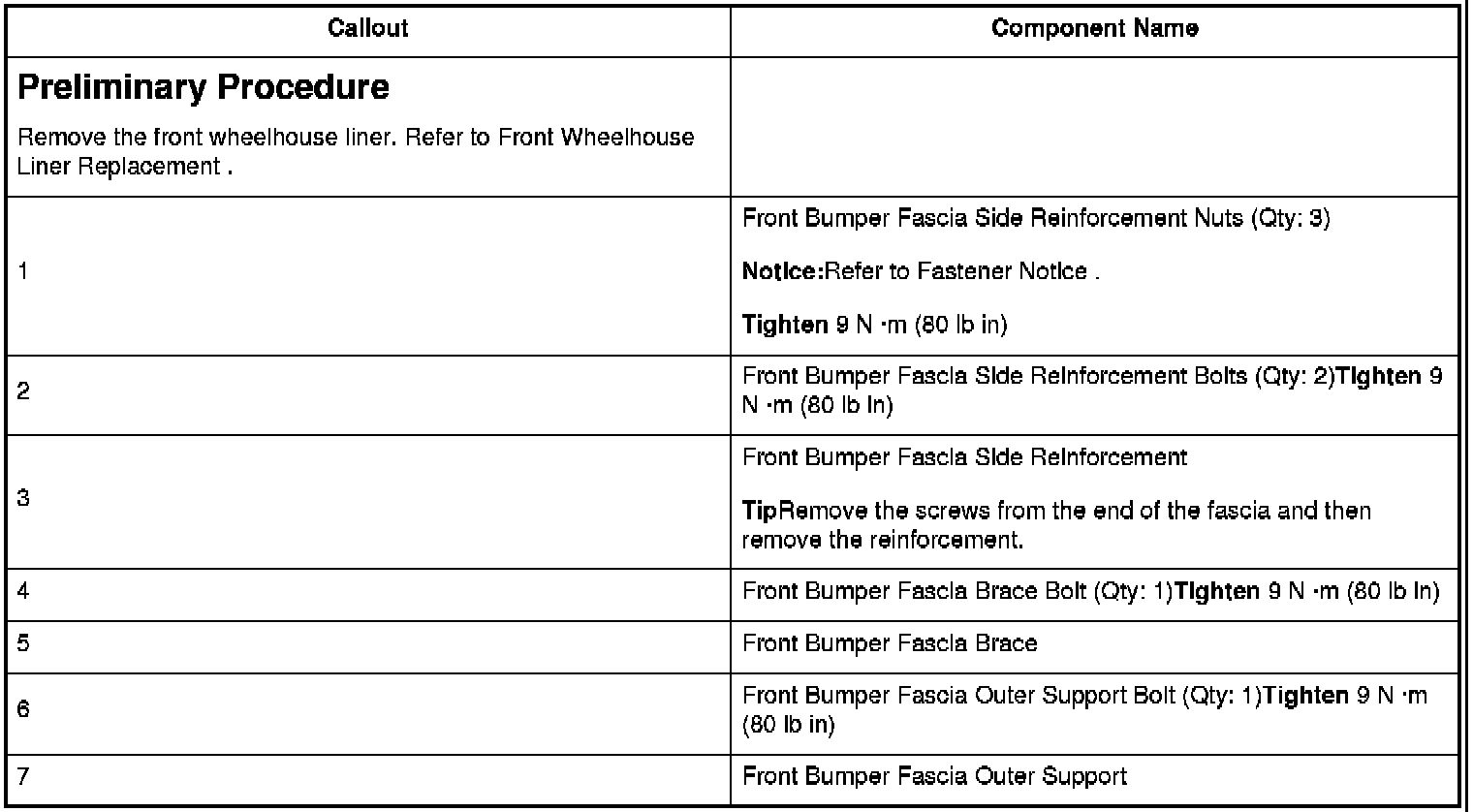

Preliminary Procedure

Notice:Refer to.
TightenTighten

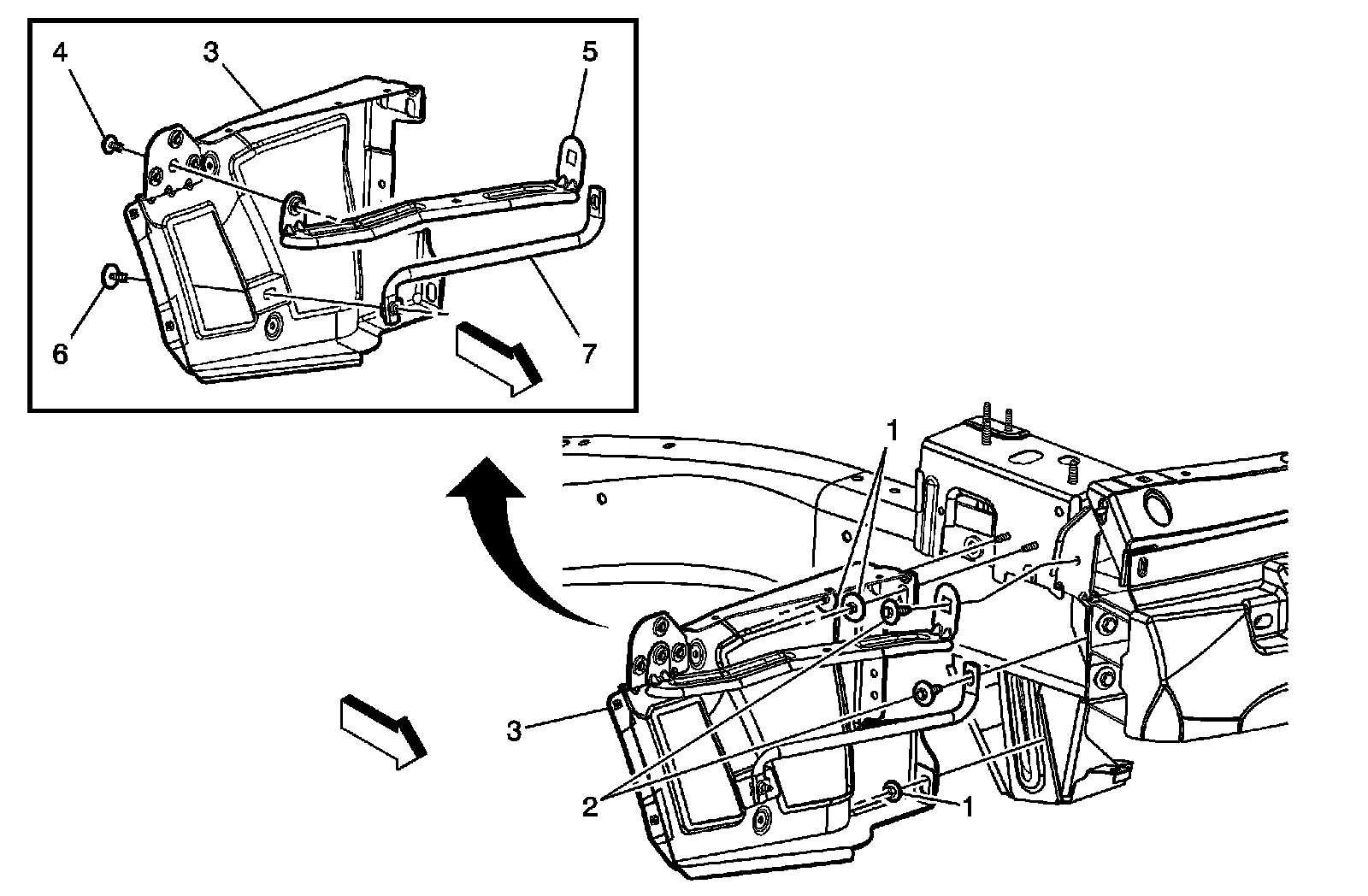

TipRemove the screws from the end of the fascia and then remove the reinforcement.
TightenTighten
