B1480

DTC B1480

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview)provides an overview of each diagnostic category.



DTC Descriptor
DTC B1480 00
- Battery Rundown Protection Circuit No Additional Information

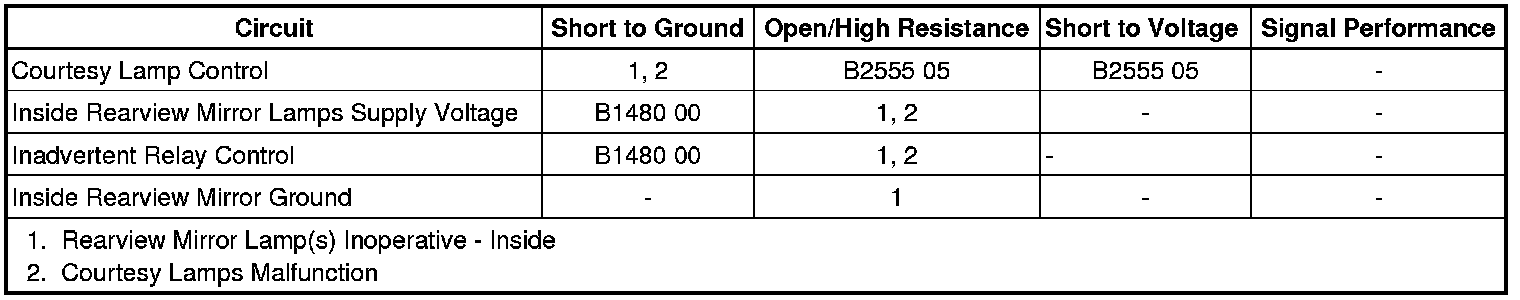

Diagnostic Fault Information






Circuit/System Description

The INT LIGHT fuse supplies battery voltage to the inadvertent load control relay located in the body control module (BCM). The BCM applies ground to the inadvertent relay control circuit which energizes the inadvertent load control relay coil. With the relay coil energized, the switch contacts close allowing battery voltage to flow from the INT LIGHT fuse to the inside rearview mirror lamps through the inside rearview mirror lamps supply voltage circuit. The inside rearview mirror lamps are controlled by a 3 position (OFF, DOOR, ON) switch. When the inside rearview mirror switch is placed in the DOOR position, the lamps are controlled by the BCM by grounding the courtesy lamp control circuit. When any door is opened, the jam switch contacts close and the BCM receives a door-open input. If the BCM receives a door lock or unlock input, the BCM will activate the inadvertent relay control circuit, providing battery voltage to the inside rearview mirror lamps. The BCM also provides ground to the inside rearview mirror lamps through the courtesy lamp control circuit.


Conditions for Running the DTC

Battery voltage must be between 9-16 volts.


Conditions for Setting the DTC

DTC B1480 will set when the courtesy lamps voltage supply circuit is shorted to ground for 1 second or greater.


Actions Taken When the DTC Sets

The courtesy lamps will not operate.


Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.
* You issue a scan tool CLEAR DTCs command.
* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.



Reference Information
Schematic Reference

Interior Lights Schematics (Interior Lights Diagrams)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Interior Lighting Systems Description and Operation (Interior Lighting Systems Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning)


Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the inside rearview mirror.
2. Ignition ON, verify that a test lamp illuminates between the inside rearview mirror lamps supply voltage circuit and ground.

• If the test lamp does not illuminate, test the supply voltage circuit for a short to ground or an open/high resistance. If the circuits test normal, replace the BCM.

3. Connect the inside rearview mirror harness connector.
4. Verify with a scan tool that the DTC does not reset as current.
5. If the DTC resets, test or replace the inside rearview mirror.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Inside Rearview Mirror Replacement (Inside Rearview Mirror Replacement)
* Control Module References (Programming and Relearning)for BCM replacement, setup, and programming
