B1325

DTC B1325

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.



DTC Descriptors
DTC B1325 03
- Device Power 1 Circuit Voltage Below Threshold


DTC B1325 07
- Device Power 1 Circuit Voltage Above Threshold


DTC B1325 4A
- Device Power 1 Circuit Checksum Error

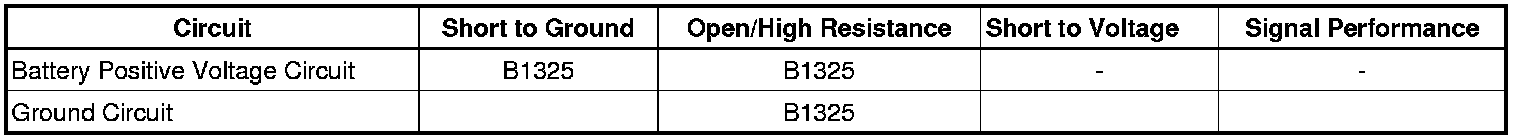

Diagnostic Fault Information






Circuit/System Description

The control modules on this vehicle monitor the battery voltage through the battery positive voltage circuits. This vehicle has multiple modules that will set the DTC. For more information on which modules, refer to Diagnostic Trouble Code (DTC) List - Vehicle (Diagnostic Trouble Code Descriptions) .


Conditions for Running the DTC

* The voltages supplied to the control modules are in the range of 7-26 volts.
* The ignition is ON.
* The engine is running.



Conditions for Setting the DTC

B1325 03

The control module detects a system voltage below the calibrated value usually 9 volts for at least 5 seconds.

B1325 07

The control module detects a system voltage above the calibrated value usually 18 volts for at least 5 seconds.

B1325 4A

The instrument panel cluster (IPC) failed the power on checksum test, either due to low voltage or corrupted memory


Action Taken When the DTC Sets

* The control module immediately disables all outputs when an out of range voltage condition has been detected, with the exception of GMLAN and Run/Crank relay that are disabled after a 3 minute delay.
* The setting of other DTCs is inhibited.



Conditions for Clearing the DTC

The DTC clears when the system voltage returns to a normal range.


Reference Information
Schematic Reference

Control Module References (Programming and Relearning)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Charging System Description and Operation (Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information


Diagnostic Aids

* A low voltage DTC in multiple modules indicates a concern in the charging system.
* A possible cause of this DTC could be overcharging with a battery charger or jump starting.
* A high voltage value in multiple modules indicates a concern in the charging system.



Circuit/System Verification

1. Engine running measure and record the voltage at the battery terminals. Verify that the battery voltage is 12.5-15.5 volts.

• If the battery voltage is not within the specified range, refer to Charging System Test (Solstice) (Charging System Test)Charging System Test (SKY) (Charging System Test)

2. Engine running, observe the scan tool Battery Positive Voltage parameter in the data list of the module setting the DTC. Verify that the scan tool displays a value that is within 2 volts of the battery voltage recorded in step 1.

• If the scan tool parameter is not within the specified range, go to Circuit/System Testing.

3. Go to Diagnostic Aids.



Circuit/System Testing

1. Ignition OFF. Disconnect the harness connectors of the module that set the DTC. Verify that there is less than 1.0 ohm between the ground circuit and the negative battery terminal.

• If greater than the specified value, test the ground circuit for an open/high resistance.

2. Ignition ON. Test for 9.5-13.5 volts between the battery positive voltage and the ground circuits of the affected module.

• If not within the specified range, test the battery positive voltage circuits for a short to ground or an open/high resistance.

3. If all the circuits test normal, replace the affected module.



Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.


Control Module References (Programming and Relearning) for the affected module replacement, setup, and programming.
