B0283
DTC B0283
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.
DTC Descriptors
DTC B0283 02
- Electric Rear Defrost Circuit Short to Ground
DTC B0283 05
- Electric Rear Defrost Circuit Short to Battery or Open

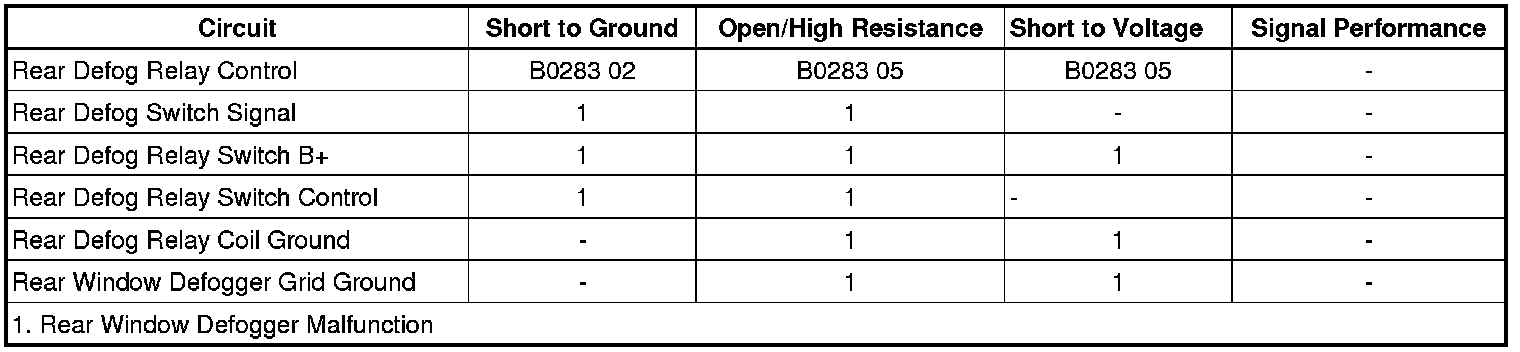

Diagnostic Fault Information
Circuit/System Description
The body control module (BCM) controls the rear window defog relay located in the underhood fuse block. The rear window defog switch located on the HVAC control module is hard wired to the BCM. The rear window defog switch provides the request signal to the BCM. With the ignition switch in the RUN position, the BCM supplies voltage to the rear window defog switch via the rear defog switch signal circuit. When the rear window defog switch is pressed, the switch contacts close and ground is supplied. The BCM interprets the flow of voltage as a request to turn the rear defogger ON. The BCM energizes the rear window defog relay by applying voltage to the relay coil via the rear defog relay control circuit. When the rear window defog relay coil is energized, the switch contacts of the rear window defog relay close allowing battery voltage to flow from the REAR DEFOG fuse through the closed switch contacts and out the relay switched output to the rear window defogger grid. Ground for the rear window defogger grid is provided at G301. The BCM also illuminates the rear defog indicator LED located on the HVAC control module with the supplied voltage from the rear defog relay control circuit.
Conditions for Running the DTC
Battery voltage must be between 9-16 volts.
Conditions for Setting the DTC
C0283 02
This DTC will set when the BCM detects a short to ground in the rear defog relay control circuits for 1 second or greater.
C0283 05
This DTC will set when the BCM detects a short to voltage or an open in the rear defog relay control circuits for 1 second or greater.
Actions Taken When the DTC Sets
* The BCM stores the DTC to memory.
* The rear window defogger will not operate.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* You issue a scan tool CLEAR DTCs command.
* A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
Defogger Schematics ([1][2]Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
Rear Window Defogger Description and Operation (Rear Window Defogger Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning)
Circuit/System Testing
1. Ignition OFF, disconnect the rear window defog relay.
2. Ignition OFF, test for less than 5.0 ohms of resistance between the ground circuit terminal 86 and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Connect a test lamp between the rear defog relay control circuit terminal 85 and ground.
4. Command the rear defog relay ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.
• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the BCM.
• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the BCM.
5. If all circuits test normal, test or replace the rear window defog relay.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center))
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
