Front Side Door Window Stop Bumper Replacement

Front Side Door Window Stop Bumper Replacement

Removal Procedure

Caution: Refer to Express Down Feature Caution (Service Precautions) .
1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Sedan) (Service and Repair)Front Side Door Trim Panel Replacement (Coupe) (Service and Repair) .

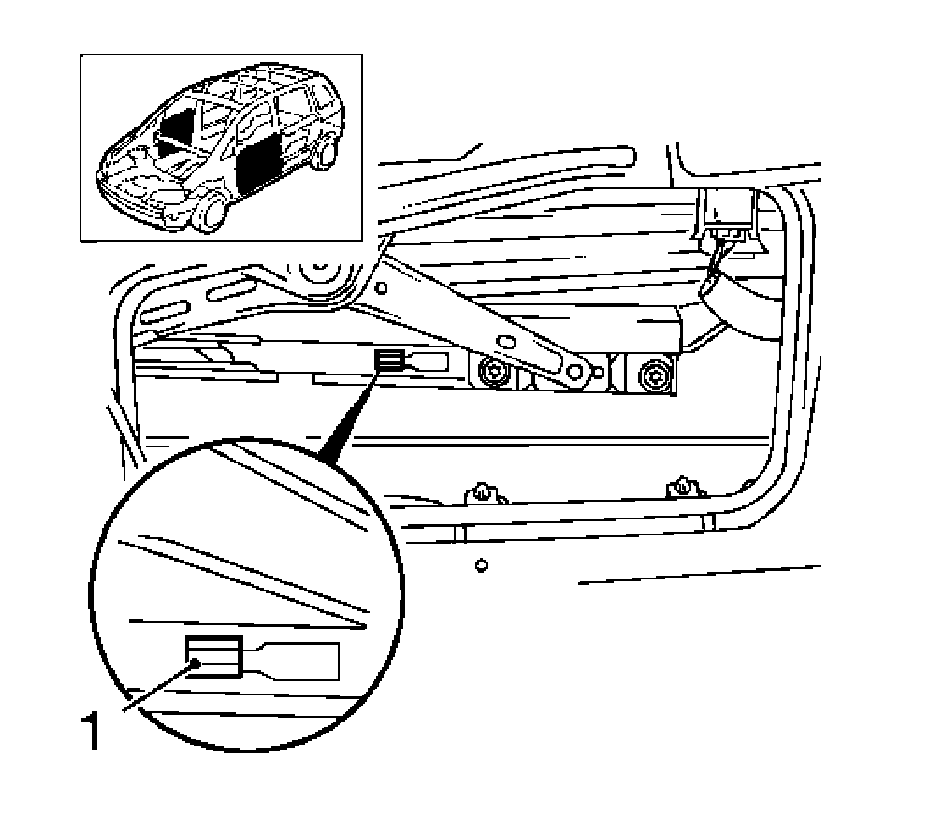

2. Remove the window stop bumper (1).



Installation Procedure

1. Install the window stop bumper.
Insert into the guide.
2. Install the front side door inner trim panel. Refer to Front Side Door Trim Panel Replacement (Sedan) (Service and Repair)Front Side Door Trim Panel Replacement (Coupe) (Service and Repair) .
