Front Side Door Window Belt Inner Sealing Strip Replacement (Coupe)

Front Side Door Window Belt Inner Sealing Strip Replacement (Coupe)

Removal Procedure

Caution: Refer to Express Down Feature Caution (Service Precautions) .
1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Sedan) (Service and Repair)Front Side Door Trim Panel Replacement (Coupe) (Service and Repair) .

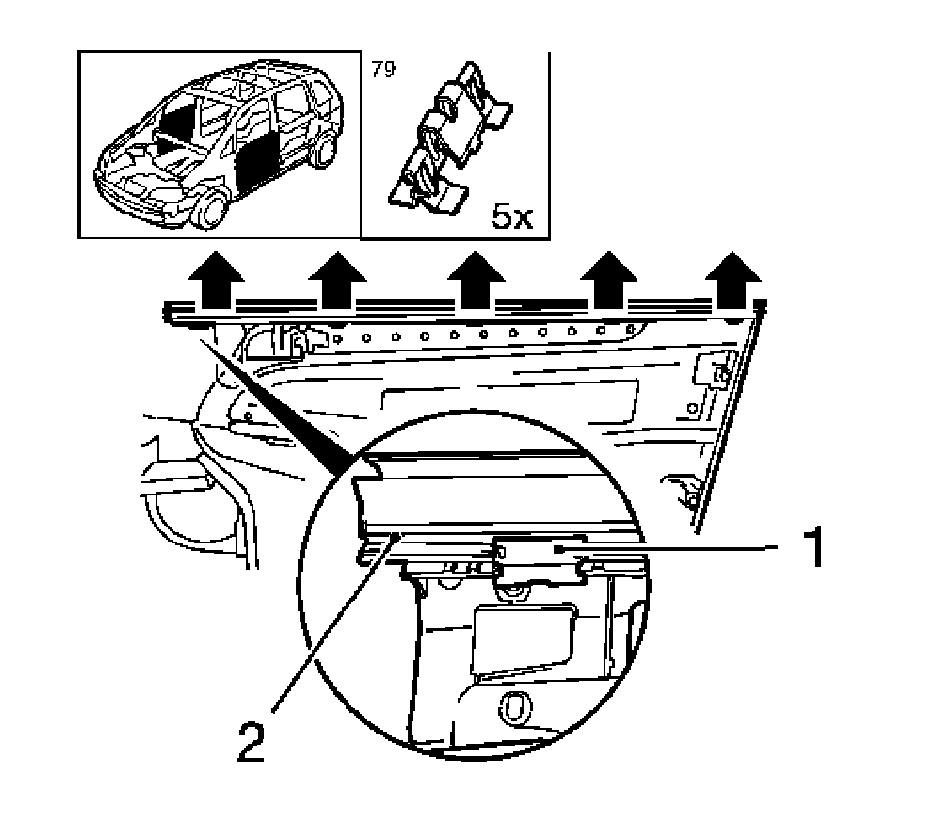

2. Remove the window belt inner sealing strip on inside of front door (2).
Remove the 5 retaining clamps (1).



Installation Procedure


Important: Observe the installation position.


1. Install the window belt inner sealing strip on inside.
Install the 5 retaining clamps.
2. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Sedan) (Service and Repair)Front Side Door Trim Panel Replacement (Coupe) (Service and Repair) .
